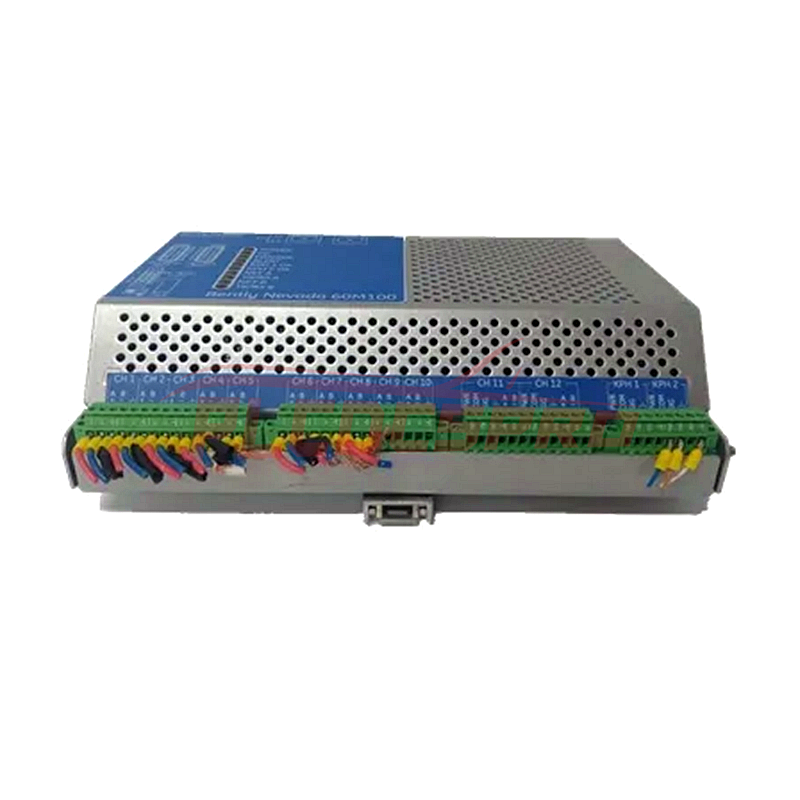

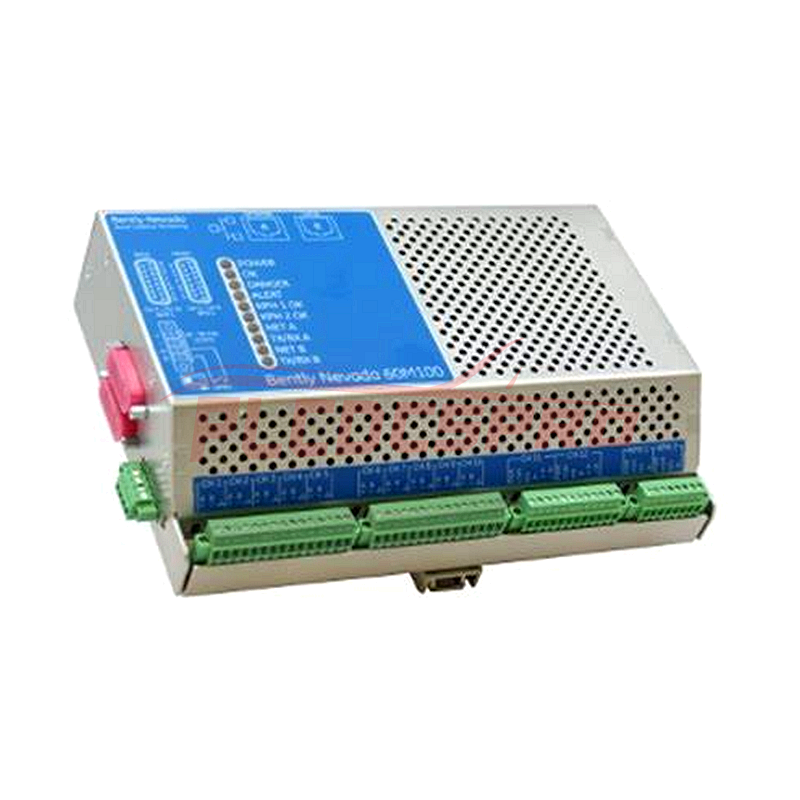

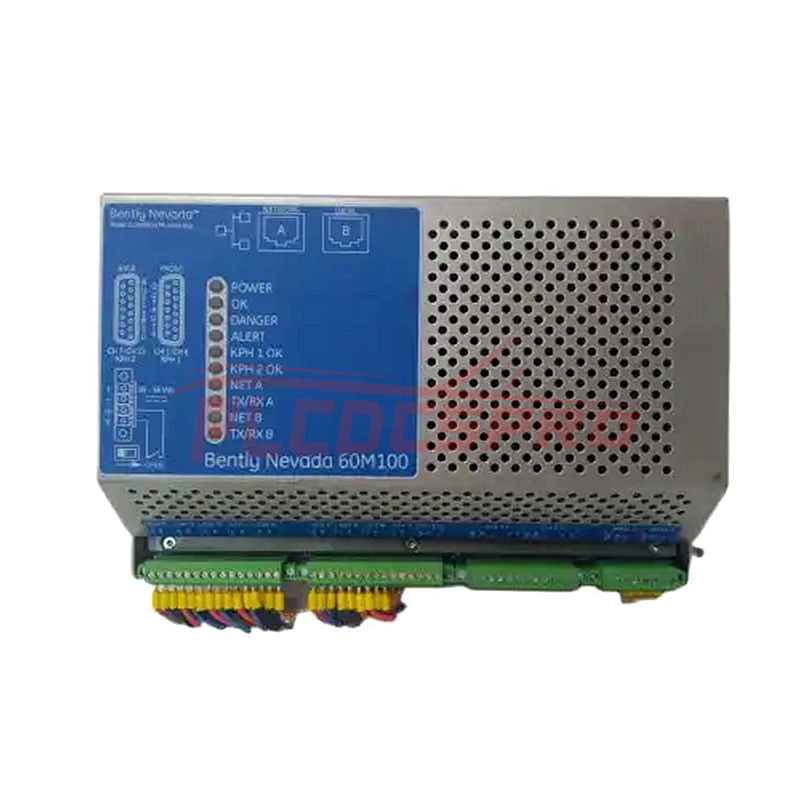

The 60M100 Condition Monitoring System is specifically designed for continuous, permanent monitoring of wind turbine generator machine trains. It ensures extremely high reliability and availability for equipment monitoring.
Key Monitoring Aspects
Tower Sway
Main Bearing
Main Rotor
Gearboxes
All internal bearings
All gear meshes
Debris monitoring
Generator Bearings
Generator Grounding
Specifications
Feature
Description
Input Power
Min: 18 VDC, Max: 36 VDC
Current
Max: 1.7 A
Inrush Current
Max: 2.7 A, less than 5 ms
Module Inputs
Max: 12 dynamic signals and 2 Keyphasor signals
Dynamic Range
110 dB @ fs = 102.4 ksps
Signal/Noise Ratio
110 dB @ fs = 102.4 ksps
A/D Conversion
Sigma-Delta 24 bits nominal
Bandwidth
0 to 40 kHz
Outputs
Two independent Ethernet ports
Ethernet Ports
Net A: 10/100 BaseT (Network DHCP Port)
Net B: 10/100 BaseT (Local Static IP Port)
Buffered Signal Outputs
Two 15-pin DSUB connectors, 550 ohm output impedance
Functionality
Continuous Monitoring: Provides real-time monitoring for critical components of wind turbines.
High Reliability: Designed for equipment requiring high availability and reliability.
Comprehensive Monitoring: Covers key aspects including tower sway, bearings, gearboxes, and generator components.
