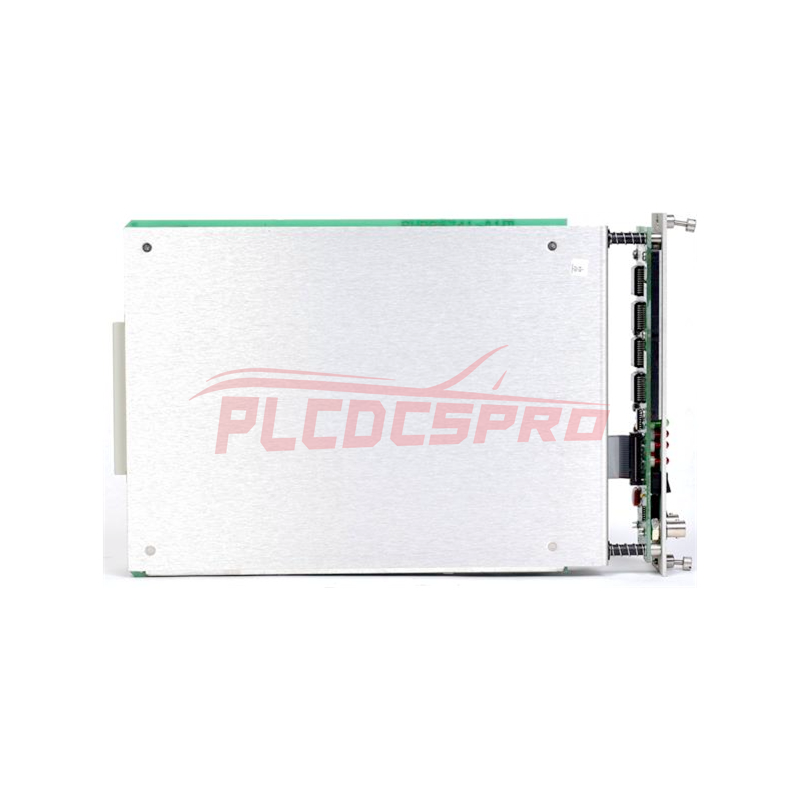

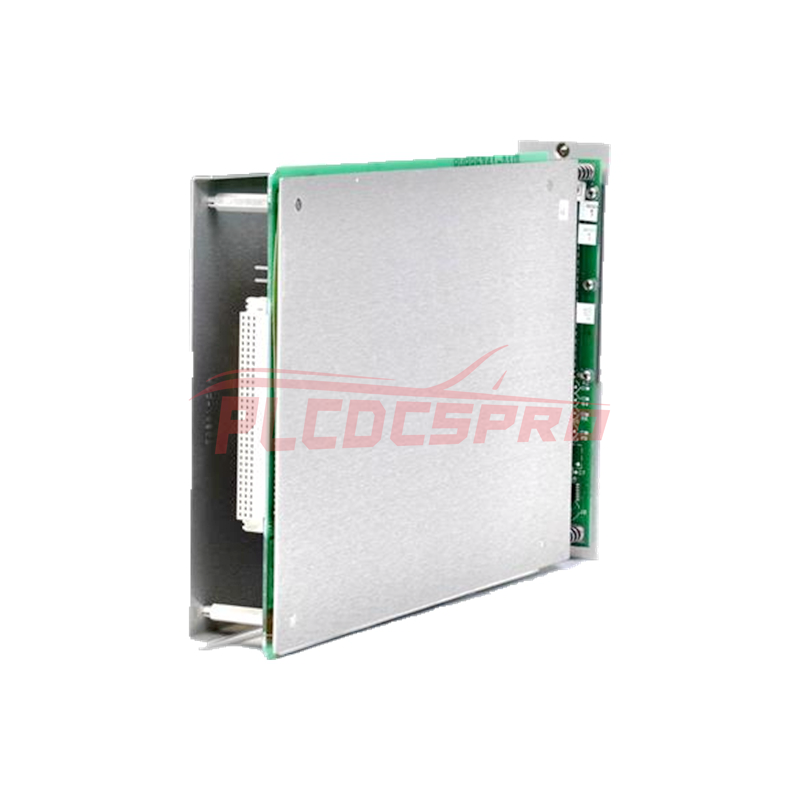

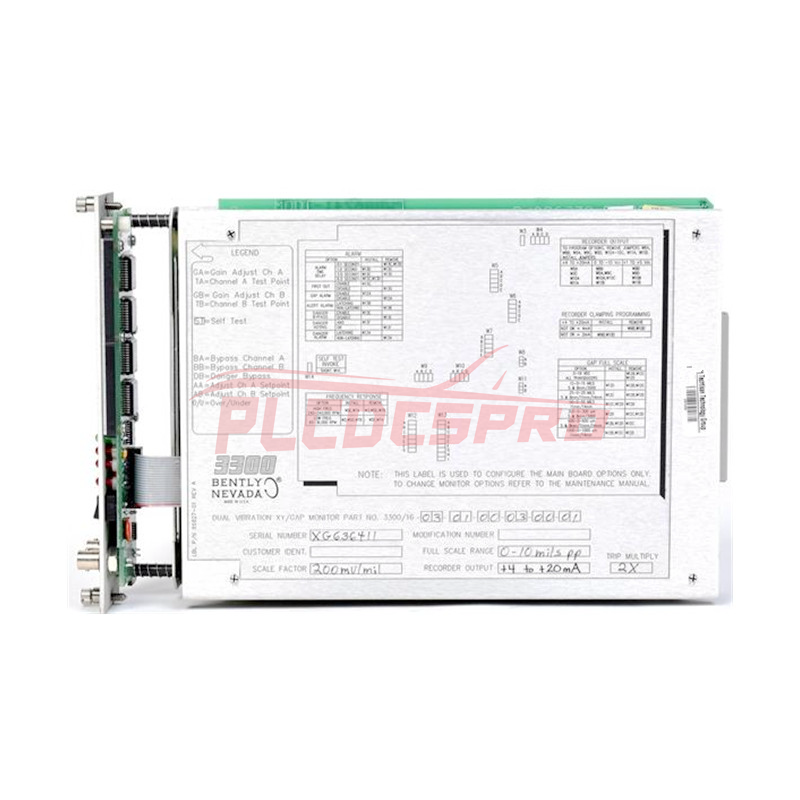

The 3300/16 XY/Gap Dual Vibration Monitor is a continuous monitoring system capable of measuring and monitoring two independent channels of radial vibration and average shaft position (gap). It accepts inputs from two proximity probe/Proximitor® systems. This monitor replaces the 3300/15 Dual Radial Vibration Monitor and includes radial position gap alarms.
Specifications
Signal Inputs
Accepts one or two proximity probe signals.
Input Impedance: 10 kΩ.
Sensitivity: User-programmable to 100 mV/mil (4 V/mm) or 200 mV/mil (8 V/mm).
Power Consumption
Nominal: 2 watts.
Signal Conditioning
Accuracy: Within ±0.33% of full-scale typical, ±1% maximum.
Frequency Response: User-programmable for 4 to 4,000 Hz (240 to 240,000 cpm) or 1 to 600 Hz (60 to 36,000 cpm); -3dB nominal.
Recorder Outputs
User-programmable for +4 to +20 mA, 0 to -10 Vdc, or +1 to +5 Vdc.
Recorder Accuracy: Dependent on signal conditioning accuracy.
Buffered Transducer Outputs
Output Impedance: Short circuit protected.
Transducer Supply Voltage: User-programmable in power supply for -24 Vdc or -18 Vdc.
Alarm Setpoints
Resolution: Digitally adjustable from 0 to 100% of full-scale.
Repeatability: Within ±0.39% of full-scale.
Gap Alarm Time Delay: 6 seconds.
Relays
One alarm relay module can be installed behind each monitor.
Displays
Non-multiplexing vertical bargraph type Liquid Crystal Display (LCD).
Resolution: Within ±1.6% of monitor full-scale.
LED Indicators: Includes OK, Alarm, and Bypass indicators.
