Automation Analog Output | Allen Bradley 1771-OFE2 Module
Sku:1771-OFE2
Country Of Origin: USA
Vendor: Allen Bradley
Type: Analog Output Module
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Manufacturer: Rockwell / Allen-Bradley/ AB
Product No.: 1771-OFE2

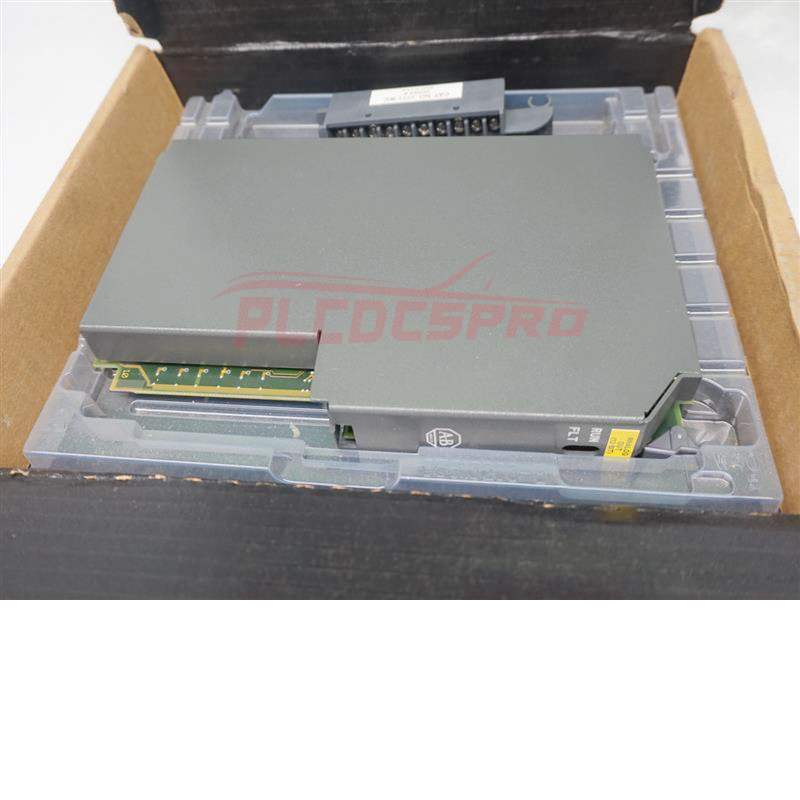

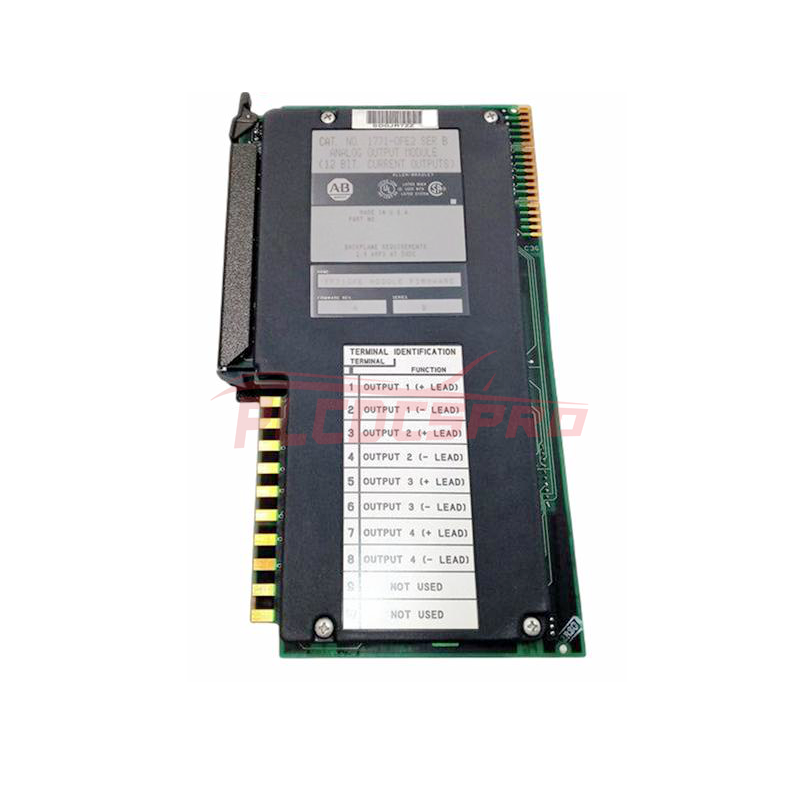

The Allen-Bradley 1771-OFE2 is an analog output module featuring four individually isolated channels delivering a 4-20 mA output signal. It's commonly used for controlling devices like Variable Frequency Drives (VFDs) and Valves, as well as for implementing PID control loops. The module can transmit signals to instruments like Signal Isolators and data loggers.
Key Features:
Four isolated analog output channels
4-20 mA output signal
Suitable for controlling Final Control Elements (FCE) and implementing PID control loops
Compatible with devices like VFDs, Dampers, Louvers, and Valves
Can transmit signals to measuring and recording instruments
Installation:
Fits into any 1771 I/O chassis, occupying a single slot
Utilizes the 1771-WC field Wiring arm
Each channel has 850 VDC isolation for 1 second
DAC settling time: maximum of 0.8 ms
Backplane current draw: 1.50 Amperes
Power dissipation: 7.9 Watts
Thermal dissipation: 26.9 BTU/hr
Recommended wiring: 12 Gauge stranded or solid wire with 3/64 inch (1.2 mm) insulation thickness, Belden 8761 cable
Module keying: set at 10 and 12 / 26 and 28 during installation
Wire terminations: tighten with 7-9 lbs/in force
Additional Details:
Individual channel isolation: 1000 Volt differential outputs
Power requirement: 1.4A at 5 Volts from the I/O chassis backplane (no external supply needed)
Channel update time: 8 milliseconds per 4 channels for BCD, 1.6 milliseconds per 4 channels for Natural Binary
Includes a wiring arm for easy replacement without disconnecting wires
Keying bands must be snapped between pins 10-12 and 26-28 for slot fixation
Can convert raw data into engineering units (e.g., degrees Celsius, degrees Fahrenheit, gallons/minute, pounds/square inch)

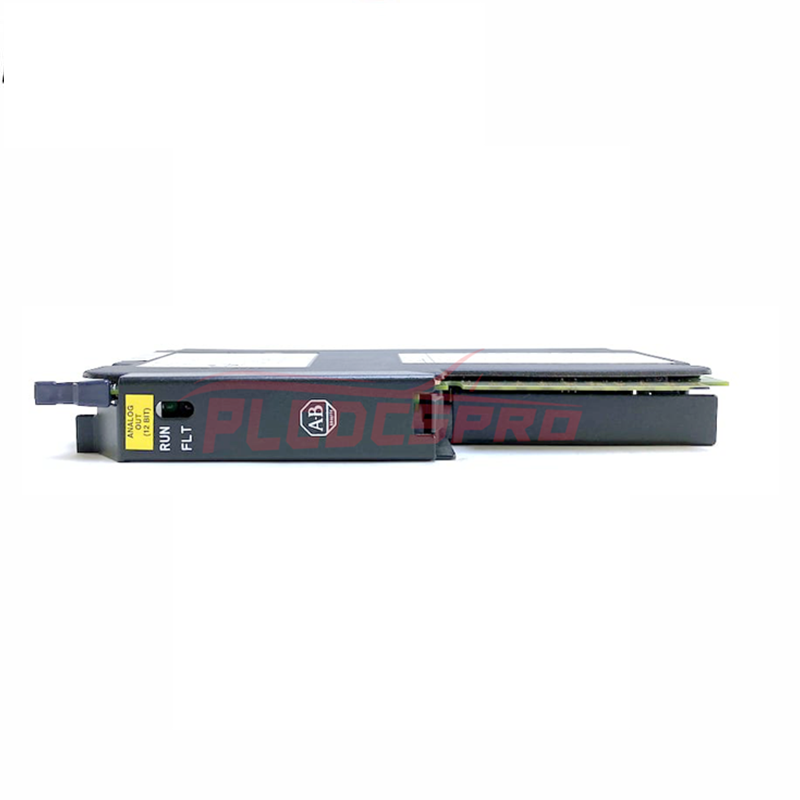

Self-check at startup for diagnostics; fault indicated by red LED, green LED remains off
Optoelectrical isolation: 1500 Volts to protect against overvoltage.
