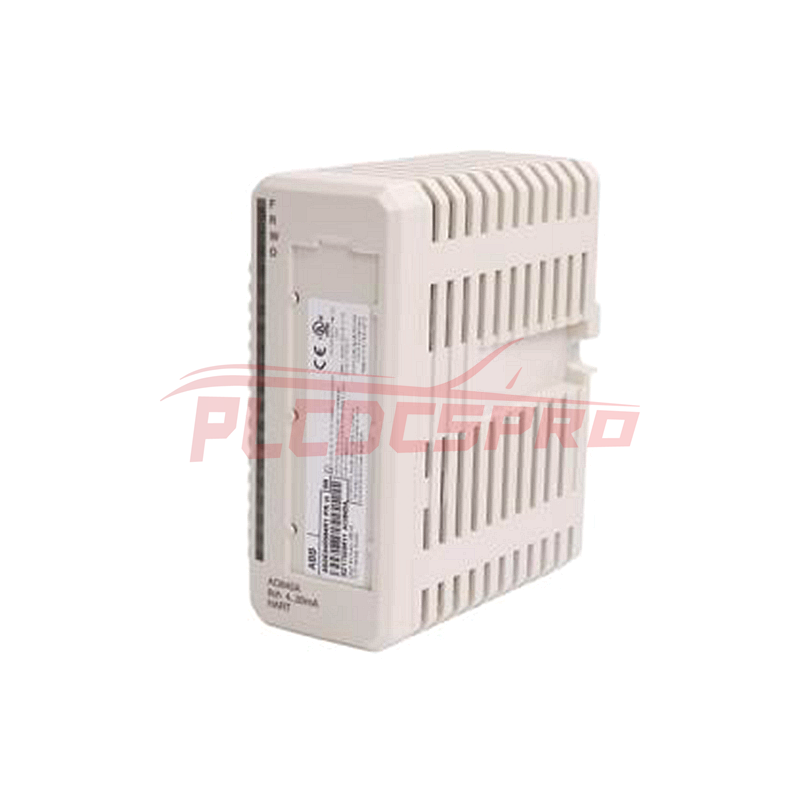

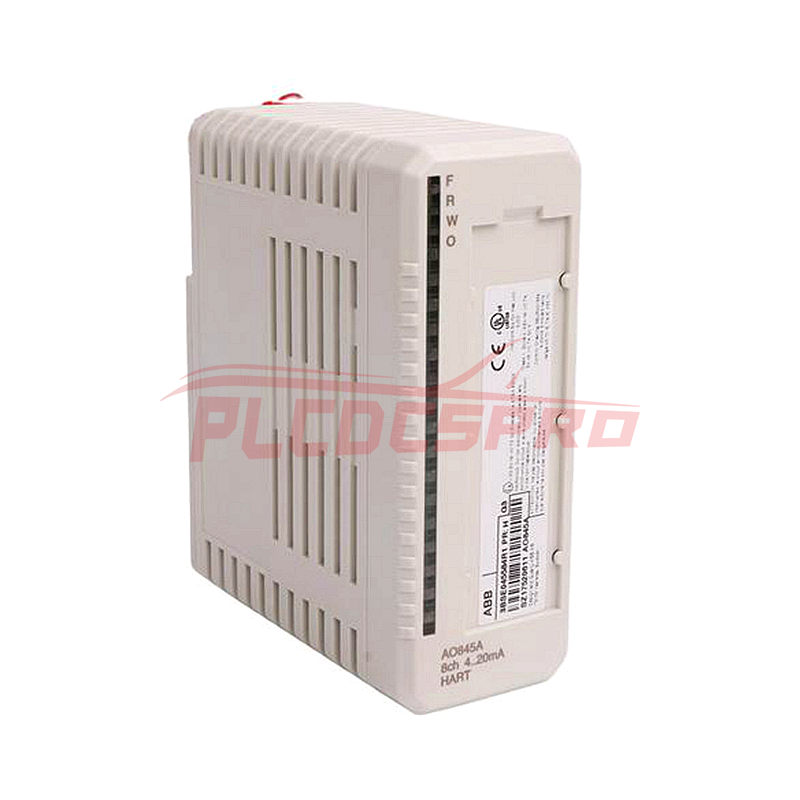

AO845A Analog Output S/R HART 8 ch ABB 3BSE045584R1
Sku:AO845A 3BSE045584R1
Country Of Origin: Sweden
Vendor: ABB
Type: Analog Output
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
General Information
Article Number: 3BSE045584R1
Type: Analog Output
Signal Specification: 4..20 mA
Number of Channels: 8
HART: Yes
SOE: No
Redundancy: Yes
High Integrity: No
Intrinsic Safety: No
Mechanics: S800
Detailed Data
Resolution: 12 bit
Isolation: Groupwise isolated from ground
Under/Over Range: -12.5% / +15%
Output Load: Max 750 Ω
Error: Max. 0.1%
Temperature Drift: Max. 50 ppm/°C
Rise Time (Output Filter): Disable 23 ms, Enable max 4 mA / 12.5 ms
Input Filter (Rise Time 0-90%): 23 ms (0-90%), max 4 mA / 12.5 ms
Update Cycle Time: 10 ms
Current Limiting: Short circuit proof current limited output
Maximum Field Cable Length: 600 meters (656 yards)
Rated Insulation Voltage: 50 V
Dielectric Test Voltage: 500 V a.c.
Power Dissipation: Typ. 3.5 W
Current Consumption +5 V Modulebus: Max. 125 mA
Current Consumption +24 V External: 218 mA
Dimensions
Width: 45 mm (1.77”)
Depth: 102 mm (4.01”), 111 mm (4.37”) including connector
Height: 119 mm (4.7”)
Weight: 0.21 kg (0.46 lbs.)
Introduction to AO845A (3BSE045584R1)
The AO845A Analog Output Module is designed for both single and redundant applications, offering 8 unipolar analog output channels. It features self-diagnostic capabilities that cyclically monitor module performance, ensuring reliable operation in industrial environments.
Module Diagnostics Include:
External Channel Error: Reported on active channels if the process power supply voltage to output circuitry is insufficient or if the output current falls below the set value (> 1 mA for open circuit).
Internal Channel Error: Reported if the output circuitry fails to provide the correct current value.
Module Error: Reported for various internal errors such as Output Transistor Error, Short Circuit, Checksum Error, Internal Power Supply Error, Status Link Error, Watchdog, or Wrong OSP behavior, especially in redundant configurations.
Features and Benefits
8 channels supporting 4...20 mA output
Suitable for single or redundant applications
Isolation of 1 group of 8 channels from ground
Short circuit protection for analog inputs to ZP or +24 V
HART pass-through communication enhances diagnostics and connectivity
