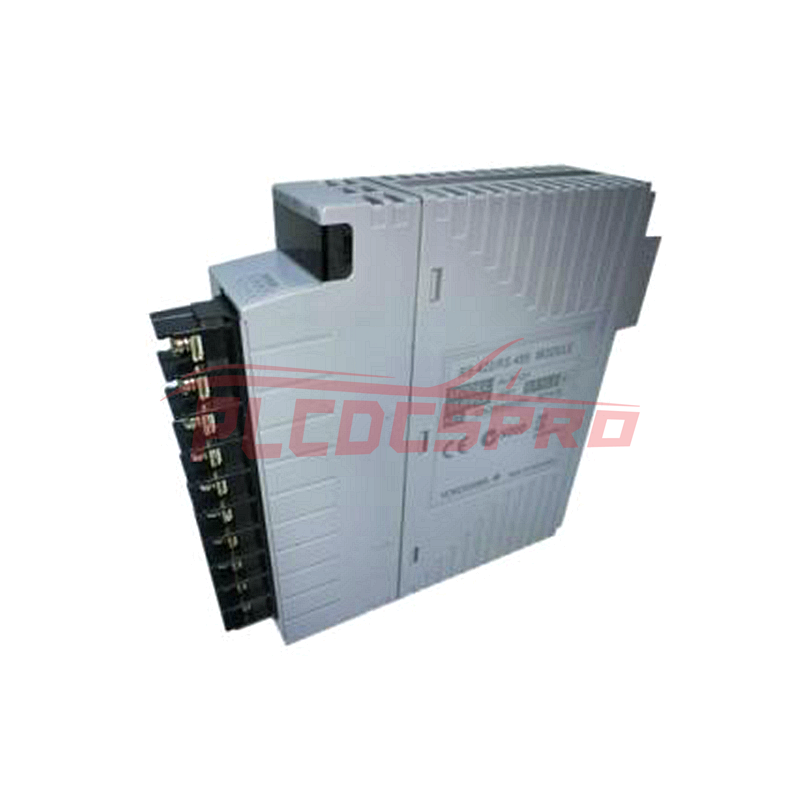

The Yokogawa ALR121-S51 is a serial communication module designed to enable a field control station (FCS) to communicate with various subsystems, including the FA-M3. It can be mounted on several Yokogawa field control units, ESB bus node units, and ER bus node units. The module supports both Modbus slave communication and subsystem communication.
Technical Specifications
Item
Specification
Interface
RS-422/RS-485 (4-wire system)
Connection Method
Point-to-point (RS-422), Multipoint (RS-485)
Communication Function
Half-duplex
Synchronization Method
Start-stop synchronization
Transmission Speed
1200/2400/4800/9600/19200/38400 bps
Transmission Code
ASCII/binary
Character Length
7/8 bits
Stop Bit Length
1/2 bits
Parity Check
None/even/odd
Lag Time After Data Transmission
1 ms
Transmission Distance
Maximum 1200 m (total extended length)
Installation Method
Mounted on ANB10□, ANB11□, ANR10□, AFF50□, AFV10□, AFV30□, or AFV40□
I/O Wiring
Refer to the instruction manual
Applications
The Yokogawa ALR121-S51 is suitable for a wide range of applications, including:
Industrial automation systems
Supervisory control and data acquisition (SCADA) systems
Building automation systems
Power distribution systems
Benefits
Increased Communication Flexibility: The ALR121-S51 supports various communication protocols and connection methods, providing a versatile solution for numerous applications.
Improved System Performance: With high transmission speeds and long transmission distances, the ALR121-S51 enhances the performance of industrial automation systems.
Cost-Effectiveness: This module offers a cost-effective solution that can help reduce the overall costs of an industrial automation system.
