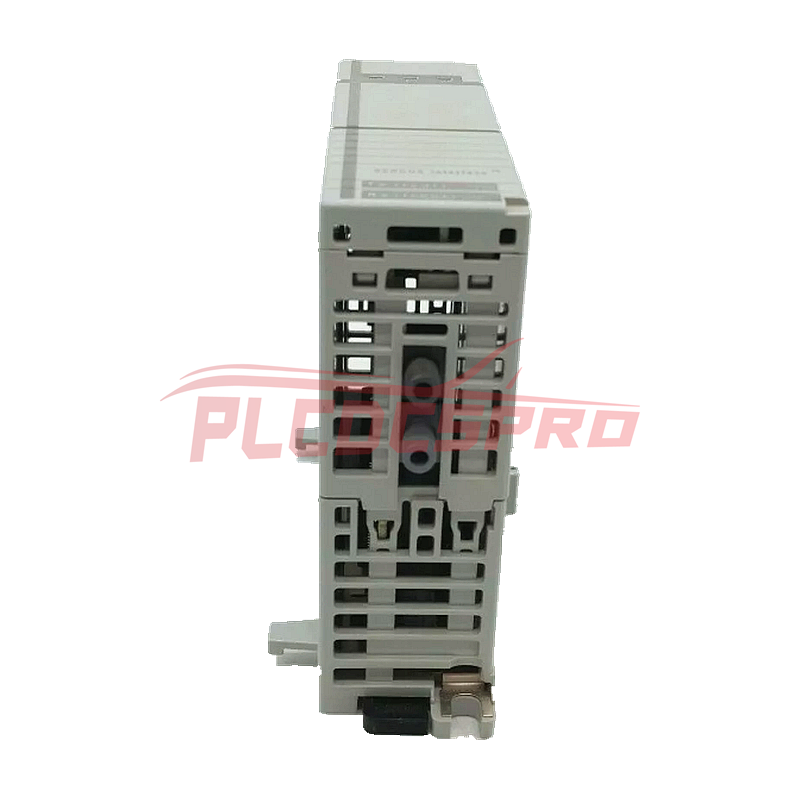

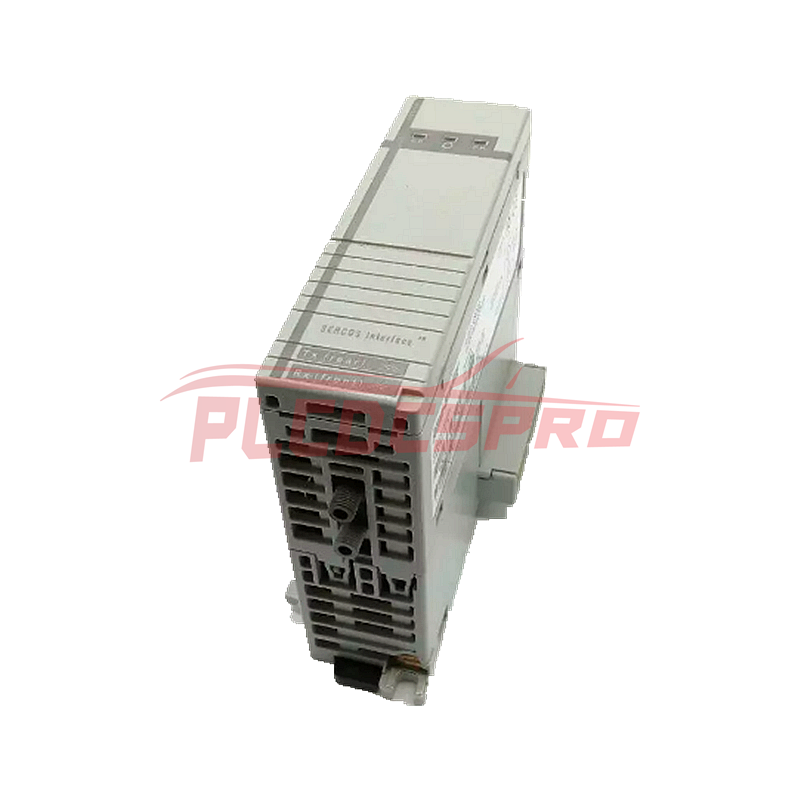

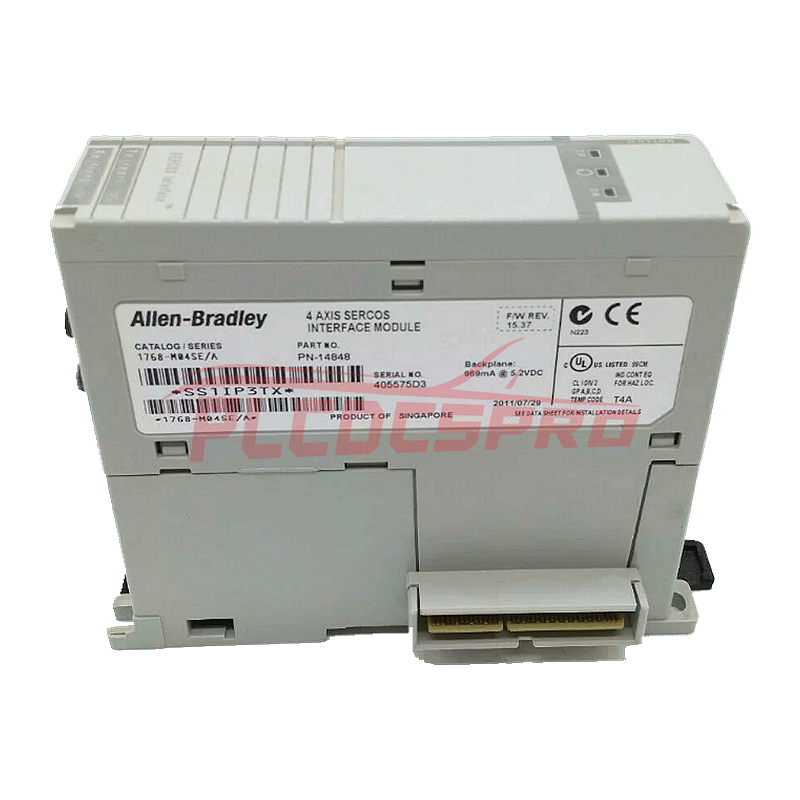

Allen Bradley 1768-M04SE CompactLogix Sercos Interface Module

Manufacturer:  Rockwell / Allen-Bradley / AB

Product No.: 1768-M04SE

The Allen-Bradley 1768-M04SE module is a CompactLogix 4-Axis SERCOS interface motion module. This SERCOS interface module is utilized by the Allen-Bradley Kinetix integrated-motion solution systems to perform complex synchronized motion across multiple axes. It allows the Kinetix system to integrate the motor, drive, and some actuators into the system with lower costs per axis of motion, eliminating the dependency on a PLC for motion control.

Compatibility:

The 1768-M04SE module is compatible with servo drive controllers like the 1768-L43 (4 axes) and the 1768-L45 (8 axes), and servo drives including the 2093 Kinetix 2000, 2094 Kinetix 6000, 2099 Kinetix 7000 high-power, and the 2098 Ultra3000 SERCOS servo drives. It supports data exchange rates of 4 Mbps and 8 Mbps with update times of 0.5 milliseconds for up to two drives and 1 millisecond for up to four drives at 4 Mbps. The module supports position or velocity drive control modes and can integrate and control up to four drives, consuming three connections.

Technical Specifications:

• Product Type: SERCOS Interface Module
• Module Location: DIN Rail or Panel Mount
• Bus Current Draw @ 5.2 VDC: 969 mA
• Slot Width: Single slot
• Fiber Optic Bend Radius:
  • Plastic cable without a jacket: 25 mm (0.98 in.)
  • Plastic cable with a standard jacket: 25 mm (0.98 in.)
  • Plastic cable with a nylon jacket: 40 mm (1.6 in.)
  • Glass cable: 30 mm (1.2 in.)
• Fiber Optic Operating Temperature:
  • Plastic cable: -55…85 °C
  • Glass cable: -20…85 °C
• Fiber Optic Core Diameter:
  • Plastic cable: 980 µm ± 60 µm
  • Glass cable: 200 µm ± 4 µm
• Fiber Optic Connector: F-SMA standard screw-type connector
• SERCOS Operating Cycle:
  • 4 M Data Rate and up to 2 drives: 0.5 ms Cycle Time
  • 4M Data Rate and up to 4 drives: 1 ms Cycle Time
  • 8 M Data Rate and up to 4 drives: 0.5 ms Cycle Time
• SERCOS Data Rate: 4 M or 8 M
• SERCOS Class: Class B (Position or Velocity)
• Connections Consumed: Three (3)
• Supported Number of Drives: Up to Four (4) drives
• Power Dissipation: 5.04 W
• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Part Number/Catalog No.: 1768-M04SE
• Product Line: CompactLogix
• Module Type: 4 Axis Sercos Interface Module
• Shipping Weight: 2 lbs.
• Shipping Dimensions: 8x8x5 in.
• Series: A and B
• Isolation Voltage: 30 Volts Continuous
• Enclosure: Open
• Backplane Current: 1.4 Amps at 24 Volts
• Power Consumption: 33.6 Watts

Installation and Usage:

The module can be mounted onto a DIN rail or a panel. Its dimensions are 132 mm x 57 mm x 105 mm (5.2 inches x 2.23 inches x 4.14 inches), and it weighs 0.2 kilograms. The 1768-M04SE is compatible with 1768 MicroLogix controllers, such as the 1768-L43 and 1768-L45 processors. If used with the 1768-L43 processor, one instance of the 1768-M04SE may be used, and two modules can be installed with the 1768-L45.

Fiber Optic Connectivity:

The module uses a fiber-optic network to connect to drives and supports various plastic and glass fiber-optic cables:

• Plastic Fiber-Optic Cables:
  • 2090-SCEPxx-0 non-jacketed
  • 2090-SCNPxx-0 nylon jacket
  • 2090-SCVPxx-0 standard jacket (chlorinated polyethylene)
• Glass Fiber-Optic Cables:
  • 2090-SCVGxx-0 standard jacket (polyvinyl chloride)
