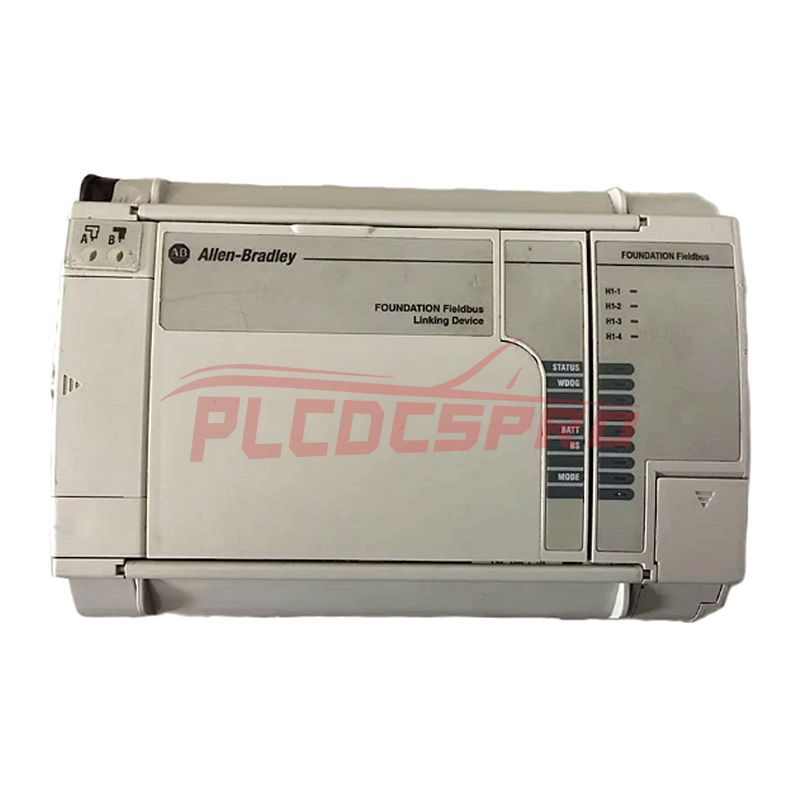

Allen-Bradley 1757-FFLDC4 ControlNet Foundation Fieldbus Linking Device
Sku:1757-FFLDC4
Country Of Origin: USA
Vendor: Allen Bradley
Type: Fieldbus Linking
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The Allen-Bradley 1757-FFLDC4 is a ControlNet Foundation Fieldbus linking device designed for industrial automation. It connects up to four Foundation Fieldbus H1 networks, allowing seamless integration of various fieldbus devices.
Features
Multiple H1 Connections: Supports four H1 Foundation Fieldbus interfaces.
ControlNet Interface: Includes one redundant ControlNet interface for enhanced communication.
Device Capacity: Can link up to 64 fieldbus devices across four H1 networks.
Manual Address Configuration: Features rotary switches for easy ControlNet address setup.
Compact Design: Suitable for DIN rail mounting or installation in NEMA Type 4/12 enclosures.
Specifications
Part Number: 1757-FFLDC4
Brand: Allen-Bradley
Series: ControlLogix
Current Rating: 450 mA
Power Supply: 24V DC (+/- 10%)
Inrush Current: 1.5 A
Power Consumption: 9.6 W
Enclosure Type: Open type
Operating Shock: 15 g
Operating Vibration: 5 g @ 10…500 Hz
Isolation Voltage: 50 V (continuous); Type tested at 500 V AC for 60 s
H1 Ports: Four (4) H1 ports
ControlNet Ports: One (1) pair of ControlNet media
Max Fieldbus Devices per H1 Network: 16 (8 to 10 recommended)
Max Fieldbus Devices per Linking Device: 64
Operating Temperature: Max 60 °C (140 °F)
Dimensions: Not specified (standard mounting compatible with DIN rail)
Installation Notes
Mounting: Uses M4 or #8 screws for panel mounting; compatible with 35 x 7.5 or 35 x 15 DIN rails.
Power Connection: Requires signal wires sized 0.2-1.5 mm² (26-16 AWG) with insulation rated for at least 75 °C (167 °F).
Fieldbus Connection: Recommended wire size is 0.8 mm² (18 AWG) solid or stranded, shielded twisted pair copper wire.
Ethernet Connection: Use Category 5e cable for establishing connections.
