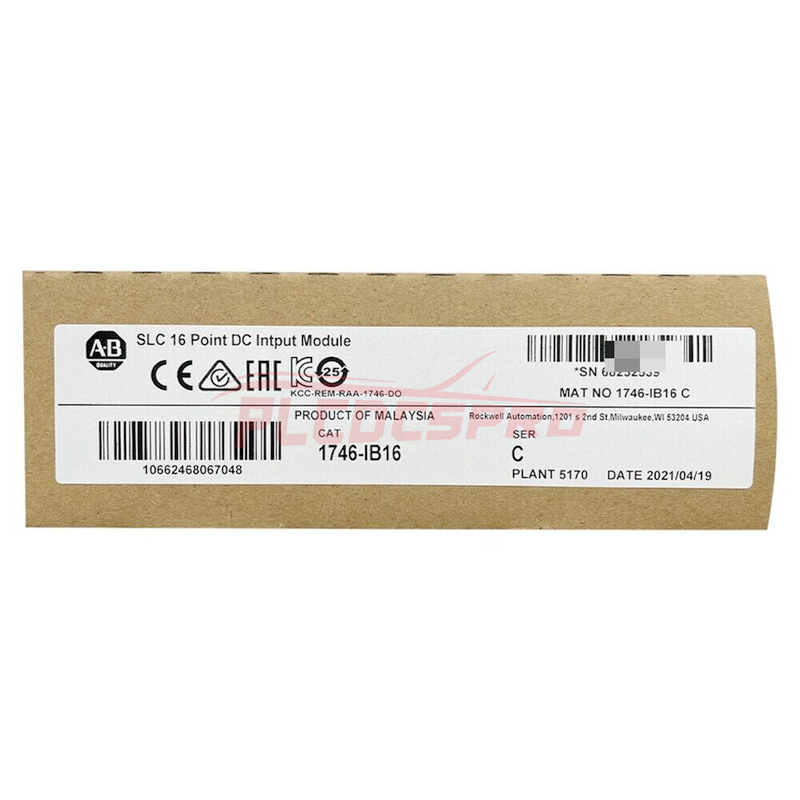

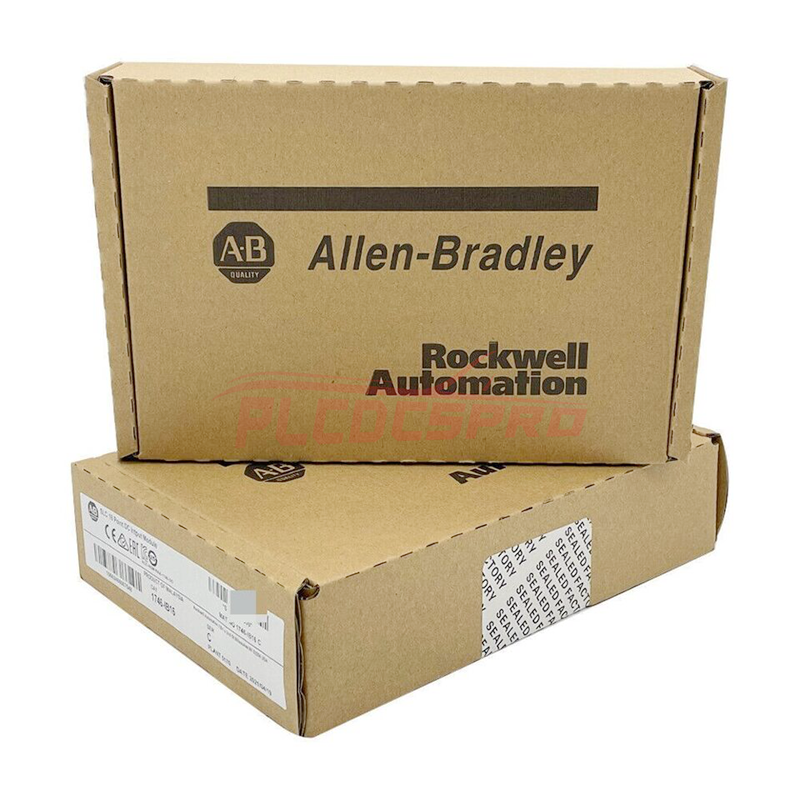

Allen-Bradley 1746-IB16 DC Input Module | SLC 500 Module
Sku:1746-IB16
Country Of Origin: USA
Vendor: Allen-Bradley
Type: DC Input
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Manufacturer: Rockwell / Allen-Bradley / AB
Product No.: 1746-IB16
The Allen-Bradley 1746-IB16 is a medium-density DC input module designed to interface with signal devices delivering a voltage range of 10-30VDC to each input channel. With sixteen (16) input channels rated for a nominal input voltage of 24VDC, it features a single input group with a common terminal. Mounted to any available I/O slot of the 1746-Chassis, it draws a backplane current of 0.05 A @ 5VDC.
Features:
Sinking wiring configuration support
Interface compatibility with switches, including limit, proximity, and pushbutton devices, as well as auxiliary contacts of relays, contactors, and other electronic devices
Common signal delay duration of 8 ms for both On and OFF transitions
Maximum OFF-state voltage of 5VDC and maximum OFF-state current of 1 mA
Nominal input current of 8 mA @ 24VDC
Installation:
The number of installation instances of the 1746-IB16 depends on the SLC500 CPU installed and the number of I/O supported by the CPU memory. It can be installed locally, along with the rack where the SLC 500 CPU is installed, or in a Distributed I/O chassis, alongside a 1746 Communication adapter such as Remote I/O (RIO) and Ethernet adapter modules.
Indicators and Terminal Block:
Equipped with status LED indicators for monitoring and troubleshooting, the module also features a Removable Terminal Block for ease of termination and module replacement.
Specifications:
Maximum signal delay time: 8ms for both ON and OFF transitions
Maximum drop voltage: 5VDC in the OFF state
Maximum leakage current: 1mA
Nominal input current: 8mA at 24VDC
Net heat dissipation: 0.22W on each input point, total of 3.6W for the entire module
Operating temperature: 0 to 60 °C (32 to 140 °F) with 5-95% relative humidity
Storage temperature: -40 to 85 °C (-40 to 185 °F)
Operational shock rating: 30G
Operational vibration: 2.5G at 57-200 Hz
NEMA standard ICS 2-230 rated noise immunity
UL-A196, CSA, and C-UL Class I, Division 2 Hazardous Environment-rated
Electro-optical isolation tested at 1500V between input terminals and control logic
