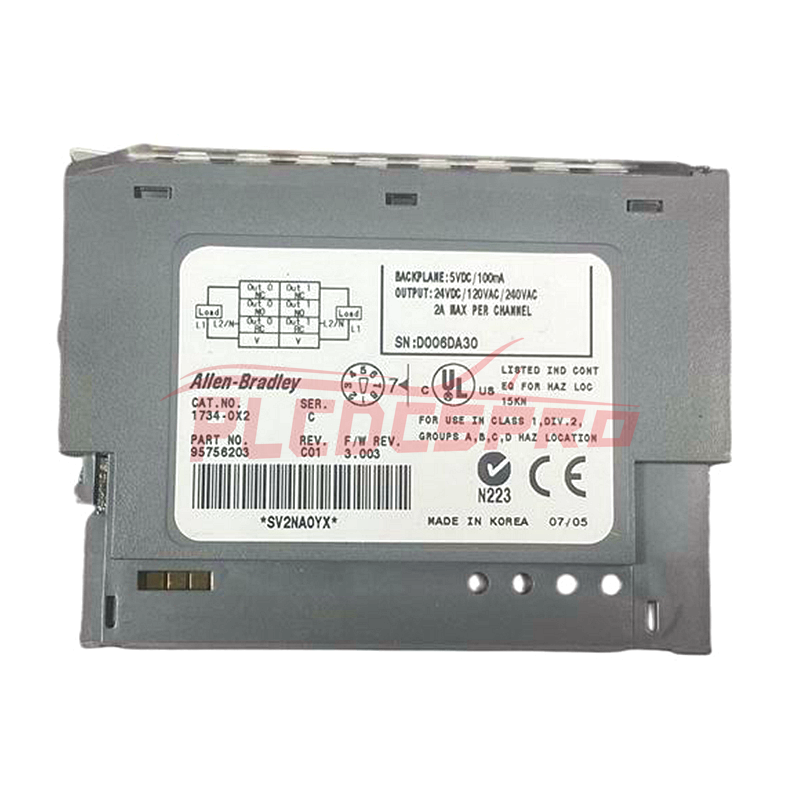

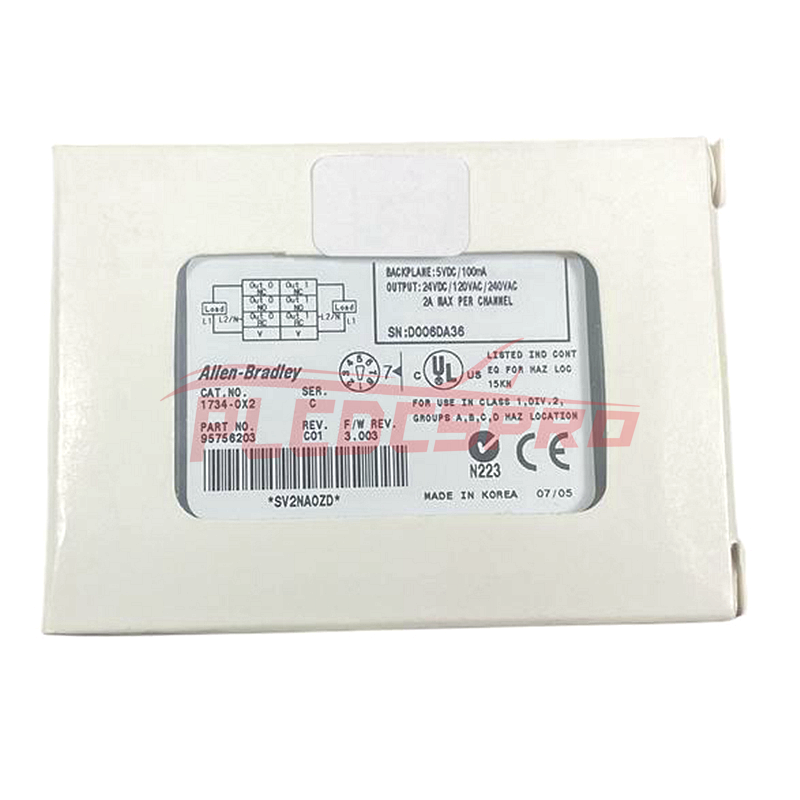

Allen Bradley 1734-OX2 POINT I/O 2-Relay Digital Contact Output Module
Sku:1734-OX2
Country Of Origin: USA
Vendor: Allen Bradley
Type: Relay Output
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The 1734-OX2 is a POINT I/O module featuring two channels of Form C relay outputs. It is designed for applications requiring isolated relay contacts and is compatible with various voltage levels.
Key Specifications
Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Part Number: 1734-OX2
Series: POINT I/O
Module Type: Digital Contact Module
Electrical Specifications
Outputs: 2 Form C Relays (isolated)
Minimum Contact Load: 5 mA per point
POINTBus Current: 100 mA
OFF to ON Signal Delay: 10 ms (maximum)
ON to OFF Signal Delay: 10 ms (maximum)
Initial Contact Resistance: 30 mΩ
Switching Frequency: 1 operation per 3 s (0.3 Hz at rated load) maximum
Bounce Time: 1.2 ms (mean)
Power Dissipation, Max: 0.5 Watts
Thermal Dissipation: 1.7 BTU/hour
Performance Specifications
Load-Dependent Output Voltage: 5-28.8V DC at 2A resistive load; 240V AC at 2A resistive load
Max Power Rating: 250W at 125V AC resistive; 31VA at 125V DC inductive
Operate/Release Time: 10 ms maximum
Electrical Contact Half-Life: 1 million cycles (resistive), 100,000 cycles (inductive)

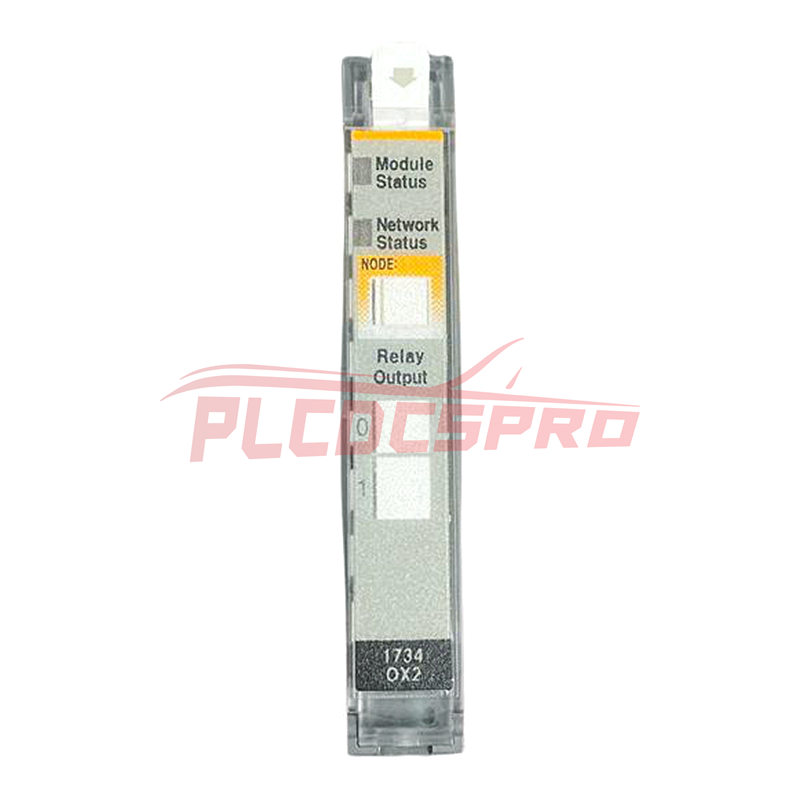

Indicators
Status Indicators: 3 colored indicators (2 green/red, 2 yellow) for module/network status and output status
Keyswitch Position: 7
Physical Specifications
Weight: 0.0325 kg
Dimensions: 5.6 x 1.2 x 7.55 cm
Environmental Specifications
Operating Temperature Range: -20 to 55 °C (-4 to 131 °F)
Relative Humidity: 5-95% (non-condensing, tested at IEC 60068-2-30)
Wiring Specifications
Common Terminals:
Channel 0: Terminal 4 (Common), N.O. at 4 and 0, N.C. at 4 and 0
Channel 1: Terminal 5 (Common), N.O. at 5 and 3, N.C. at 5 and 1
