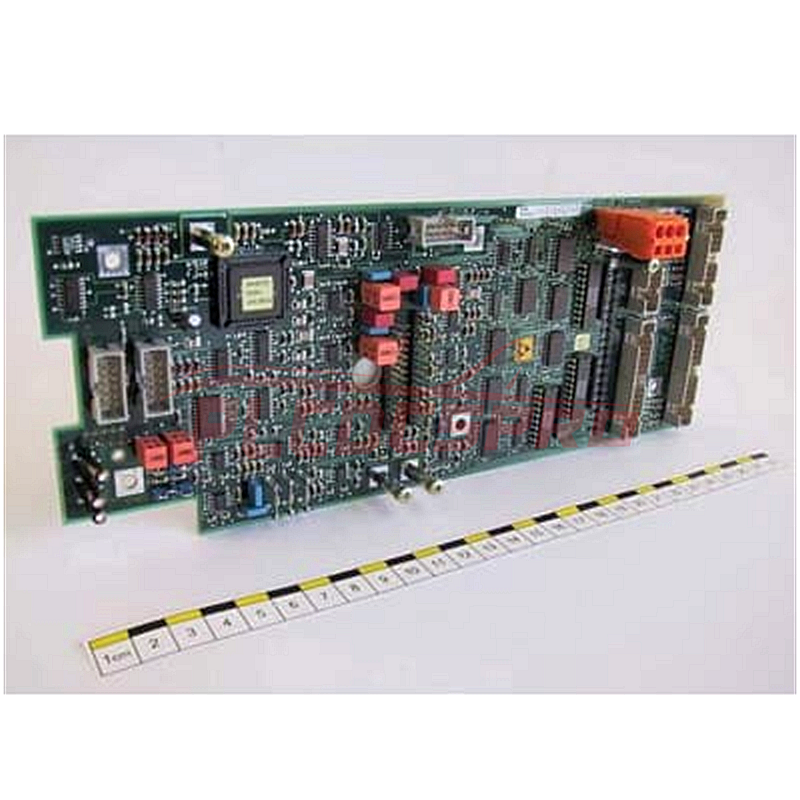

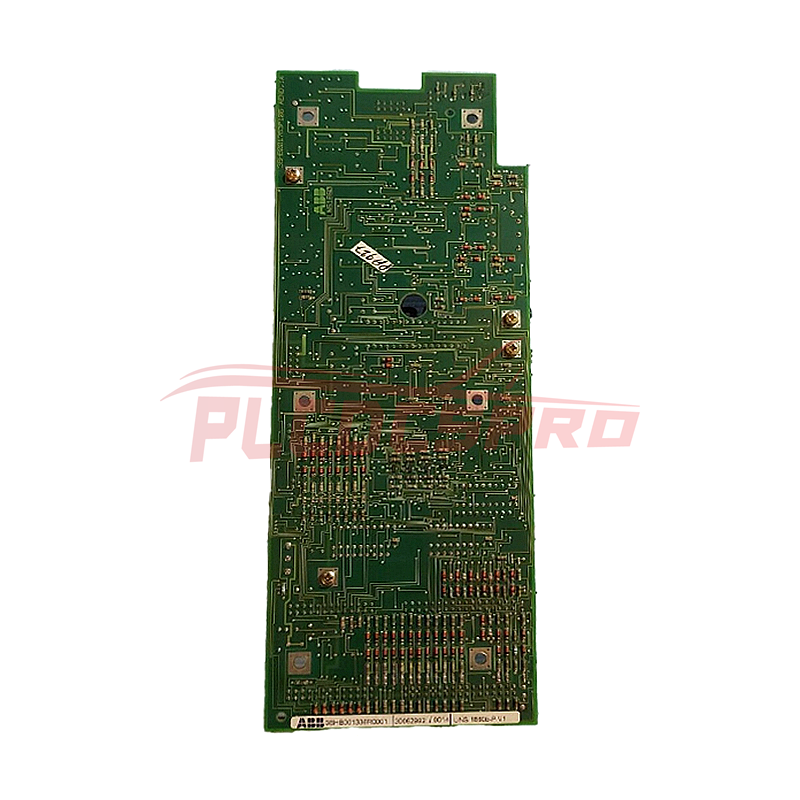

ABB UNS 1860B-P,V1 3BHB001336R0001 Board Measuring Interface
Sku:UNS1860b-P,V1 3BHB001336R0001
Country Of Origin: Sweden
Vendor: ABB
Type: Interface Board
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The ABB 3BHB001336R0001 is a Board Measuring Interface from ABB's UNS1860B series, designed to provide comprehensive analog and digital channel capabilities in a compact form factor. This versatile module integrates 8 analog channels that support voltage, current, or RTD/TC inputs, along with 8 digital channels for 24 VDC sink/source applications. Built-in isolation ensures reliable operation by protecting against electrical noise and ground loops.
Features
8 analog channels: Supports voltage, current, or RTD/TC inputs
8 digital channels: 24 VDC sink/source
Built-in isolation: Ensures protection against electrical noise and ground loops
Compact design: Space-efficient module suitable for various applications
Easy installation and use: Simplifies integration into existing systems
Technical Specifications
Power supply: 24 VDC
Power consumption: < 5 W
Analog input range:
Voltage: ±10 V, ±20 V
Current: ±20 mA, ±40 mA
RTD: Pt100, Pt500, Ni100, Ni120
TC: J, K, T, E, N, R, S, B
Analog input accuracy: ±0.1% of full scale
Digital input/output voltage: 24 VDC
Digital input/output current: 2 A
Digital input/output switching frequency: 10 kHz
Dimensions and Weight
Dimensions: 100 x 60 x 25 mm (3.94 x 2.36 x 0.98 in)
