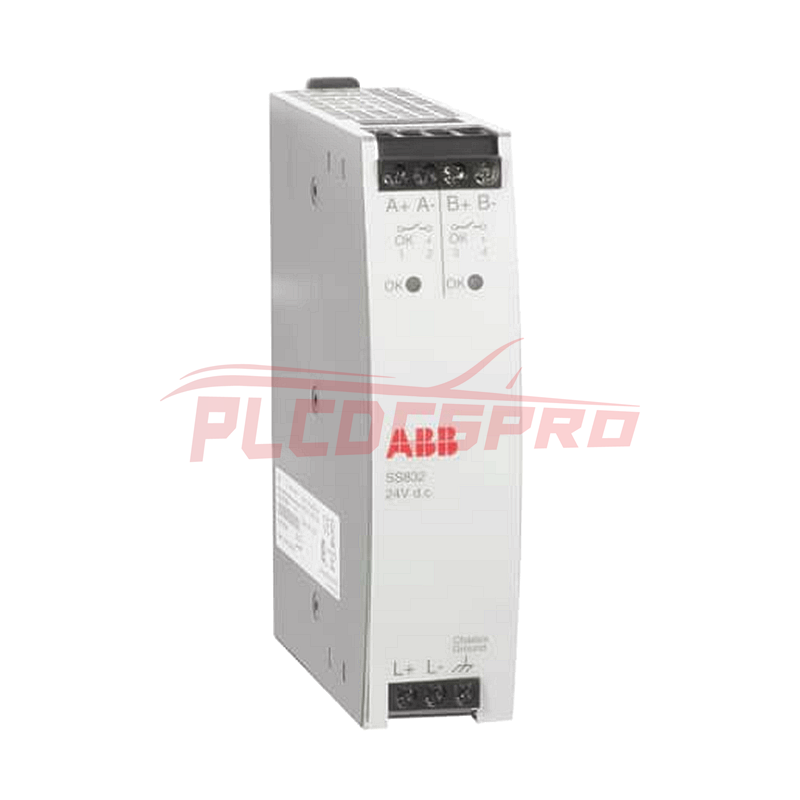

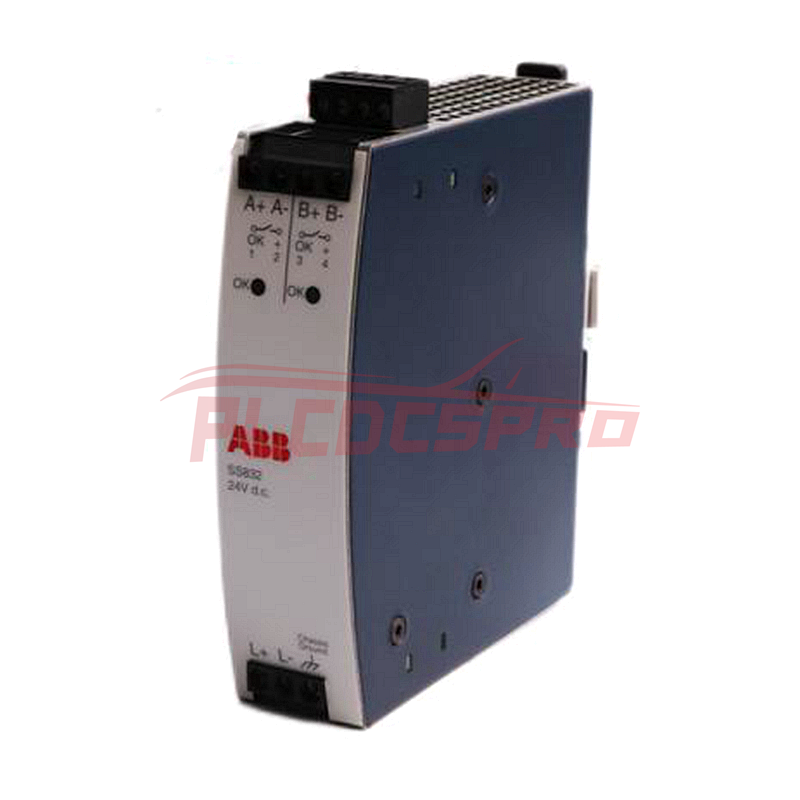

The SS832 3BSC610068R1 is a voting unit designed for redundant power supply configurations. It separates redundant power supply units, monitors the supply voltage, and generates monitoring signals to be connected to the power consumers. A front panel mounted green LED provides a visual indication of whether the correct output voltage is being provided.
Features
DIN rail mountable
Class I device
Class III overvoltage for connection to TN mains networks
Protective separation of secondary circuits from primary circuits
Accepts SELV and PELV applications
Output protected against overcurrent (current limit) and overvoltage (OVP)
Technical Specifications
Rated output current: 10 A (20 A in parallel operation)
Main supply/input voltage, nominal: 2x24 V DC
Allowed main supply voltage variation: - 60 V DC
Power frequency: 60 Hz
Monitoring relay: Yes
Output voltage regulation at maximum current: 0.85 V typ.
Maximum output current: 25 A (overload)
Highest ambient temperature: 55 °C
Dimensions:
Width: 32 mm (1.26 in)
Depth: 117 mm (4.61 in)
Height: 125 mm (4.9 in)
Weight: 350 g (0.77 lb)
Other Information
CE compliant
RoHS certified
Applications
The SS832 3BSC610068R1 is suitable for a wide range of applications, including:
