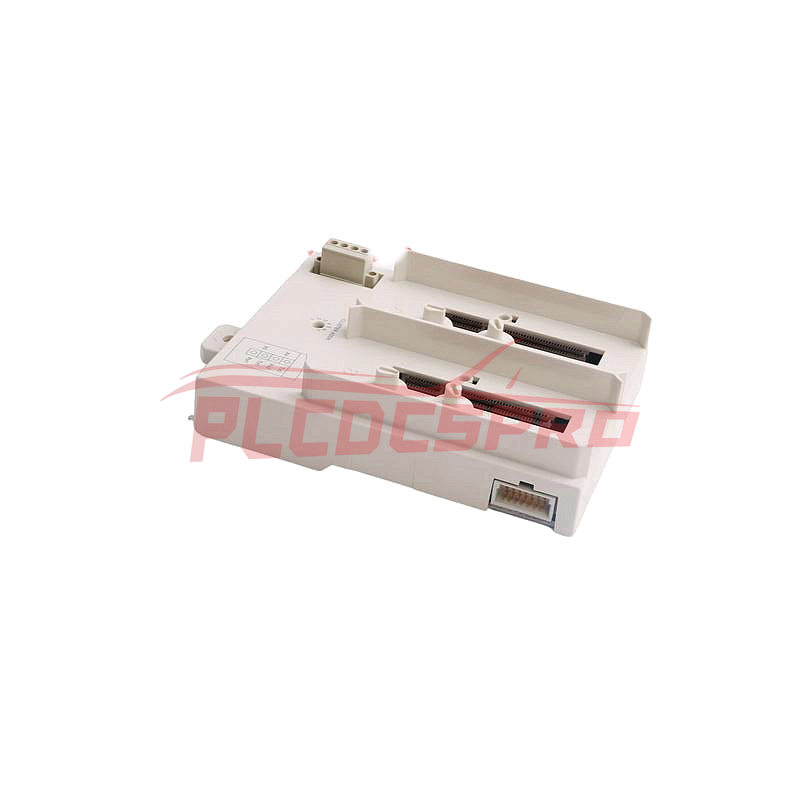

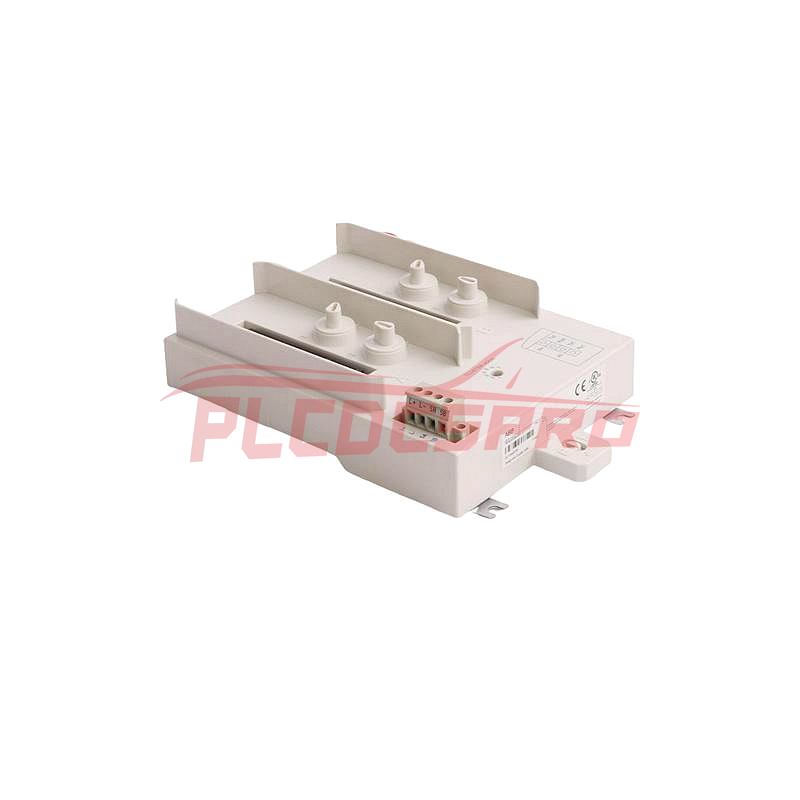

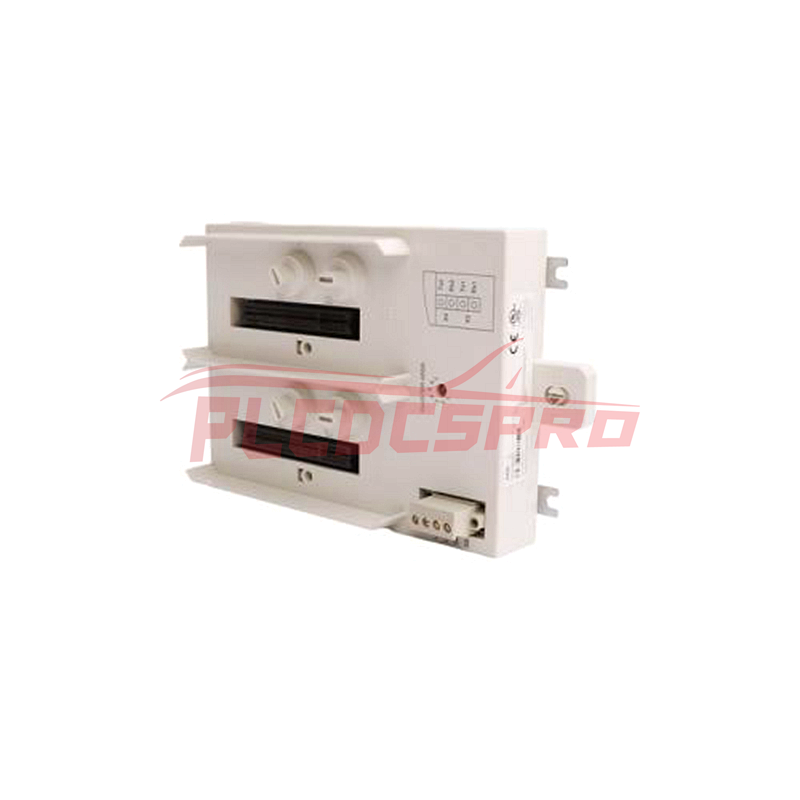

ABB S800 TU841 3BSE020848R1 Termination Unit (MTU)

Sku: TU841 3BSE020848R1
Country Of Origin: Sweden
Vendor: ABB
Type: Termination Unit

In stock!

100% Original and Authentic

100% Brand New, Ready to ship

Support Refund, 7X24h Service

Product description

Overview

The TU841 is a Module Termination Unit (MTU) that connects the Optical ModuleBus Modem TB840/TB840A to non-redundant I/O systems. It supports redundant configurations, ensuring reliable performance in industrial applications.

Features

Rotary Switch: This switch allows easy cluster address setting from 1 to 7.
Mechanical Keying: This feature prevents incorrect module type insertion.
Single ModuleBus Connection: It simplifies wiring, reducing overall complexity.
Latching Device: The latching mechanism securely locks the unit to the DIN rail.
DIN Rail Mounted: This design facilitates quick installation and maintenance.

Specifications

Article Number: 3BSE020848R11
Communication Protocol: ModuleBus
Line Redundancy: Yes, it supports redundant configurations.
Hot Swap Capability: This unit does not support hot swap.
Type: Redundant TB840/TB840A, Single I/O, Single Power
Power Input: 24 V d.c (19.2 - 30 V)
Mounting Orientation: It can mount vertically or horizontally.

Detailed Data

24 V Consumption (Typical): N/A
ModuleBus Current Distribution:
- Maximum 5 V: 1.5 A
- 24 V: 1.5 A
Mechanical Keys: Offers 36 different combinations for flexibility.
Acceptable Wire Sizes:
- Solid: 0.2 - 2.5 mm²
- Stranded: 0.2 - 2.5 mm², 24 - 12 AWG
Recommended Torque: 0.5 Nm ensures secure connections.
Rated Insulation Voltage: 50 V for safe operation.
Dielectric Test Voltage: 500 V a.c provides reliable isolation.
Power Dissipation: It dissipates 2.0 W during operation.

Dimensions and Weight

Width: 12.4 cm (4.88 in.)
Height: 18.6 cm (7.32 in.) including latch
Depth: 4.7 cm (1.85 in.)
Weight: 0.45 kg (0.99 lbs.)
