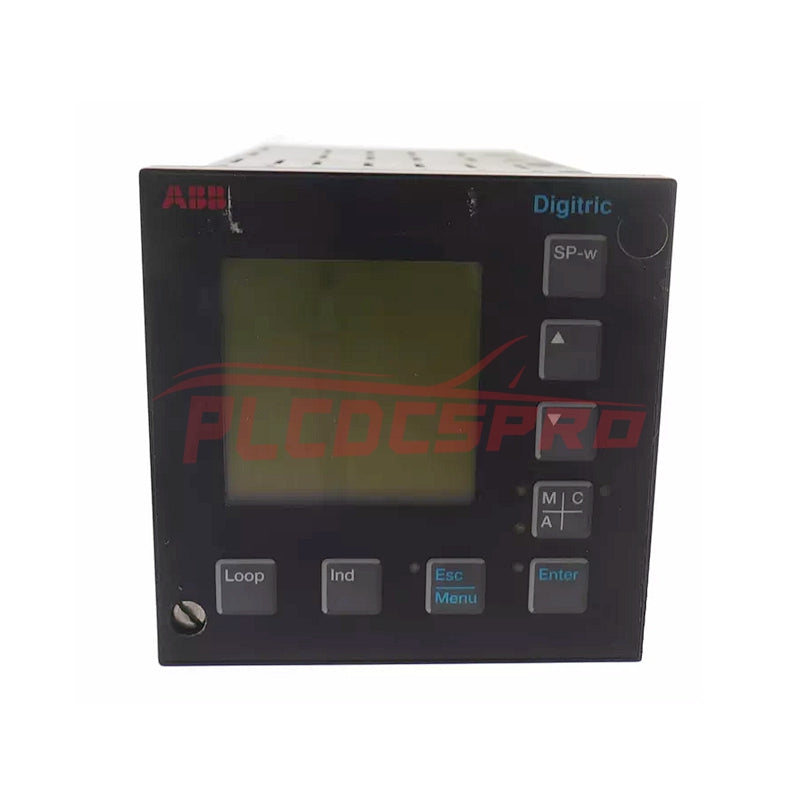

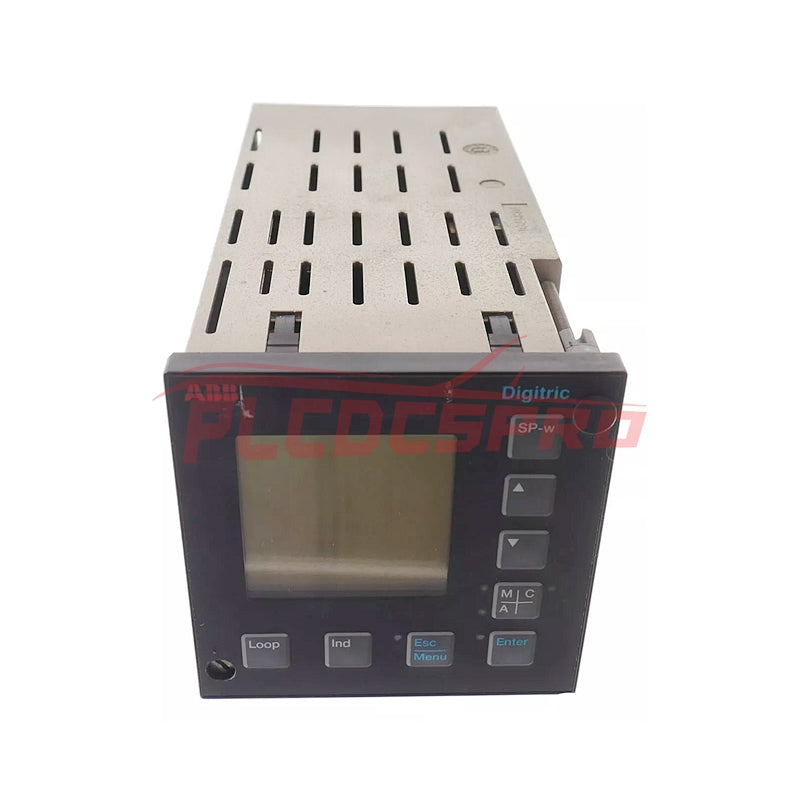

The ABB Digitric 500 Controllers are designed for industrial applications, offering versatile input and output configurations, advanced measurement capabilities, and robust performance for controlling various processes.
General Information
Manufacturer: ABB
Category: Controllers
Specifications
Input
Common Data:
Electrical Isolation: None
Resolution: 12 bit
Measurement Tolerance: ≤ 0.2 % (related to nominal range)
Effect of Temperature: ≤ 0.2 % / 10 °C
Hardware Input Filter: 7 Hz
Analog Inputs
Universal Input AI01:
Signal Type: 0/4...20 mA at 50 Ω ± 1 %, electronic potential separation
Common-Mode Voltage: ≤ ±5 V
Overcurrent/Wrong Polarity Protection: Up to ±40 mA
Linearization/Square Root Extraction: Configurable via software
Line Break Monitoring: Configurable for 4...20 mA
Thermocouple Types (J, E, K, L, U, R, S, T, B, D):
Measuring Ranges:
J: −200...1200 °C
E: −200...1000 °C
K: −200...1400 °C
L: −200...1000 °C
U: −200...600 °C
R: 0...1700 °C
S: 0...1800 °C
T: −200...400 °C
B: 0...1800 °C
D: 0...2300 °C
Reference Junction Compensation: Internal or external (0, 20, 50, or 60 °C)
Sensor Break Monitoring: Configurable
Pt 100 DIN Resistance Thermometers:
Measuring Ranges:
−200.0...+200.0 °C
−200.0...+800.0 °C
Measuring Current: ≤ 1 mA
Measurement Circuit:
2-wire connection to 40 Ω
3-wire connection for symmetrical cables to 3 × 10 Ω
4-wire connection for sensor short circuit and break monitoring
Binary Inputs/Outputs
Configurable Direction of Functioning
Input (DIN 19240):
Nominal Signal: 24 V DC
Voltage Range: 20.4...28.8 V
Current Range: Approx. 1 mA
Output (DIN 19240):
Nominal Signal: 24 V DC
Voltage Range: 20.4...28.8 V
Current Range: 100 mA
Analog Outputs
Control Output: 0/4...20 mA (max. 750 Ω)
Control Range: 0...≥ 21 mA
Load Dependence: 0.1 % / 100 Ω
Resolution: 12 bit
Binary Outputs
Relay Outputs (B03 and B04):
Max Voltage: 250 V AC
Max Current: 1 A
Switching Frequency: ≤ 8 Hz
Power Supply
Input Voltage: 115 to 230 V AC (90 to 260 V)
Power Consumption:
Without modules: 9 VA (6 W)
With maximum modules: 16 VA (11 W)
Power Failure Monitoring: ≥ 150 ms at 180 V AC
Environmental Conditions
Ambient Temperature: 0...50 °C
Storage Temperature: −20...70 °C
Humidity: ≤ 75 % annual average (short-term up to 95%)
Electromagnetic Compatibility (EMC):
Meets EMC Guideline 89/336/EEC
Interference Immunity: EN 50082-2
Interference Emission: EN 50 081-1
Mechanical Specifications
Case Dimensions:
Front: 96 mm x 96 mm
Installed Depth: 200 mm
Weight:
Controller: 1 kg (without modules)
Modules: Approx. 40 g
Relay Module: Approx. 80 g
Mounting
Mounting Orientation: As required
Fixing: Clamping screws top and bottom
Panel Cutout: 92 mm x 92 mm to DIN 43 700

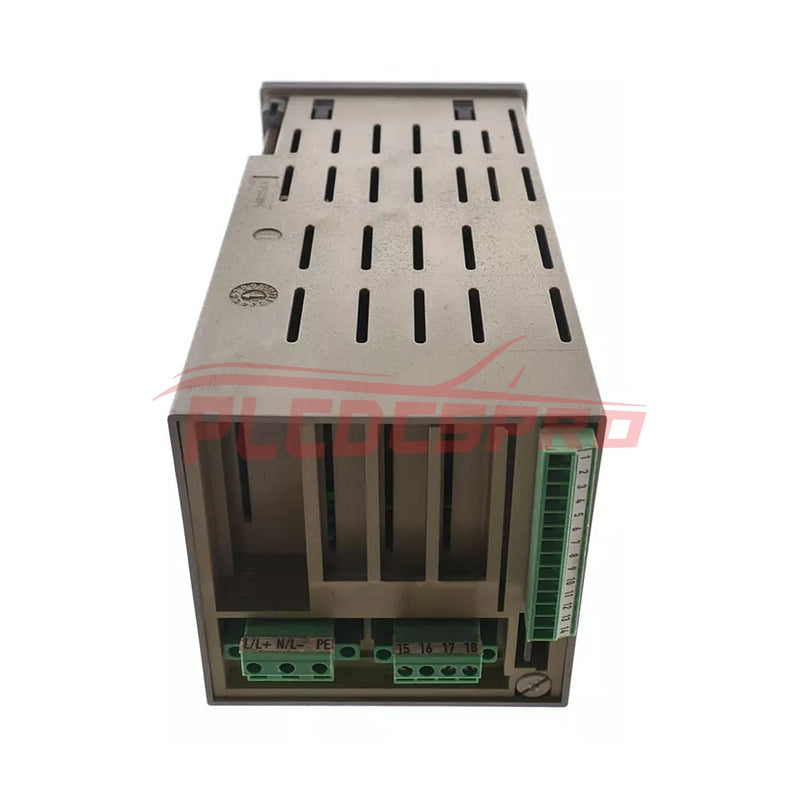

Electrical Connections
Terminals: Plug-in screw terminals for solid or stranded wire
