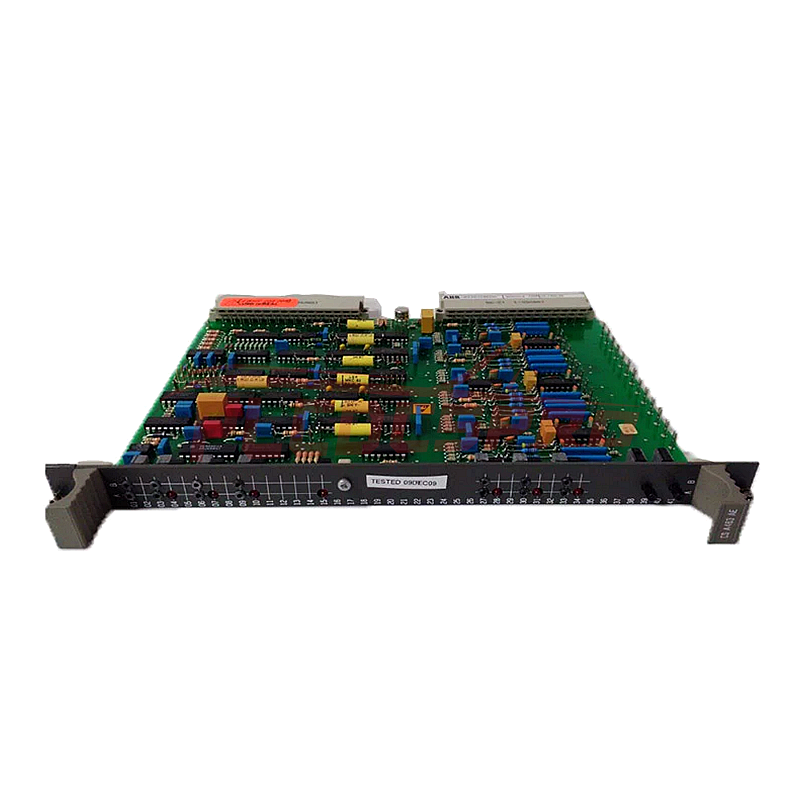

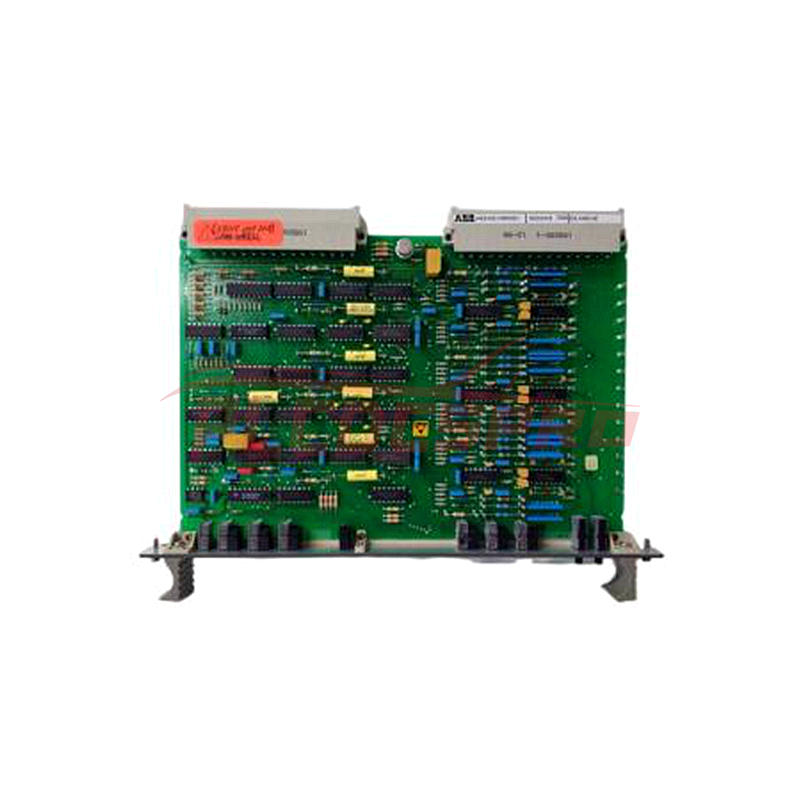

The ABB HIEE400103R0001 is a versatile circuit board designed for integration within ABB drives, specifically part of the Control System A463 series. It is engineered to enhance the functionality and performance of ABB ACS500, ACS800, and ACS1000 drives across various industrial applications such as welding, robotics, and material handling.
Features
Compatibility:
Compatible with ABB ACS500, ACS800, and ACS1000 drives, ensuring broad applicability in industrial settings.
Certifications:
CSA and CE certified, meeting international standards for safety and reliability.
Application Versatility:
Used in diverse applications including welding, robotics, and material handling, demonstrating its flexibility.
Technical Specifications
Input Voltage: 24 VDC, ensuring compatibility with standard industrial power systems.
Output Voltage:
5 VDC, 12 VDC, and 24 VDC, catering to different power requirements within the drive system.
Output Current: 2 A, providing sufficient power for operational stability.
Operating Temperature:
From -20 to 70°C, suitable for operation in varied industrial environments.
Storage Temperature:
From -40 to 85°C, ensuring durability during storage and transportation.
Dimensions:
115 x 60 x 25 mm, facilitating compact integration into ABB drive systems.
Weight:
0.2kg, ensuring lightweight construction for ease of handling and installation.
Additional Information
The circuit board incorporates essential components such as a microprocessor, memory, and input/output (I/O) ports.
The microprocessor manages the board's operations, ensuring efficient control within the drive system.
Memory stores crucial data and programs required for the board's functionality.
I/O ports facilitate seamless connectivity with ABB drives and external devices, enhancing integration capabilities.
