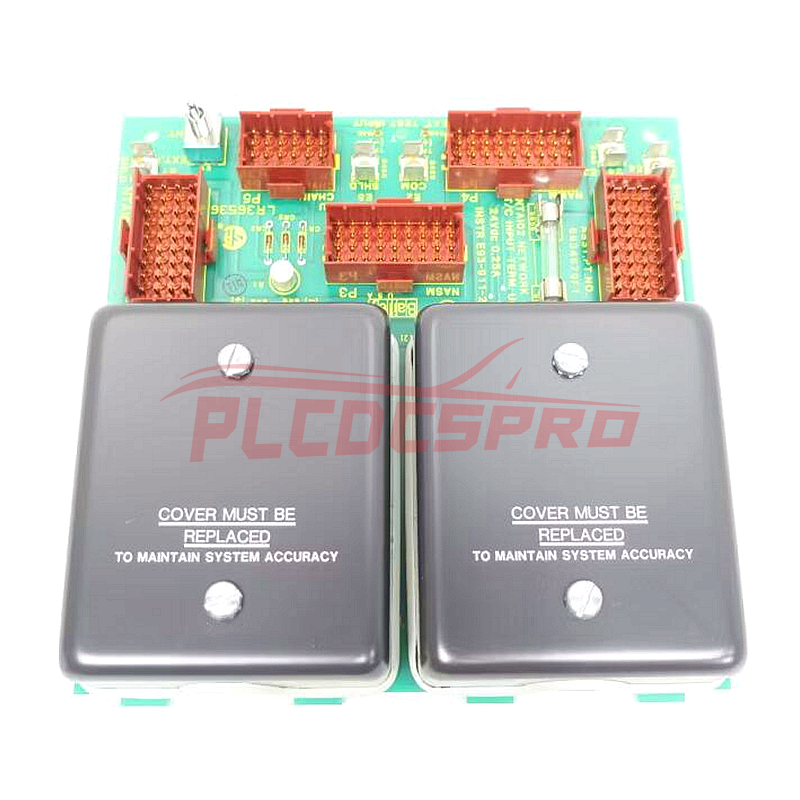

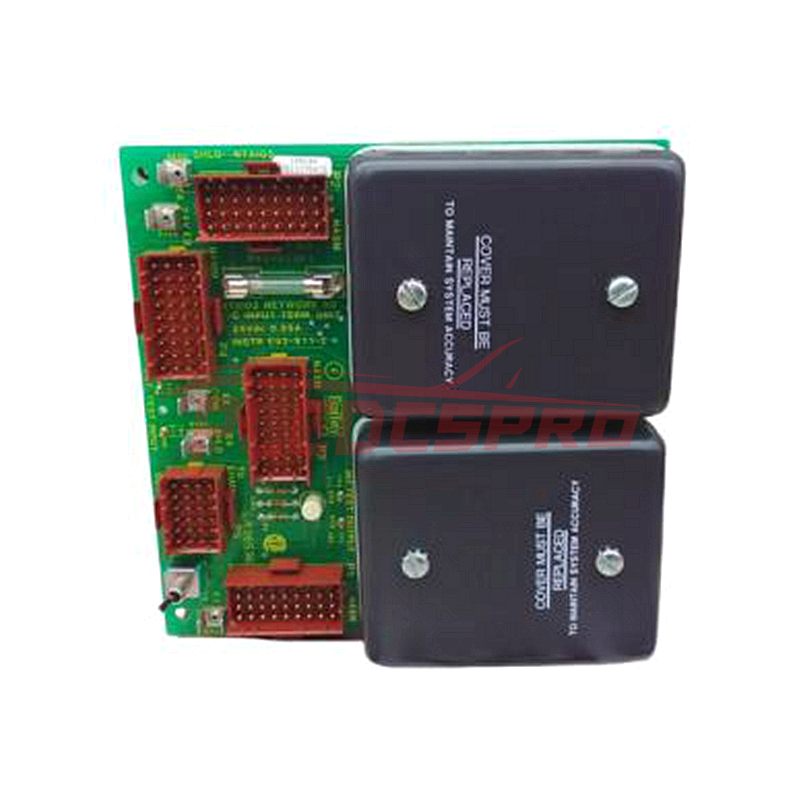

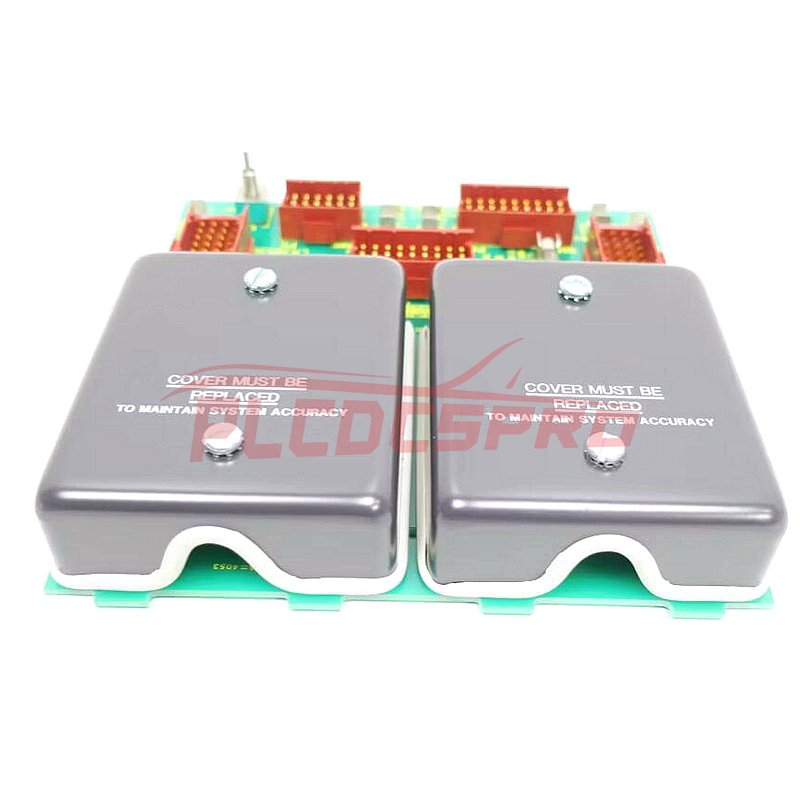

The ABB NTAI02 Thermocouple Input Termination Unit is a versatile module designed to interface with one or two IMASM02 Thermocouple Slave Modules. It efficiently inputs 16 thermocouple or millivolt signals from field equipment to the IMASM02 modules, which are then routed to the Analog Master Module (IMAMM03). Up to four NTAI02 units can be interconnected, providing enhanced monitoring and calibration capabilities for industrial automation systems.
Features
Signal Input: Inputs 16 thermocouple or millivolt signals from field equipment.
System Flexibility: Supports interconnection of up to four NTAI02 units for expanded control.
Calibration: Equipped with a dedicated calibration socket and test input/output posts.
Cold Junction Reference: Provides a local cold junction reference for thermocouple inputs.
Connectivity: Standard factory-wired cable links the NTAI02 to IMASM02 modules.
Specifications
Property
Value
Power Requirements
+24 VDC, 10 mA per IMASM02
Mounting
Field Termination Panel (NFTP01)
Temperature Range
0 to 70°C (32 to 158°F)
Relative Humidity
5% to 90% up to 55°C (non-condensing), 5% to 40% up to 70°C
Atmospheric Pressure
Sea level to 3 km (1.86 miles)
Surge Protection
Meets IEEE-472-1974 Surge Withstand Capability Test
Certification
CSA certified for ordinary (non-hazardous) locations
