Current Limiting: Built-in current limited transmitter power
Maximum Field Cable Length: 600 meters (656 yards)
Max Input Voltage (Non Destructive): 11 V d.c.
NMRR, 50Hz, 60Hz: > 40 dB
Rated Insulation Voltage: 50 V
Dielectric Test Voltage: 500 V a.c.
Power Dissipation: 3.5 W
Current Consumption +5 V Modulebus: 100 mA
Current Consumption +24 V Modulebus: 50 mA
Current Consumption +24 V External: Max. 265 mA (22 mA + transmitter current * 1.32)
Dimensions
Width: 45 mm (1.77”)
Depth: 102 mm (4.01”), 111 mm (4.37”) including connector
Height: 119 mm (4.7”)
Weight: 0.23 kg (0.51 lbs.)

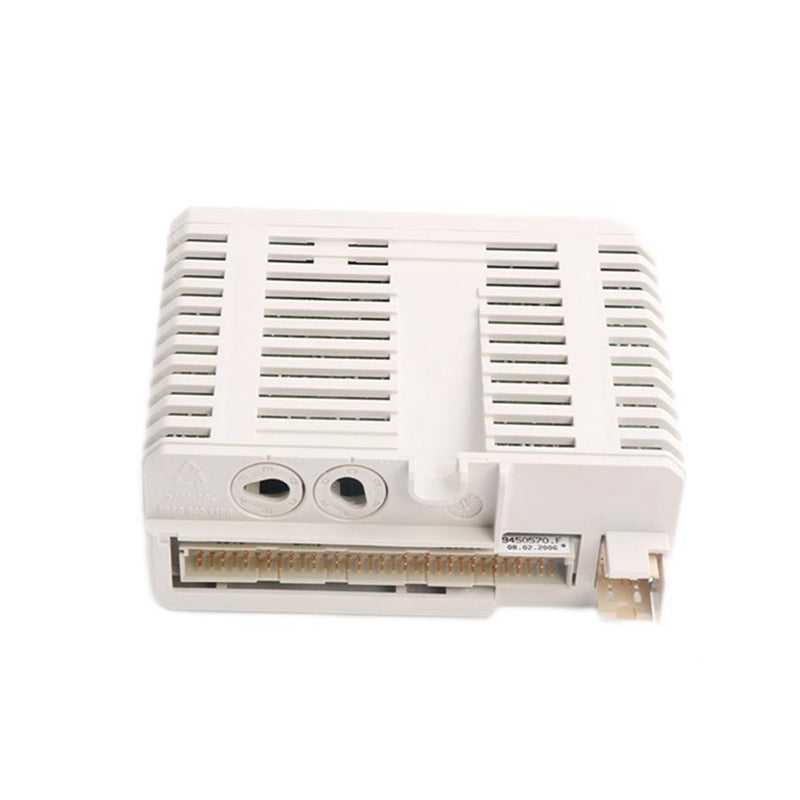

Introduction to AI845 (3BSE023675R1)
The AI845 Analog Input Module is designed for both single and redundant applications, featuring 8 channels. Each channel supports voltage or current inputs, facilitated by MTU TU844 or TU845. When used with other MTUs, all channels operate as either voltage or current inputs.
The module provides robust features including:
8 channels for 0...20 mA, 4...20 mA, 0...5 V, or 1...5 V d.c., single-ended unipolar inputs
Isolation of 1 group of 8 channels from ground
12-bit resolution with advanced on-board diagnostics
Current-limited transmitter supply per channel
Integrated HART pass-through communication for enhanced connectivity and diagnostics.
