Process Connections: 40 up to 8 I/O channels (2 terminals per channel)
4 Process power
20 Process power (0 V)
Single/Redundant I/O: Redundant
Detailed Data
Maximum Current per I/O Channel: 2 A
Maximum Current Process Connection: 5 A
Acceptable Wire Sizes:
Solid: 0.2 - 4 mm²
Stranded: 0.2 - 2.5 mm², 24 - 12 AWG
Recommended Torque: 0.5 - 0.6 Nm
Stripping Length: 7 mm
Dielectric Test Voltage: 500 V a.c.
Dimensions
Width: 131 mm (5.16”) including connector, 124 mm (4.88”) edge to edge installed
Depth: 64 mm (2.52”) including terminals
Height: 186.5 mm (7.34”) including locking device
Weight: 0.6 kg (1.3 lbs.)

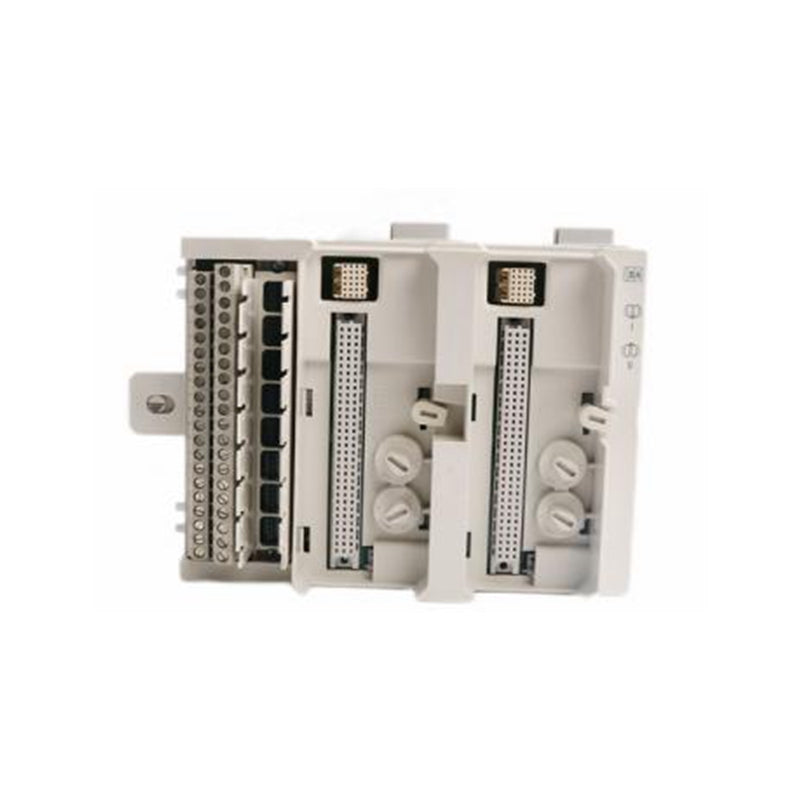

Introduction to TU845 (3BSE021447R1)

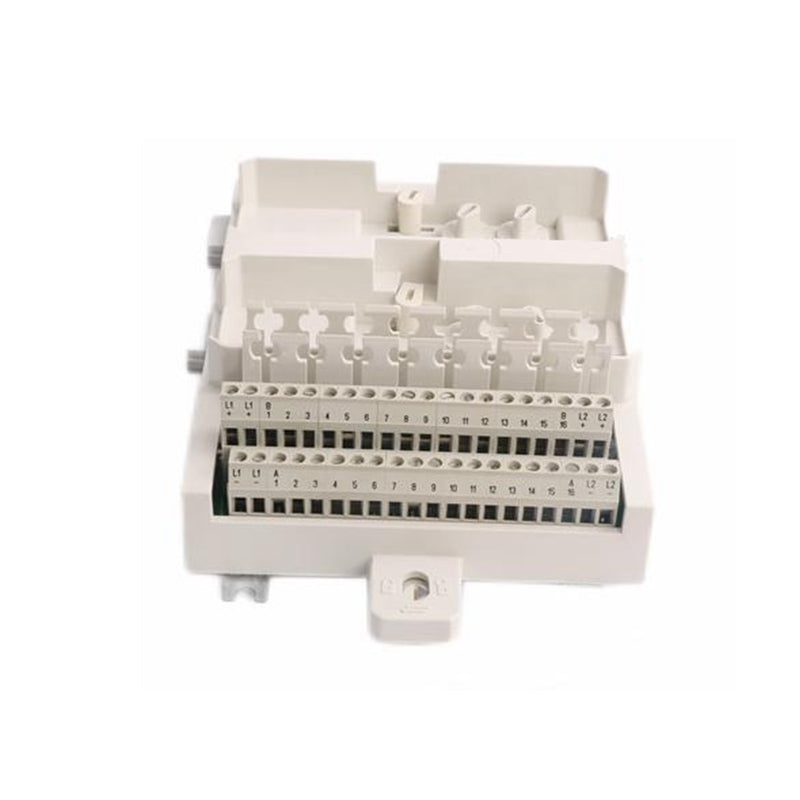

The TU845 MTU (Module Termination Unit) supports up to 8 I/O channels and features 2+2 process voltage connections. Each channel includes two I/O connections and one ZP connection, with input signals connected via shunt sticks (TY801). It supports both voltage and current inputs, with a maximum rated voltage of 50 V and maximum rated current of 2 A per channel.

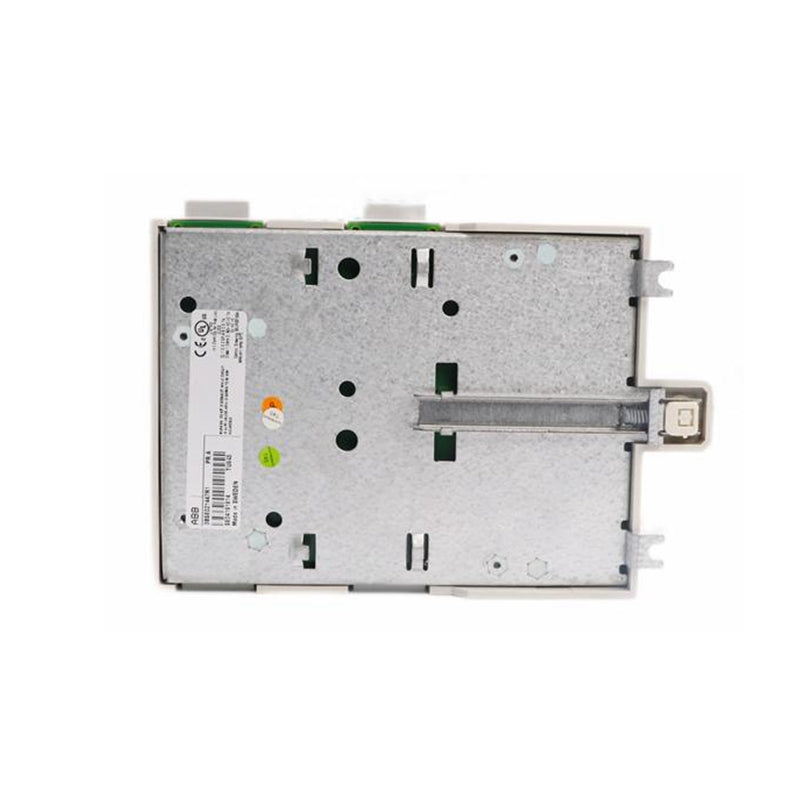

The MTU facilitates distribution of two ModuleBuses, one to each I/O module and to the next MTU. It manages address configuration for I/O modules by shifting outgoing position signals to subsequent MTUs. The unit includes a mechanical latch for secure DIN rail mounting.
Four mechanical keys, two for each I/O module, allow configuration of the MTU for different I/O module types. This mechanical setup ensures correct module insertion without affecting MTU or module functionality. Each key offers six positions, providing 36 configuration options.
Features and Benefits
Complete installation of I/O modules using 2-wire connections and field power distribution.
Supports up to 8 channels of field signals and process power connections.
Connections to two ModuleBuses and I/O modules.
Mechanical keying prevents incorrect insertion of I/O modules.
Latching device for DIN rail mounting ensures secure grounding.
DIN rail mounted for easy installation and maintenance.
