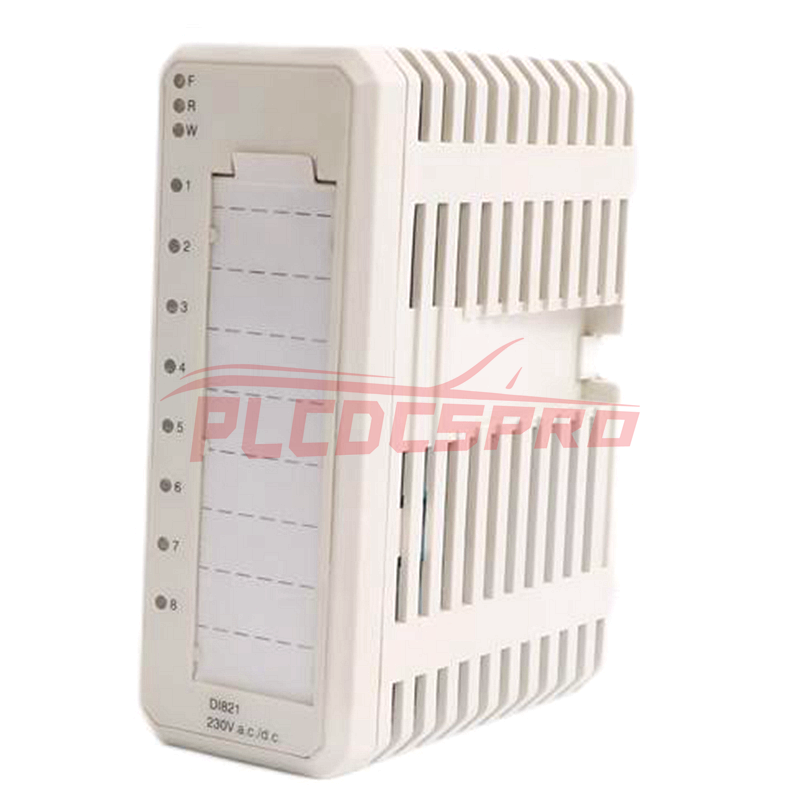

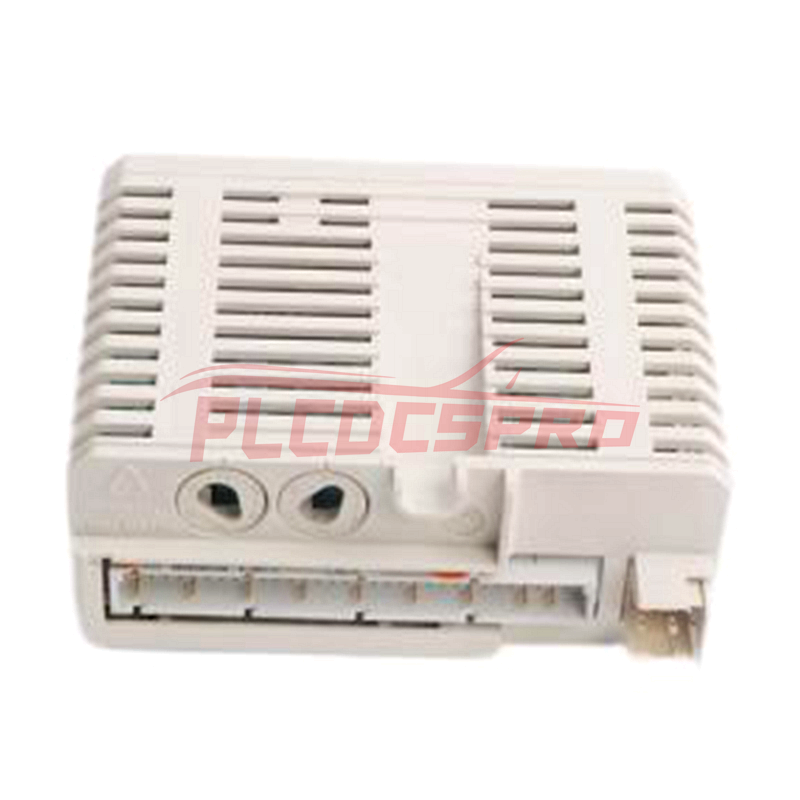

ABB 3BSE008550R1 DI821 Digital Input 230V 8 Channels
Sku:3BSE008550R1 DI821
Country Of Origin: Sweden
Vendor: ABB
Type: Digital Input
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The ABB DI821 is an 8-channel digital input module designed for the S800 I/O system. It operates on 230 V a.c./d.c., providing reliable input for industrial applications.
Specifications
Article Number: 3BSE008550R1
Type: Digital Input
Signal Specification: 230 V a.c., 220 V d.c.
Number of Channels: 8
Signal Type: Current sinking
Mechanics: S800
HART Compliance: No
SOE Compliance: No
Redundancy: No
High Integrity: No
Intrinsic Safety: No
Detailed Data
Input Voltage Range:
"0": 0 to 50 V a.c., 0 to 40 V d.c.
"1": 164 to 264 V a.c., 175 to 275 V d.c.
Input Impedance:
21 kΩ (a.c.)
134 kΩ (d.c.)
Isolation: Individually isolated channels
Filter Times (Digital, Selectable): 2, 4, 8, 16 ms
Input Frequency Range: 47 to 63 Hz
Analog Filter On/Off Delay: 5 / 28 ms
Current Limiting: Sensor power can be current limited by the MTU
Maximum Field Cable Length:
200 meters (219 yards) for a.c. (100 pF/m)
600 meters (656 yards) for d.c.
Rated Insulation Voltage: 250 V
Dielectric Test Voltage: 2000 V a.c.
Power Dissipation: Typ. 2.8 W
Current Consumption +5 V Modulebus: 50 mA
Current Consumption +24 V Modulebus: 0
Current Consumption +24 V External: 0
Diagnostics
Front LEDs: Indicate Fault (F), Run (R), Warning (W), and Channel Status (1-16)
Supervision: Monitors process voltage; channels 1 and 8 serve as supervision inputs.
Status Indication: Module error, module warning, and channel error indicators.
Environment and Certification
Compatibility: Works with MTU models TU811, TU813, TU831, TU839, TU851
Keying Code: AC
Dimensions and Weight
Width: 4.5 cm (1.77 inches)
Depth: 10.2 cm (4.01 inches), 11.1 cm (4.37 inches) including connector
