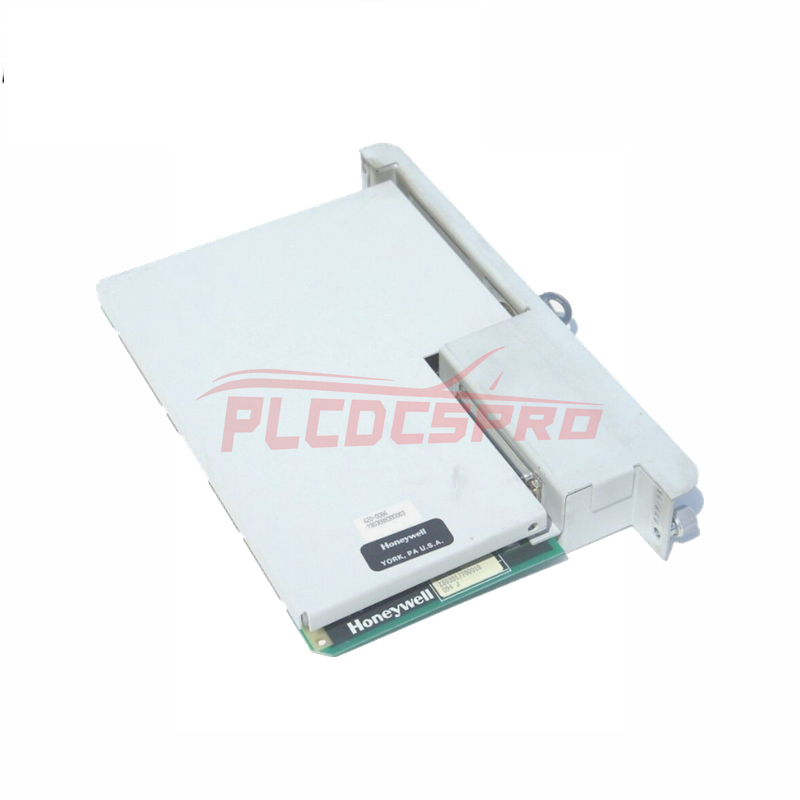

620-0086 | Honeywell Parallel Link Driver Module (PLDM)

Manufacturer: Honeywell

Product No.: 620-0086

Description

The Honeywell 620-0086 Parallel Link Driver Module (PLDM) collaborates with the I/O module to regulate I/O communications. It also manages system status via the mode keyswitch and determines I/O response to system faults and various operating parameters. The PLDM is typically installed in slot N in both the 620-25 and 620-35 processors.

Features

• Controls I/O communications
• Controls system status via the mode keyswitch
• Determines I/O response to system faults and various operating parameters
• Installed in slot N in both the 620-25 and 620-35 processors

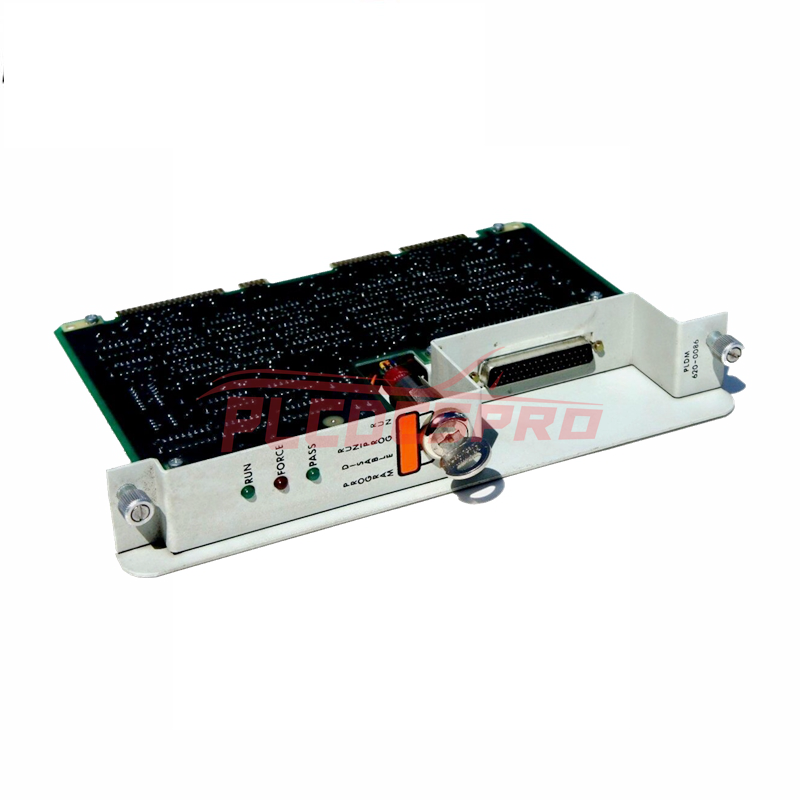

Front Panel

The front panel of the PLDM includes:

• Three LED status indicators
  • RUN LED: Energizes while the processor is scanning the ladder diagram program and is operating correctly.
  • FORCE LED: Energizes when at least one address in the program is in the forced state.
  • PASS LED: Energizes when the PLDM has passed its self-test.
• Processor Keyswitch: Offers four positions for selecting processor mode of operation: PROGRAM, DISABLE, RUN/PROG, and RUN.
• D Connector: Interfaces the processor with the I/O system.

DIP Switches

Two DIP switch banks are located on the top edge of the PLDM:

• SW 1 (four switches)
• SW 2 (eight switches) These switches select the I/O response to system faults and various operating parameters.

Specifications

• Number of Points: 16 channels
• Input Voltage Range (Voltage): ±10.25 volts, 0 to 10.25 volts, 0 to 5.125 volts
• Input Current Range (Current): 0 to 20.5 mA (internal 250 Ω resistor)
• Voltage Resolution:
  • ±10.5 volt range: 320 μV
  • 0 to 10.5 volt range: 160 μV
  • 0 to 5 volt range: 80 μV
• Current Resolution: 320 μA
• Module Publish Rate: 250 msec
• Input Impedance (Voltage): Greater than 1.0 megaohms
• Input Impedance (Current): 249 ohms nominal
• Open Circuit Detection:
  • Voltage: Even channels - Positive Full scale reading; Odd channels – Negative Full scale reading
  • Current: Negative Full scale reading
  • Typical OC Detection Time: less than 5 seconds
• Normal Mode Noise Rejection: Greater than 33 dB @ 50 Hz
• Common Mode Rejection: Greater than 60 dB @ 60 Hz; 100 dB @ 50/60 Hz
• Channel Bandwidth: 20 Hz (-3dB)
• Calibrated Accuracy @ 25°C:
  • Better than 0.05% of range (Voltage)
  • Better than 0.15% of range including sense resistor (Current)
• RFI Immunity: Error of less than 2.0% of range at 10 V/m, 27 to 1000 MHz
• Overvoltage Capability: Continuous at room temperature (both)
  • 30 VDC (Voltage)
  • 8 VDC (Current)
• Input Offset Drift with Temperature: <90 μV/°C (Voltage); <360 μA/°C typical (Current)
• Gain Drift with Temperature: 15 ppm/°C (Voltage); 20 ppm/°C (Current)
• Module Error Over Full Temp. Range: 0.1% of range (Voltage); 0.3% of range (current)
• Power Dissipation: 4.1 W max
• Backplane Current: See Module Power Consumption Data, page 46.
• Isolation Voltage: User to system 100% Tested at 2550VDC for 1s
• Connection: Terminal Blocks TC-TBCH, 36-position terminal block

Applications

The PLDM finds applications in various industrial automation sectors, including:

• Process control
• Manufacturing
