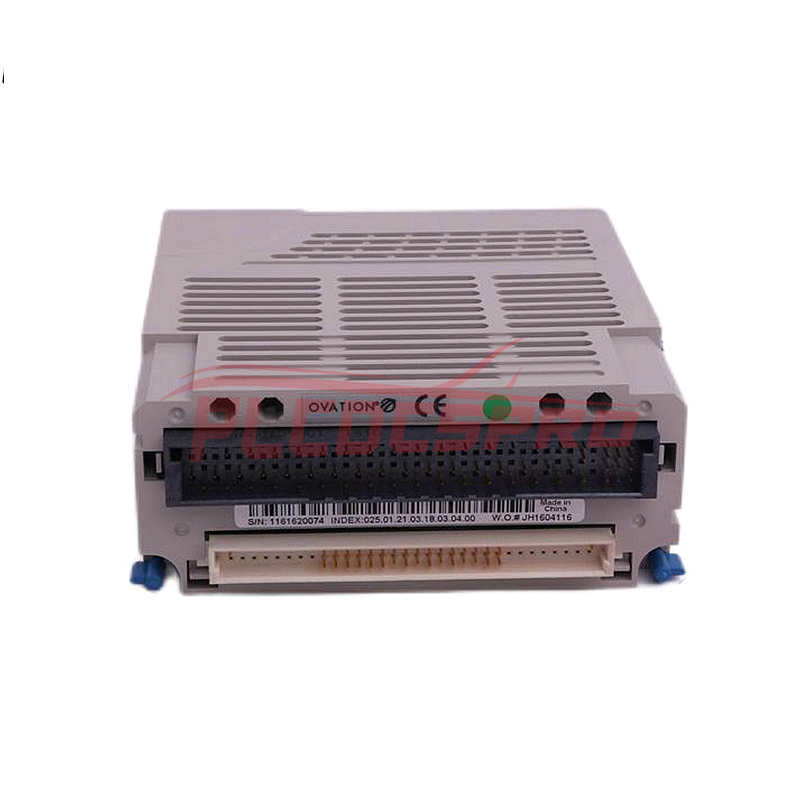

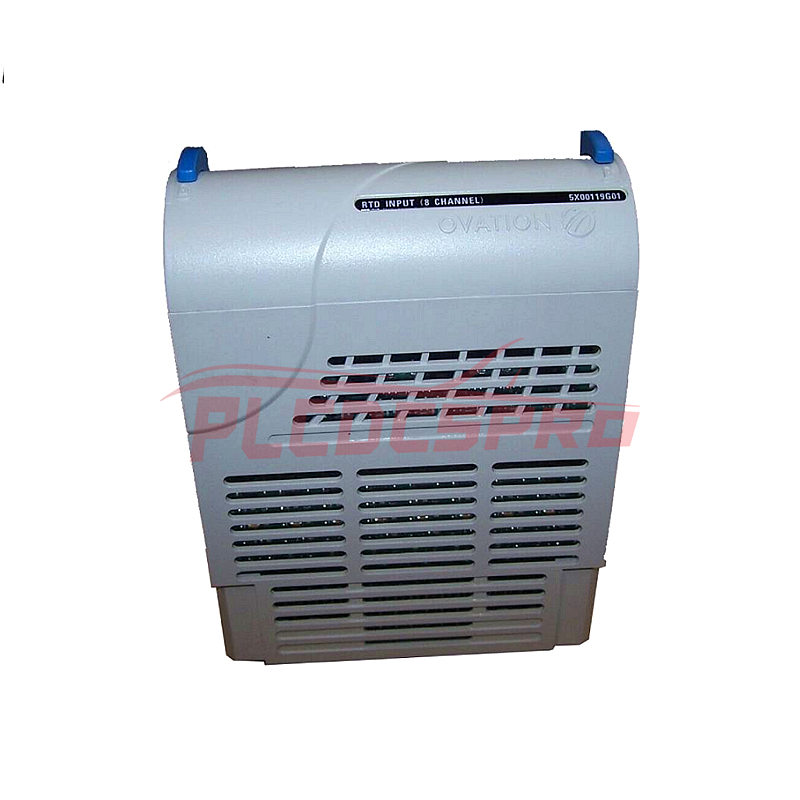

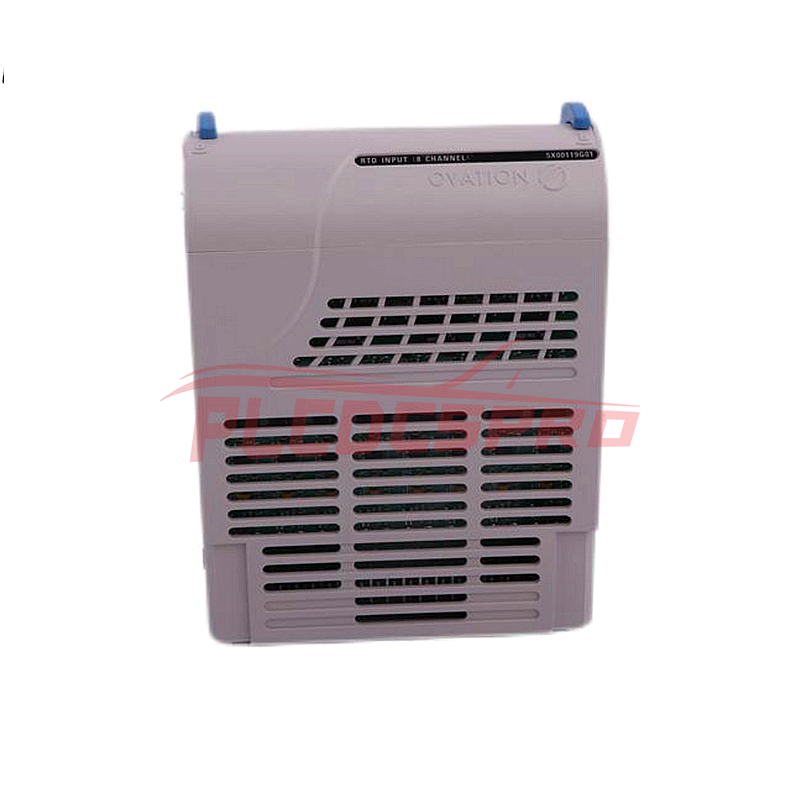

The Emerson Ovation 5X00119G01 8 Channel RTD module consists of two modules an electronics module contains a logic printed circuit board (LIA) and a printed circuit board (FTD). The electronics module is used in conjunction with a personalty module, which contains a single printed circuit board (PTD).
50 HZ mode: 16.67/sec. normally. In 3 wire mode, lead resistance measurement occurs once every 6.45 sec. during which the rate drops to 3/sec. 60 HZ mode: 20/sec. normally. In 3 wire mode, lead resistance measurement occurs once every 6.45 sec. during which the rate drops to 2/sec. Self Calibration Mode: Occurs on demand only. The rate drops to 1/sec. once during each self calibration cycle.
RTD ranges
Refer to Table 19A-3.
Resolution
12 bits
Guaranteed accuracy (@25℃)
0.10% ± [0.045 (Rcold/Rspan)]% ± [((Rcold + Rspan)/4096 OHM)]% ± [0.5 OHM/Rspan]% ± 10 × V × 1/2LSB where: Rcold and Rspan are in Ohms.
Temperature coefficient
10ppm/℃
Dielectric isolation
Channel to channel: 200V AC/DC Channel to logic: 1000 V AC/DC
Input impedance
100 M OHM
50 K OHM in power down
Module power
3.6 W typical; 4.2 W maximum
Operating temperature range
0 to 60℃ (32℉ to 140℉)
Storage temperature range
-40℃ to 85℃ (-40℉ to 185℉)
Humidity (non-condensing)
0 to 95%
Self Calibration
On Demand by Ovation Controller
Common Mode Rejection
120 dB @ DC and nominal power line frequency ± 1/2%
Normal Mode Rejection
100 dB @ DC and nominal power line frequency ± 1/2%
