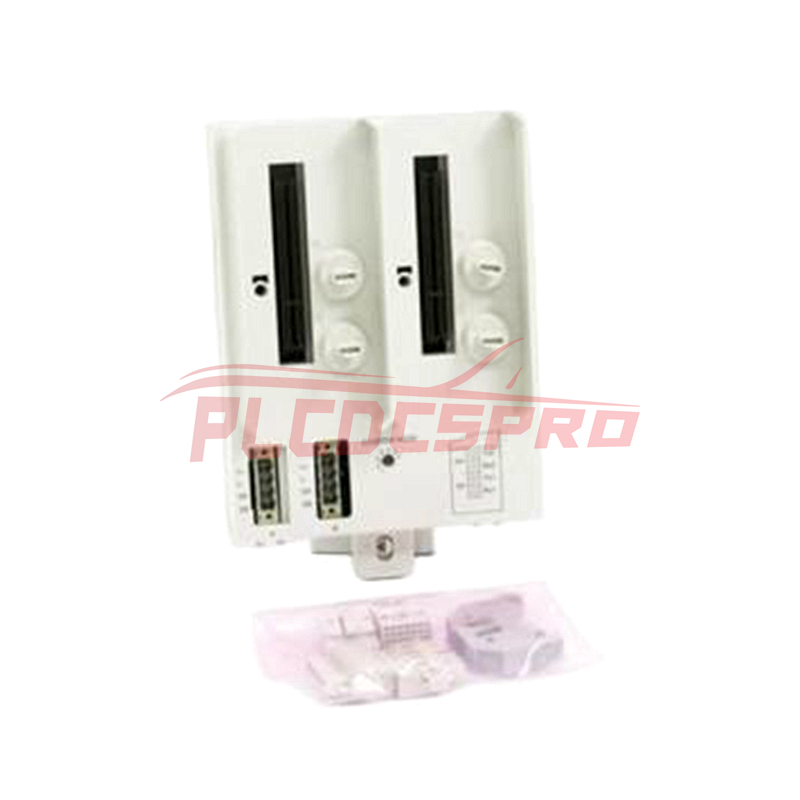

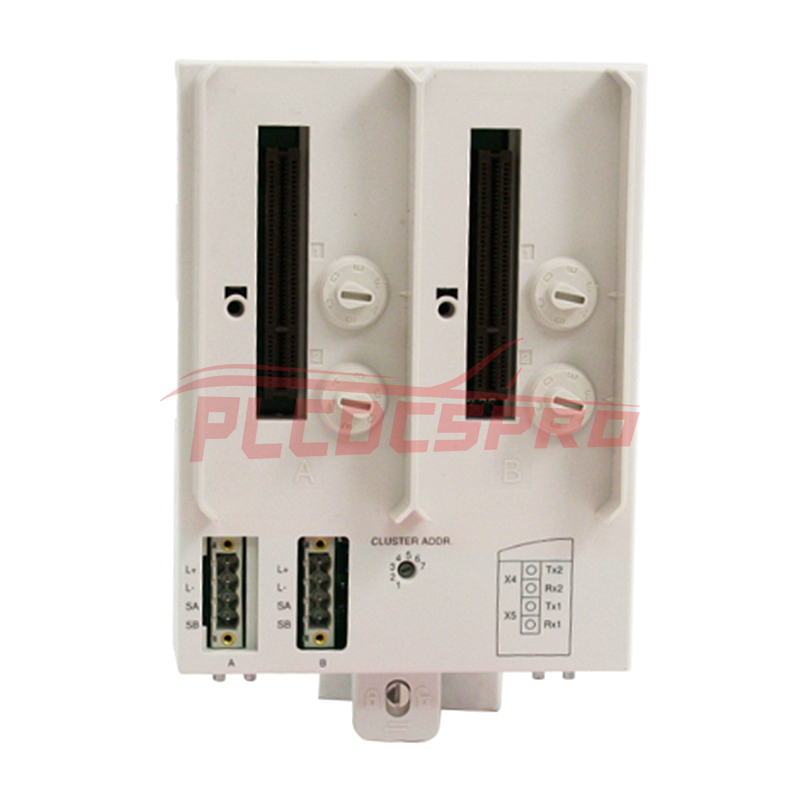

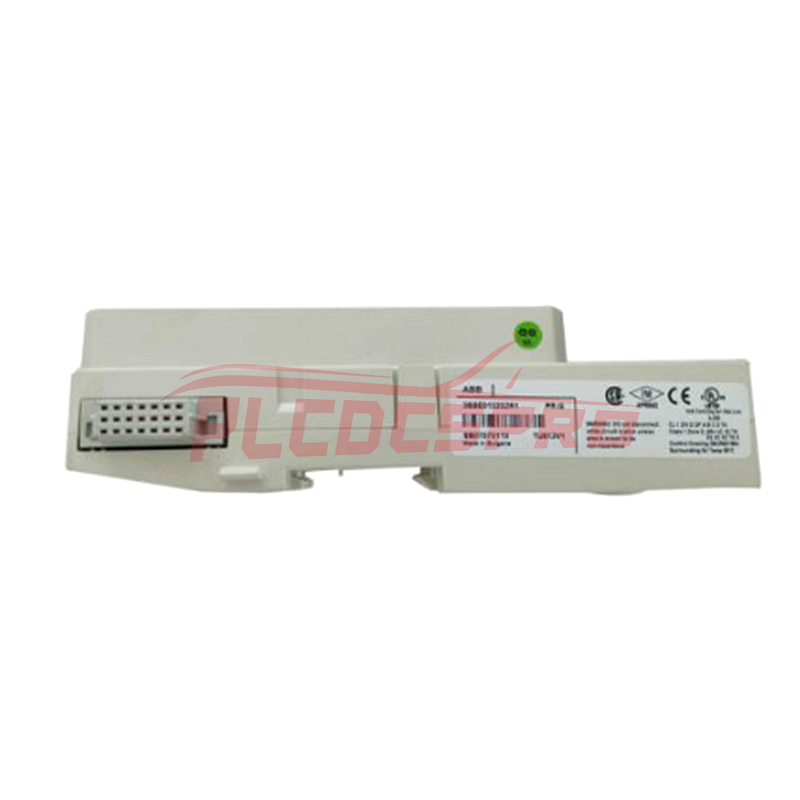

The TU849 is a Module Termination Unit (MTU) designed for the redundant configuration of Optical ModuleBus Modems TB840/TB840A. This passive unit ensures reliable connectivity and power distribution in industrial applications.
General Information
Article Number: 3BSE042560R1
Communication Protocol: ModuleBus
Master or Slave: N/A
Line Redundancy: Yes
Hot Swap: No
Power Input: 24 V d.c (19.2 - 30 V)
Mounting: Vertical or Horizontal
Specifications
Power Consumption: Typical not applicable
ModuleBus Current Distribution:
Maximum 5 V: 1.5 A
24 V: 1.5 A
Mechanical Keys: 36 different combinations (two keys for each position, six positions each)
Acceptable Wire Sizes:
Solid: 0.2 - 2.5 mm²
Stranded: 0.2 - 2.5 mm² (24 - 12 AWG)
Recommended Torque: 0.5 Nm
Rated Insulation Voltage: 50 V
Dielectric Test Voltage: 500 V a.c
Power Dissipation: 2.5 W
Dimensions
Width: 124 mm (4.88 in.)
Height: 186.5 mm (7.34 in.) including latch
Depth: 47 mm (1.85 in.)
Weight: 0.45 kg (0.99 lbs.)
Features and Benefits
Dual Power Supply Connection: Supports individual power connections for redundancy.
Rotary Switch for Cluster Address Setting: Allows easy configuration of cluster addresses (1 to 7).
Mechanical Keying: Prevents incorrect insertion of module types, enhancing system reliability.
Single ModuleBus Connection: Facilitates efficient communication between devices.
Latching Device to DIN Rail: Ensures secure mounting and grounding of the unit, can be locked/unlocked with a screwdriver.
DIN Rail Mounted: Simplifies installation in various orientations (vertical or horizontal).
Comparison with TU848
Termination Unit TU848: Designed for individual power supply connections and redundant I/O.
Termination Unit TU849: Configured for non-redundant I/O while maintaining individual power supply connections.
