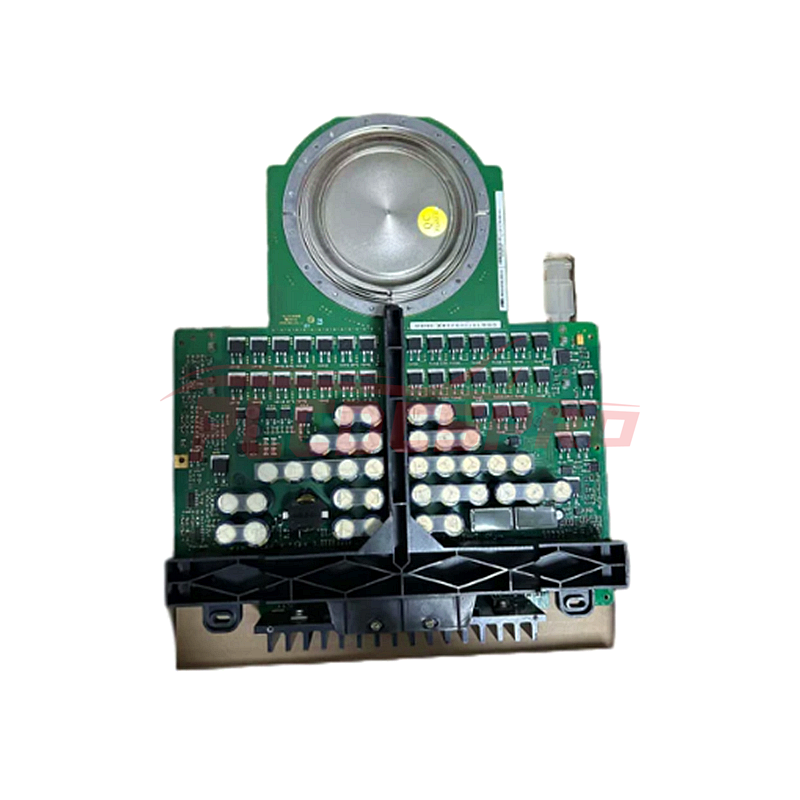

The ABB 3BHB013088R0001 5SHY3545L0010 is an Integrated Gate-Commutated Thyristor (IGCT) module designed to excel in high-power switching applications across various industrial sectors. Its robust design and high-performance capabilities make it particularly suitable for demanding applications such as variable-frequency drives (VFDs), HVDC transmission systems, and FACTS for enhancing power grid stability.
Key Features
High Switching Frequency: Capable of operating at frequencies up to 2 kHz, enabling rapid switching transitions essential for efficient power control.
Low Switching Losses: Minimizes energy dissipation during switching operations, enhancing overall efficiency and reducing heat generation.
High Current Capability: Rated for currents up to 3000 A, allowing robust handling of large electrical loads.
Excellent Thermal Performance: Designed to manage heat effectively, ensuring stable operation across a wide temperature range (-40°C to +125°C).
Robust Design: Built to withstand harsh environmental conditions, ensuring reliability and longevity in demanding industrial settings.
Technical Specifications
Voltage Rating: 4500 V
Current Rating: 3000 A
Turn-off Time: 2.5 μs
Switching Frequency: Up to 2 kHz
Operating Temperature Range: -40°C to +125°C
Applications
Variable-Frequency Drives (VFDs): Enables precise control of AC motor speeds in industrial automation and process control applications.
HVDC Transmission Systems: Used in high-voltage direct current transmission for efficient long-distance power transmission.
Flexible AC Transmission Systems (FACTS): Enhances power grid stability and reliability through advanced control mechanisms.
