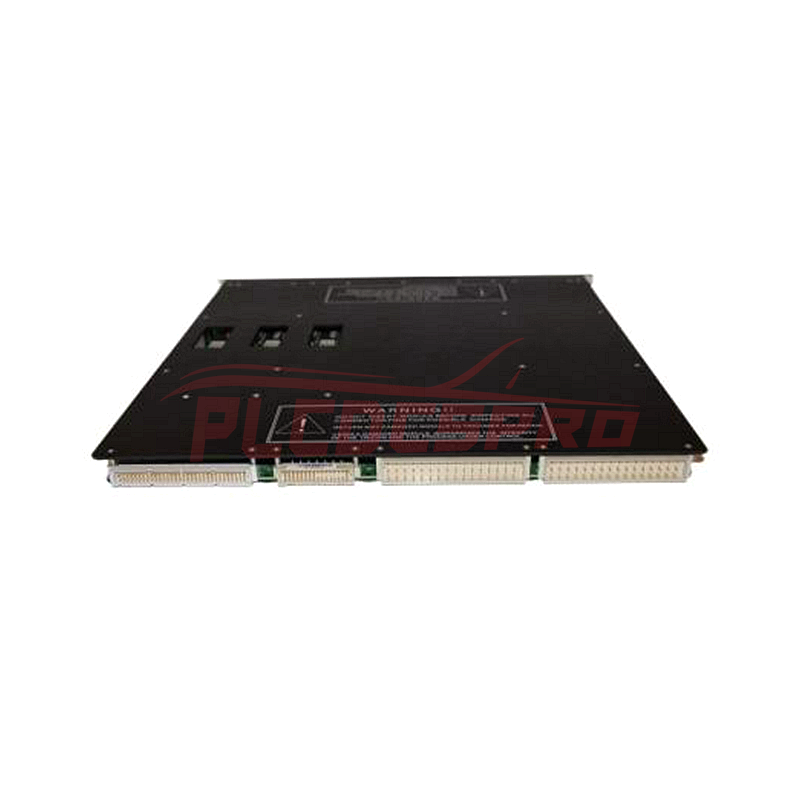

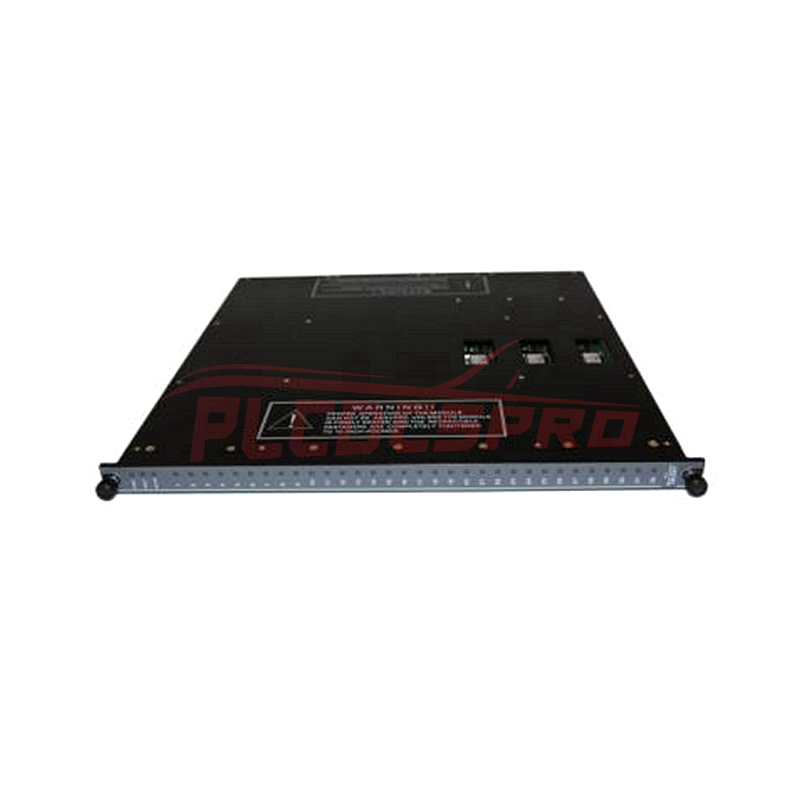

The Triconex 3636T Relay Output Module (ROM) is a non-triplicated module designed for non-critical points that are incompatible with "high-side" solid-state output switches. It is primarily used for applications such as interfacing with annunciator panels. The module receives output signals from the Main Processors, votes on the signals, and then drives 32 individual relays based on the voted data.
Key Features:
Designed for non-critical points
Receives output signals from Main Processors on three channels
Each output has a loopback circuit to verify relay operation independently of load presence
Ongoing diagnostics ensure operational status of the module
Supports hot-spare modules for redundancy
Requires a separate external termination panel (ETP) with a cable interface to the Tricon backplane
Specifications:
Model Number: 3636T
Type: Non-triplicated, Relay Output (RO)
Points: 32, non-commoned
Voltage Range: 125 VAC/VDC, maximum
Current Load: 2A, maximum
Minimum Permissible Load: 10 mA, 5 VDC
Switching Power (Resistive): 2,000 VA, 150 watts maximum
Point Isolation: 1,900 VDC
Fuses: 1 per output (2.5A fast-acting)
Diagnostic Indicators: Output Status, Module Status (PASS, FAULT, ACTIVE)
