This full-height module provides four relay outputs, delivering flexibility and control in various monitoring applications. It can be seamlessly integrated into the 3500/32M setup, offering efficient relay operation for critical systems.

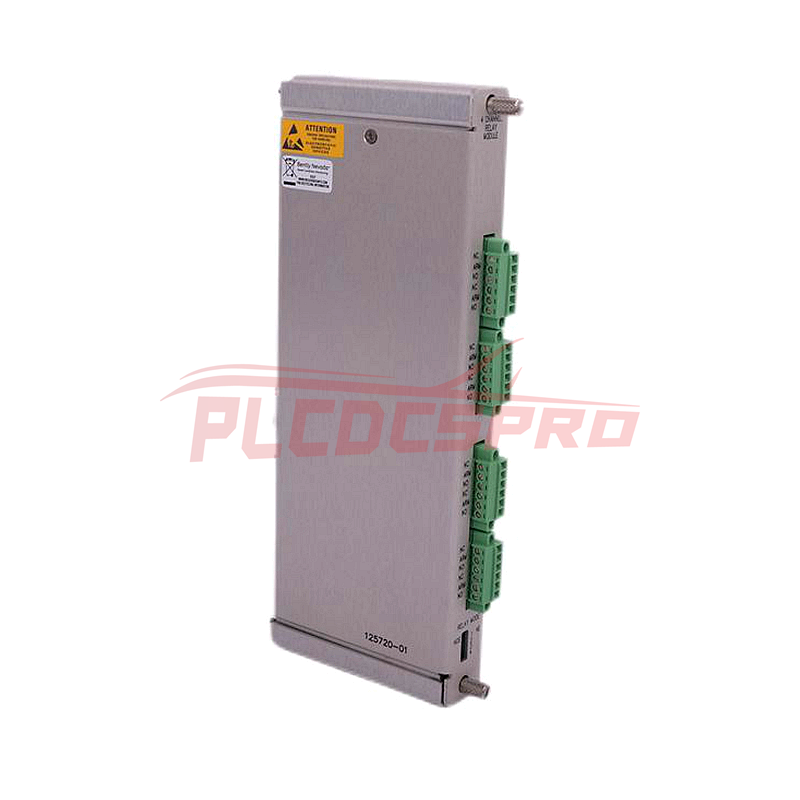

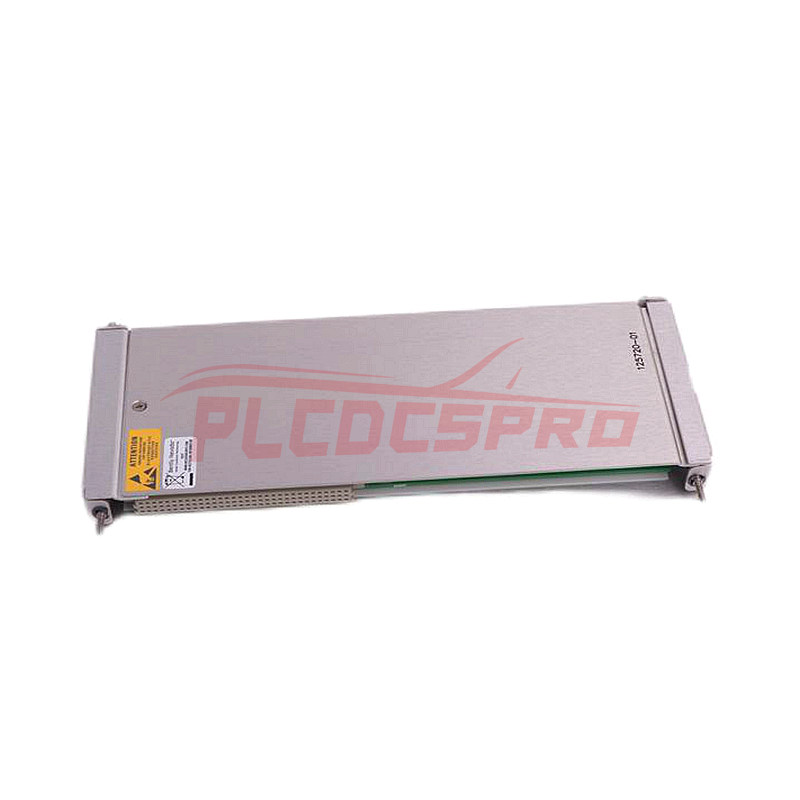

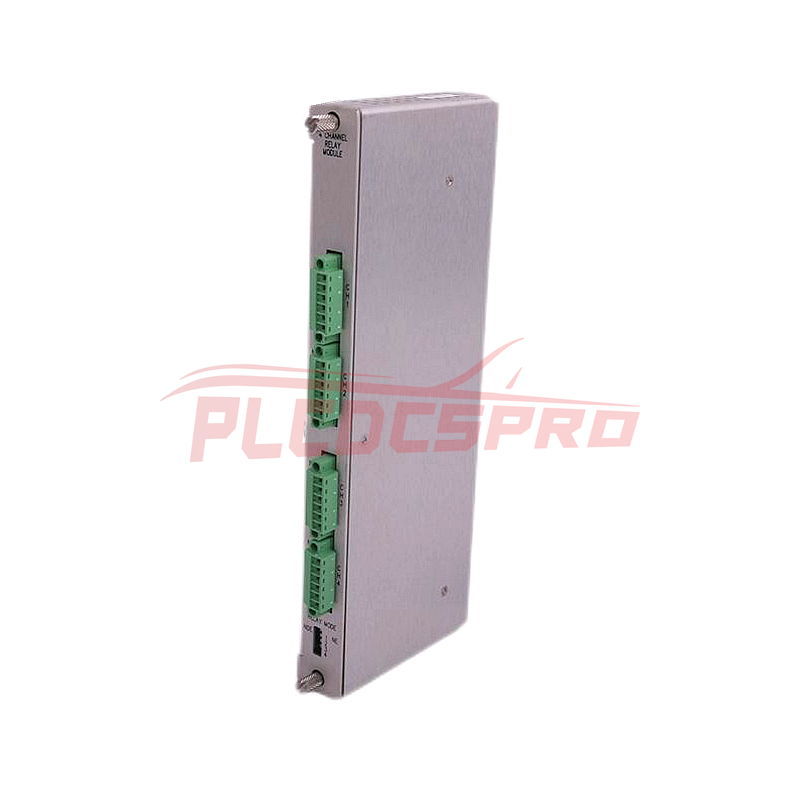

125720-01 Spare 4-Channel Relay Output Module
The 125720-01 Spare 4-Channel Relay Output Module is a component designed for the 3500/32M system, offering reliability and functionality in relay output provision.
Features:
Relay Outputs: The module offers four relay outputs, providing versatility in relay-based applications.
Independent Programming: Each output can be independently programmed to perform voting logic, enhancing customization and adaptability.
Alarm Drive Logic: The relays include Alarm Drive Logic, enabling efficient handling of alarm statuses and logic operations.
Application Flexibility: Programming for Alarm Drive Logic involves AND and OR logic operations, utilizing alarming inputs such as Alert and Danger statuses, Not-OK signals, or individual PPLs from monitor channels.
Software Configuration: The module's Alarm Drive can be programmed to meet specific application requirements using the 3500 Rack Configuration Software.
Configuration Options:
A: Output Module
01: 4-Channel Relay Output Module
B: Agency Approval Option
00: None
01: cNRTLus (Class I, Div 2)
02: ATEX/IECEx/CSA (Class I, Zone 2)
Spares:
149986-02: Spare 4-Channel Relay Control Module
125720-02: Spare 4-Channel Relay Output Module for hazardous area systems and functional safety systems
Additional Components:
Grounding wrist strap (single use)
Connector headers for internal termination, available in 16-position and 6-position configurations
Alternative connector header, push-in-spring type (166M2390, an alternative for PN 00580436)
