Mounting Option: Panel Mount Option for Full-Size Rack
Agency Approval: None
Description:

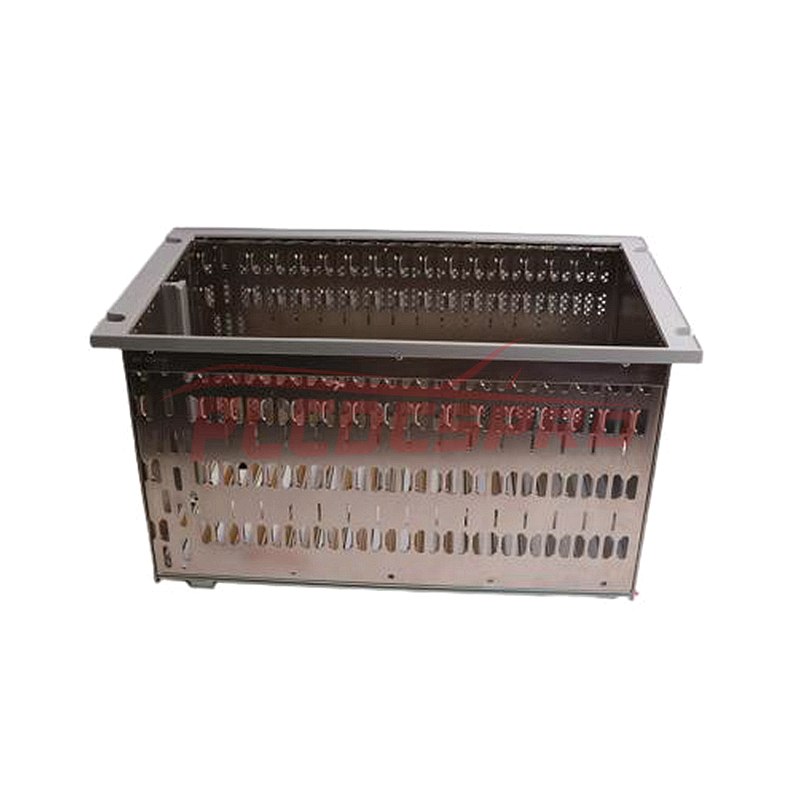

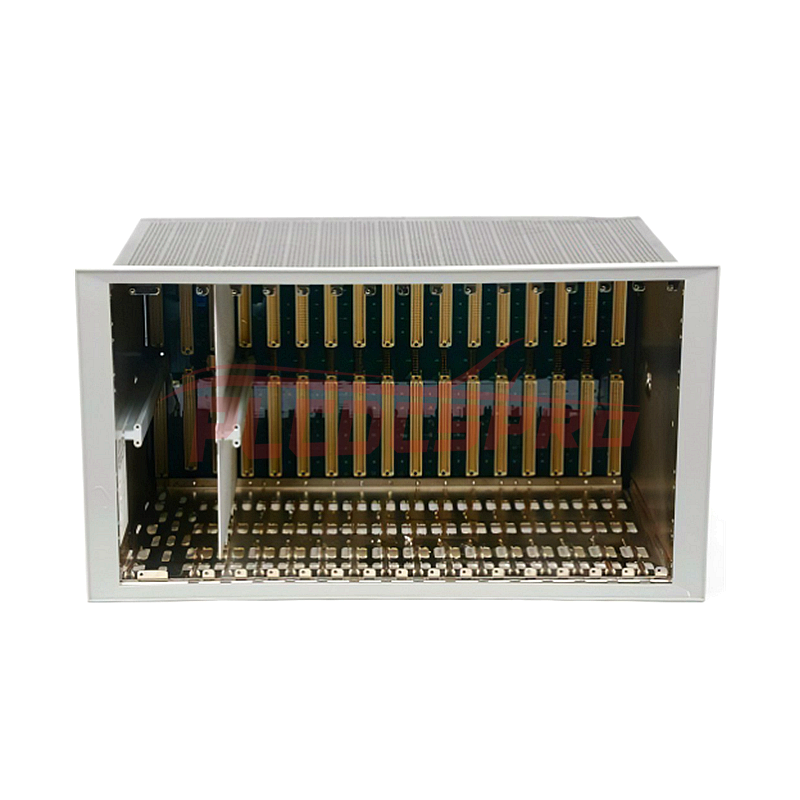

Utilize the 3500/05 rack to mount all 3500 monitor modules and power supplies.
The rack facilitates close proximity of modules, aiding communication, and provides power distribution to each module.
Rack Configuration:
Power supplies and rack interface module must occupy the far-left rack positions.
Remaining 14 rack positions are available for any combination of modules.
Mounting Options:
Panel Mount Option: Mounts to rectangular cut-outs in panels, secured using clamps provided with the rack. Wiring connections and I/O modules accessible from the rear.
04300111 Screws for half-height Module Internal Chassis (qty 3)
Power Supply Blank Cover Kit:
131150-01 Power Supply Blank Front Panel (qty 1, includes screws)
128085-01 Power Supply Input Connector Cover (qty 1)
04310251 Screws for Power Supply Input Cover (qty 2)
Full-height Blank Monitor Cover Kit: Order as 130768-01. Includes:
130944-01 Full-height Monitor Blank Front Panel (qty 1, includes screws)
128031-01 I/O Module Cover (qty 1)
04310251 Screw for I/O Module Cover (qty 2)
Half-height Blank Monitor Cover Kit: 131151-01 Half-height Blank Front Panel Cover (qty 1, includes screws)
Miscellaneous Components:
00561941 TMR/SIM jumper (installed on the 3500 backplane)
144863-01 Adapter Panel, Mini-rack, 19-inch
Documentation:
129766-01 Rack Installation and Maintenance Manual
130432-01 Field Wiring Diagrams
This configuration of the 3500/05 rack is suited for panel mounting, providing accessibility to wiring connections and I/O modules from the rear. It offers flexibility in module placement and efficient power distribution within industrial monitoring systems.
