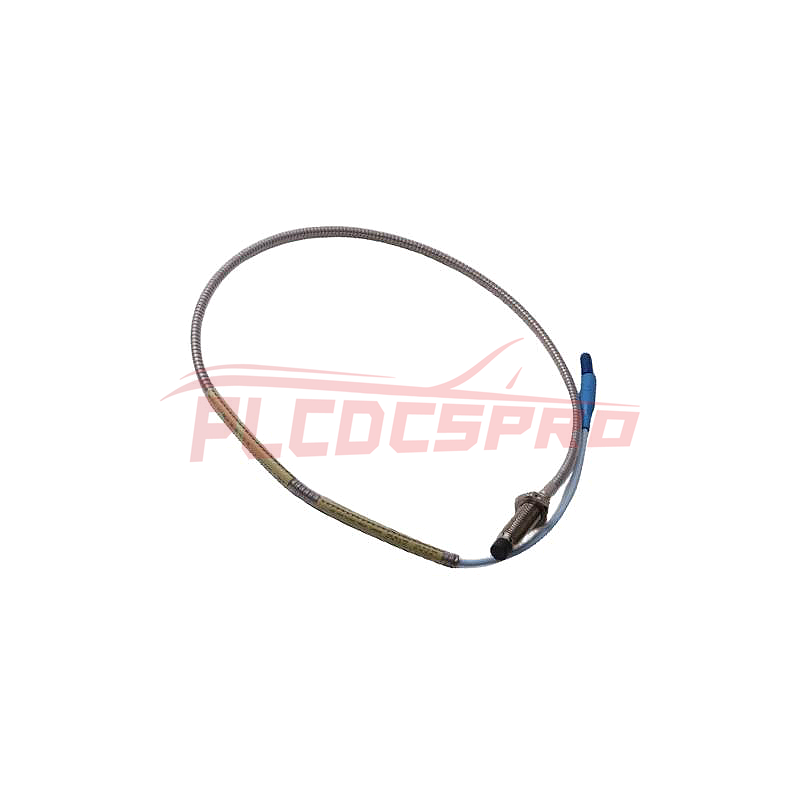

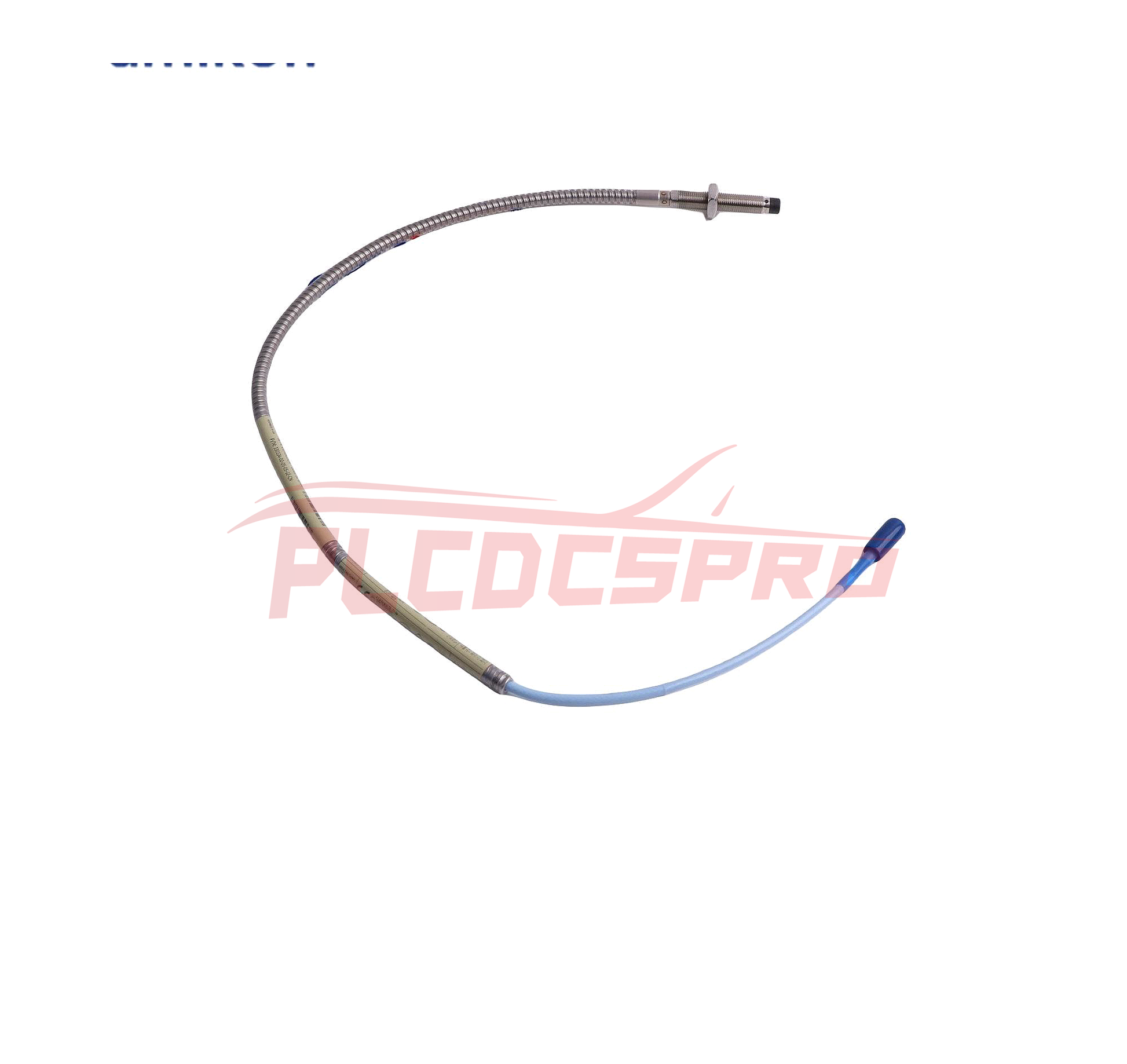

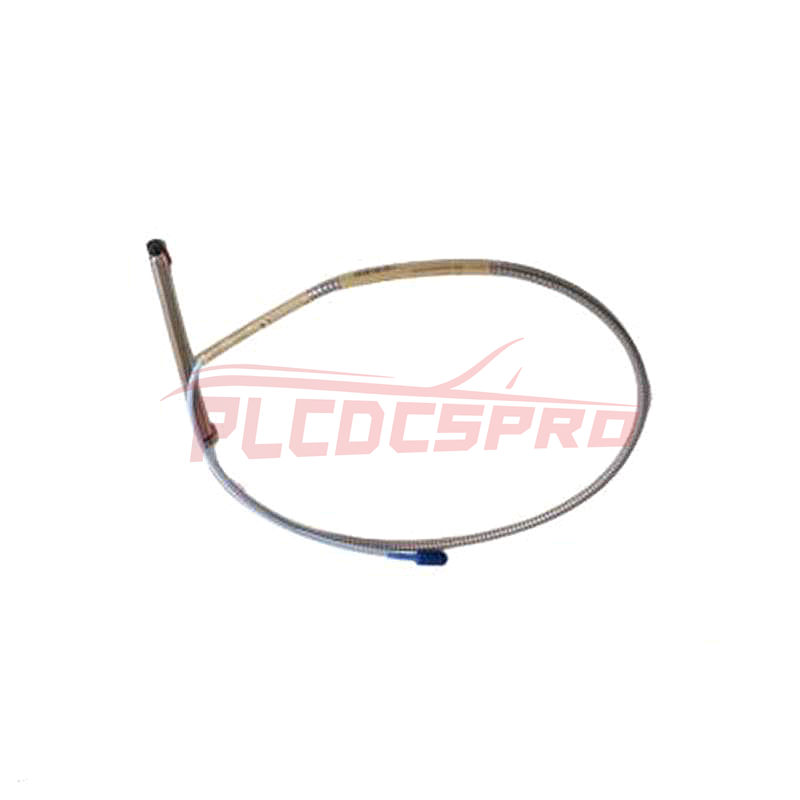

The 3300 XL 8 mm Proximity Transducer System includes one 3300 XL 8 mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. It provides an output voltage proportional to the distance between the probe tip and the conductive surface, measuring both static and dynamic values. Primary applications include vibration and position measurements on fluid-film bearing machines, Keyphasor reference, and speed measurements.
Performance: The system delivers advanced performance in eddy current proximity transducer systems. It complies with the American Petroleum Institute's (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability.
Interchangeability: All components of the 3300 XL 8 mm system are backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This includes compatibility with the 3300 5 mm probe for applications with limited mounting space.
Proximitor Sensor: The 3300 XL Proximitor Sensor features numerous improvements over previous designs.
Part Number: 330104-00-05-10-02-00
AA: Unthreaded Length Option (increments of 10 mm, max 230 mm)
BB: Overall Case Length Option (increments of 10 mm, max 250 mm)
CC: Total Length Option (0.5m, 1.0m, 1.5m, 2.0m, 5.0m, 9.0m)
DD: Connector and Cable-Type Option (various configurations)
Answer 1: PLC DCS Pro Ltd. collaborates with over 50 countries worldwide. As a leading supplier in China, we can provide significant discounts to customers based on market demand.
Question 2: What Is The Warranty Period?
Answer 2: We offer a standard one-year warranty for all new and original items.
Question 3: What Payment Methods Do We Accept?
Answer 3: We accept 100% T/T (Telegraphic Transfer) before shipping. For items with a lead time, a 30% deposit is required in advance, with the remaining 70% balance due before shipping. If you have an agent in China, please contact us for RMB transfer.
Question 4: What Shipping Methods Do We Use?
Answer 4: We primarily utilize carriers such as FedEx, DHL, UPS, BRE, etc. If you have an account with any of these carriers, you can arrange the shipping yourself. Additionally, we offer free shipping to China freight forwarders.
Question 5: What Is Our Delivery Time?
Answer 5: Typically, delivery takes around 1-3 days after receiving the advance payment. For items with a quoted lead time, delivery will occur as per the specified lead time.
Question 6: How Do We Package The Goods?
Answer 6: Our packaging process involves multiple layers of protection. Initially, the product is placed in its original box, sealed with a label. Then, we add a layer of bubble wrap to safeguard against collisions during transportation. Finally, all products are securely packed in sturdy boxes for further protection.
Question 7: How Can Customers Contact Us And Request A Quote?
Answer 7: Customers can inquire via email, WhatsApp, WeChat, Skype, or any preferred communication platform. Simply reach out to us, and we'll promptly provide a quote tailored to your needs.
At PLC DCS Pro Ltd., we are committed to ensuring the quality of our products. Our one-year warranty provides coverage for any defects in material or workmanship, excluding damages caused by deliberate misuse.
🛡️Coverage Details:
This warranty encompasses all instances of product malfunction or failure due to inherent manufacturing flaws, with the exception of intentional damage.
📝Claim Process:
To avail of warranty services, please notify us of any quality-related issues within the warranty period. We may conduct online troubleshooting and examination as needed.
🚚Shipping Assistance:
We understand the importance of prompt service. Therefore, we cover return shipping costs for warranty-related returns within the first month of supply. Within three months of supply, we cover one-way shipping costs for warranty-related returns. After three months, the customer is responsible for shipping costs both ways.
🚫Exclusions:
Unauthorized modifications, repairs, or misuse of the product.
