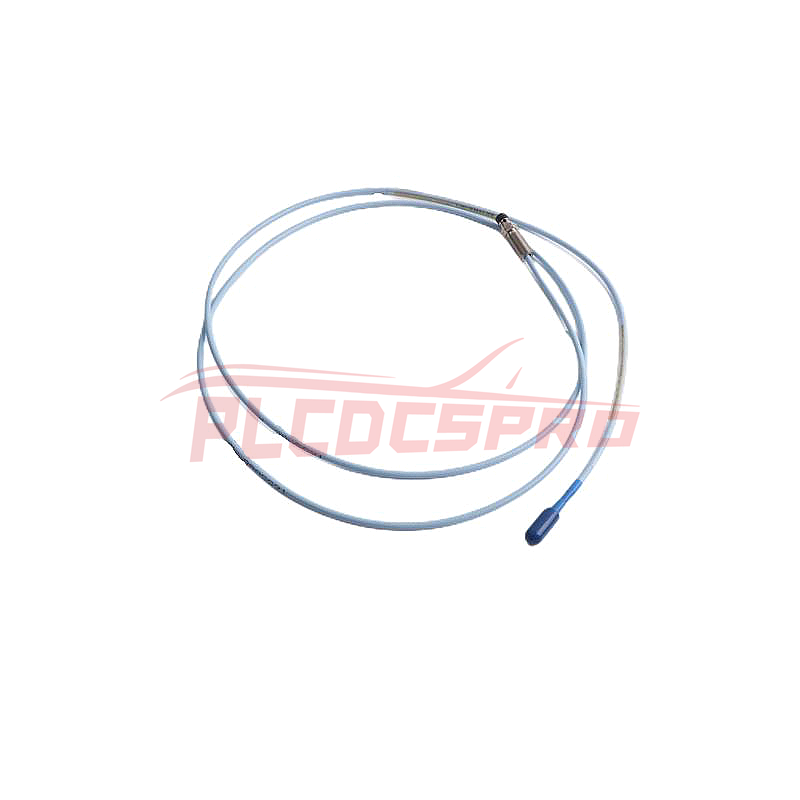

The Bently Nevada 330101-00-16-10-02-00 is a component of the 3300 XL 8 mm Proximity Transducer System. It comprises a 3300 XL 8 mm probe, a 3300 XL extension cable, and a 3300 XL Proximitor Sensor. This system provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, capable of measuring both static (position) and dynamic (vibration) values. Its primary applications include vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Performance:
Offers the most advanced performance in eddy current proximity transducer systems.
Complies fully with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability.
Provides complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for matching or bench calibration of individual components.
Backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components.
Ordering Information:
Probe (Part Number: 330101):
Type: 3300 XL 8 mm Probe
Thread: 3/8-24 UNF thread, without armor
Total Length: 1.0 meter (3.3 feet)
Connector: Miniature coaxial ClickLoc connector with standard cable
Agency Approval: Not required
Customization Options:
Overall Case Length: 1.6 inches
Total Length: 1.0 meter (3.3 feet)
Applications:
Suitable for vibration and position measurements on fluid-film bearing machines.
Ideal for Keyphasor reference and speed measurements.
