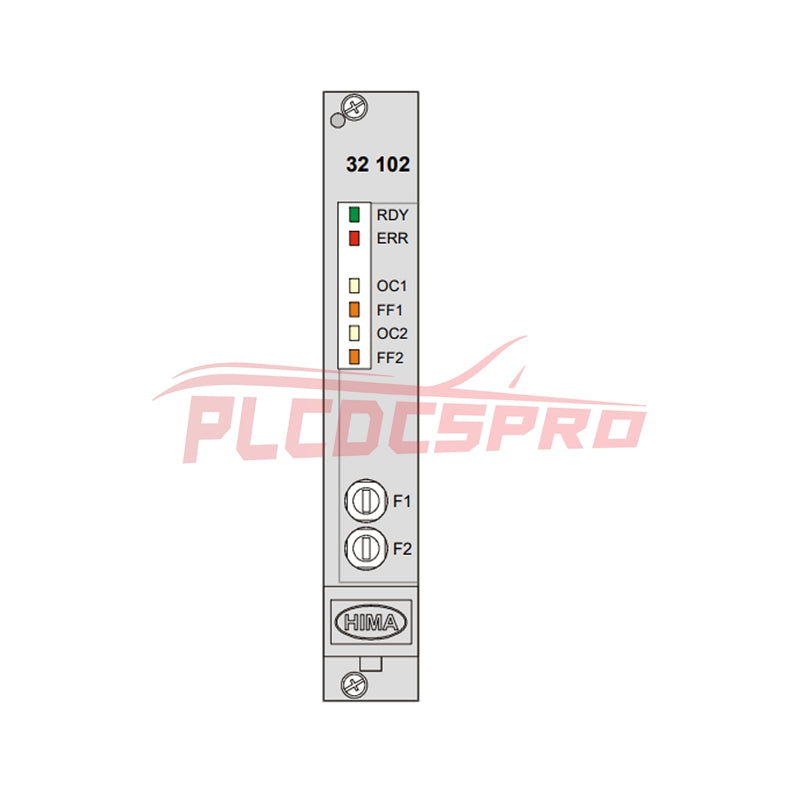

The 32 102 is a 2-Fold Relay Amplifier designed for safety-related applications. This module is TÜV tested according to DIN V 19250 for RC 1...7 and IEC 61508 for SIL 4. It features diverse relays compliant with DIN V VDE 0801 A1, DIN VDE 0116, and EN 298 standards, making it suitable for safety shutdowns, such as cutting off the fuel supply for incinerator plants.
Key Features
Switching Voltage: 110 V DC / 127 V AC
Output Contacts: Each output features a floating NO contact (sealed)
Safety Isolation: Isolates inputs and power supply from output contacts
Relay Monitoring: All functions monitored by a micro-controller
Technical Specifications
Operating Data: 24 V DC / 135 mA
Space Requirement: 3 U high, 4 SU
Switching Time (Contact): Approx. 10 ms
Reset Time (Contact): Approx. 12 ms
Switching Time (Signal): Approx. 3 ms
Reset Time (Signal): Approx. 8 ms
Relay Contact Specifications
Contact Material: AgNi, gold-plated
Switching Current: ≤ 4 A, ≥ 10 mA
Inrush Peak Current: ≤ 12 A for 1 s (non-periodic)
Fusing: 4 A time-lag (delivery state)
Mechanical Life: > 10^7 cycles
Electrical Life: > 2.5 x 10^5 cycles at resistive load and ≤ 0.1 cycles/s
Monitoring and Indication
Malfunctions indicated by ERR; output d28 signals and relay contact z26-d26 opens.
Output z28-b28 connects to a communication module for data transfer to a process control system.
RDY (Ready) shows available power supply voltage (≥ 20 V).
Additional Information
For safety, install the modules in a separate subframe with a protective cover at the rear or use shrink sleeves to cover the pins. The relay amplifier ensures compliance with stringent safety standards, providing reliable performance in industrial applications.
