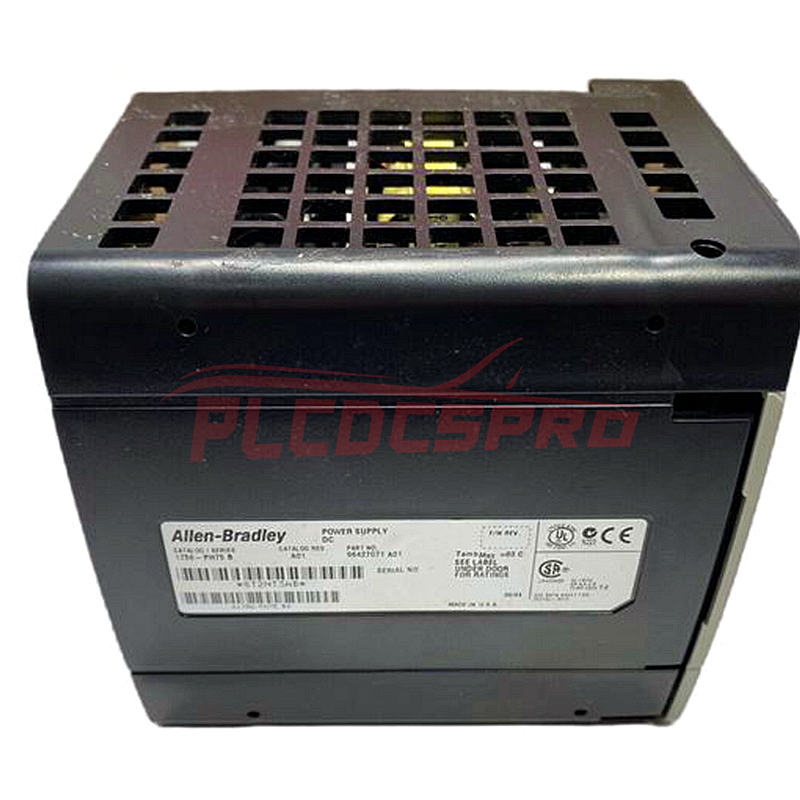

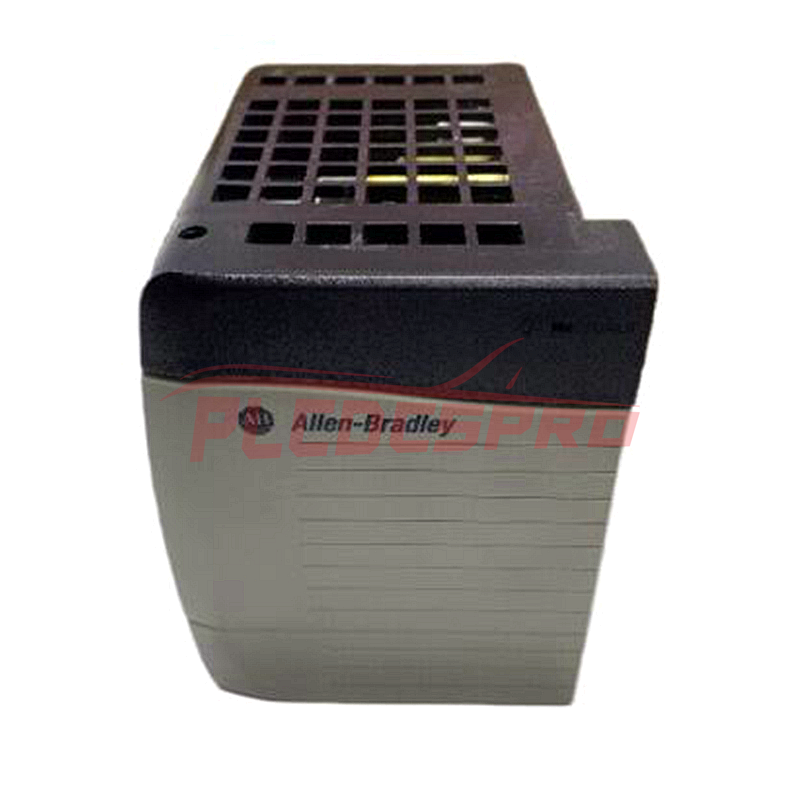

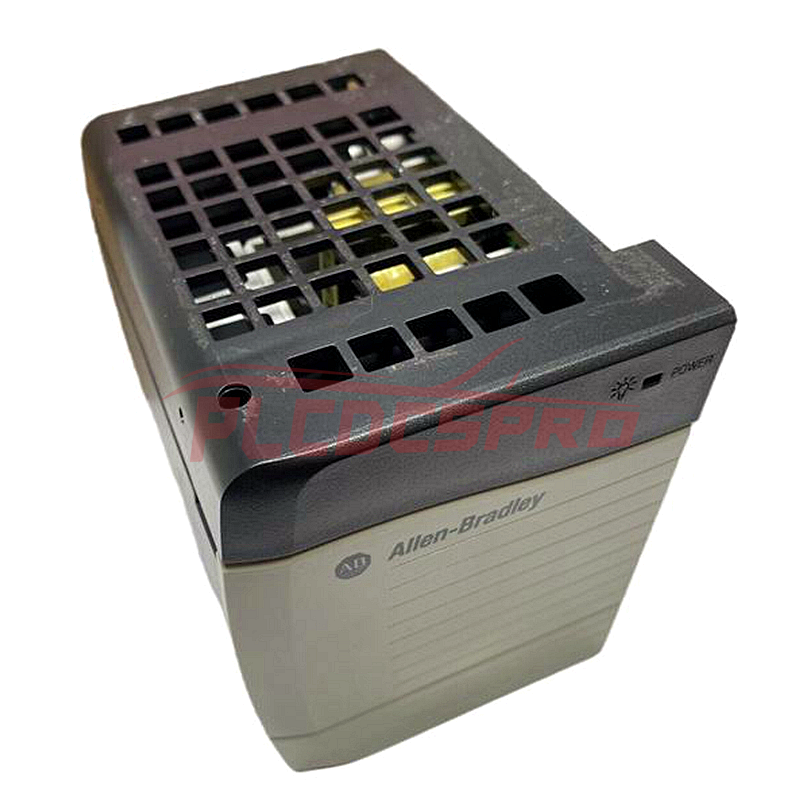

1756-PH75 | Allen-Bradley | DC Power Supply, 90-143V
Sku:1756-PH75
Country Of Origin: USA
Vendor: Allen Bradley
Type: Power Supply
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The Allen-Bradley 1756-PH75 is a ControlLogix standard DC power supply module designed for 125V DC applications. This module is essential for providing reliable power to the ControlLogix chassis.
General Specifications
Model: 1756-PH75
Module Type: Standard DC Power Supply
Dimensions: 5.51 x 4.41 x 5.71 inches (14.0 x 11.2 x 14.5 cm)
Weight: 2.5 pounds (1.1 kg)
Enclosure: None
Electrical Characteristics
Input Voltage: 125 Volts DC
Voltage Range: 90-143 Volts DC
Input Power: 95 Watts
Power Output: 75 Watts at 60°C (140°F)
Surge Current Capacity: 30 Amperes
Current Capacity
Maximum Current Capacity:
1.5 A at 1.2 V
4 A at 3.3 V
13 A at 5.1 V
2.8 A at 24 V DC
Delay and Isolation
Input Delay: Maximum of 50 ms at 90-143 V DC
Isolation Voltage: 250V (continuous); reinforced insulation type tested at 3500V DC for 60 seconds
Installation and Compatibility
Chassis Compatibility: Fits in 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 ControlLogix chassis
Location: Installed at the left side of the chassis
Operating Conditions
Operating Temperature: 0-60°C (32-140°F)
Non-Operating Temperature: -40 to 85°C (-40 to 185°F)
Relative Humidity: 5-95% non-condensing (tested per IEC 60068-2-30)
Operational Vibration: 2 G
Operating Shock: 30 G
Non-Operating Shock: 50 G
Wiring Specifications
Wire Type: 2.5 mm² stranded or solid copper wire
Insulation Thickness: 1.2 mm (3/64 in), rated for 90°C (194°F)
