1756-OB16IEFS | Allen-Bradley ControlLogix DC Output 10-30V
Sku:1756-OB16IEFS
Country Of Origin: USA
Vendor: Allen Bradley
Type: DC Output
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview

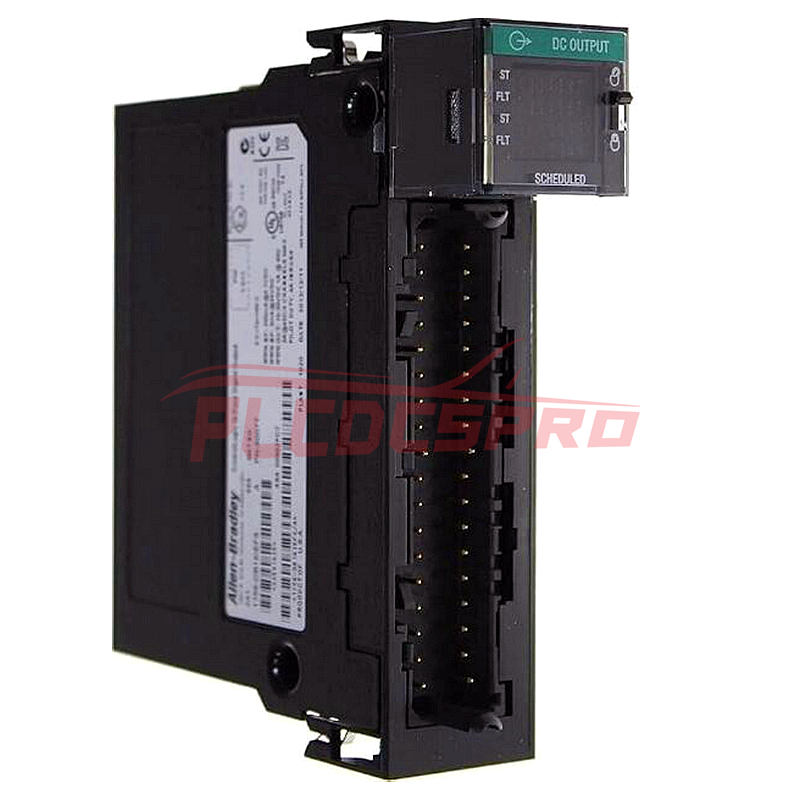

The 1756-OB16IEFS is a ControlLogix DC output module from Rockwell Automation's Allen-Bradley brand. It features 16 high-speed outputs that are individually isolated and electronically fused.
Features
High-Speed Outputs: Each of the 16 outputs operates at high speed, ensuring quick response times.
Remote Chassis Capability: This module works in a remote chassis with the Motion Axis Output Cam (MAOC) instruction.
CIP Sync Compatibility: It acts as a CIP Sync slave device, utilizing CIP Sync for scheduling and timestamps.
Removable Terminal Block: The module requires a removable terminal block housing, such as the 1756-TBCH or 1756-TBS6H.
Technical Specifications
Module Type: DC Output Module
Circuit Type: DC
Input Voltage: 10-30 Volts DC
Operating Voltage Range: 10-30 Volts DC
Maximum Output Current Rating (Point):
2 Amps at 30°C
1 Amp at 60°C
Maximum Output Current Rating (Module):
8 Amps at 30°C
4 Amps at 60°C
Power Dissipation (Max): 3.6 Watts at 60°C
Backplane Current at 5 Volts: 350 milliamps
Backplane Current at 24 Volts: 3 milliamps
Isolation Voltage: 50 Volts Continuous
Performance Metrics
Inrush Pilot Duty: 4 Amps
Current Draw:
320 mA at 5.1 Volts
3 mA at 24 Volts
Backplane Power: 1.7 Watts
Maximum Off-State Leakage Current: < 0.1 mA per point
Surge Current: 4 Amps for 10 ms per point (repeat every 2 seconds)
Maximum On-State Voltage Drop:
0.4 Volts DC at 2 Amps
0.2 Volts DC at 1 Amp
Operational Characteristics
Maximum Current per Point:
2 Amps at 45°C (4 channels max)
1 Amp at 60°C
Maximum Current per Module:
16 Amps at 60°C (1 Amp per channel max)
8 Amps at 45°C (2 Amps per channel max)
Minimum Load Current per Point: 1 mA
Continuous Isolation Voltage: 250 Volts
Delay and PWM Specifications
Unscheduled Output Delay Time:
Nominal: 14 µs
Maximum: 23 µs (off to on and vice versa)
Pulse Width Modulation (PWM) Cycle Time:
Minimum: 1 ms
Maximum: 1 hour
PWM On Time:
Minimum: 200 µs
Maximum: 1 hour
PWM On-Time Accuracy: +/- 20 µs
Configuration Options
Users can configure the following settings:
States in Fault Mode: Options include Hold Last State, On, or Off.
Duration of Fault Mode: Choices are 1, 2, 5, 10 seconds, or Forever.
Final State after Fault Mode Duration: Select On or Off.
States in Program Mode: Options include Hold Last State, On, or Off.
Answer 1: PLC DCS Pro Ltd. collaborates with over 50 countries worldwide. As a leading supplier in China, we can provide significant discounts to customers based on market demand.
Question 2: What Is The Warranty Period?
Answer 2: We offer a standard one-year warranty for all new and original items.
Question 3: What Payment Methods Do We Accept?
Answer 3: We accept 100% T/T (Telegraphic Transfer) before shipping. For items with a lead time, a 30% deposit is required in advance, with the remaining 70% balance due before shipping. If you have an agent in China, please contact us for RMB transfer.
Question 4: What Shipping Methods Do We Use?
Answer 4: We primarily utilize carriers such as FedEx, DHL, UPS, BRE, etc. If you have an account with any of these carriers, you can arrange the shipping yourself. Additionally, we offer free shipping to China freight forwarders.
Question 5: What Is Our Delivery Time?
Answer 5: Typically, delivery takes around 1-3 days after receiving the advance payment. For items with a quoted lead time, delivery will occur as per the specified lead time.
Question 6: How Do We Package The Goods?
Answer 6: Our packaging process involves multiple layers of protection. Initially, the product is placed in its original box, sealed with a label. Then, we add a layer of bubble wrap to safeguard against collisions during transportation. Finally, all products are securely packed in sturdy boxes for further protection.
Question 7: How Can Customers Contact Us And Request A Quote?
Answer 7: Customers can inquire via email, WhatsApp, WeChat, Skype, or any preferred communication platform. Simply reach out to us, and we'll promptly provide a quote tailored to your needs.
Warranty Conditions
At PLC DCS Pro Ltd., we are committed to ensuring the quality of our products. Our one-year warranty provides coverage for any defects in material or workmanship, excluding damages caused by deliberate misuse.
🛡️Coverage Details:
This warranty encompasses all instances of product malfunction or failure due to inherent manufacturing flaws, with the exception of intentional damage.
📝Claim Process:
To avail of warranty services, please notify us of any quality-related issues within the warranty period. We may conduct online troubleshooting and examination as needed.
🚚Shipping Assistance:
We understand the importance of prompt service. Therefore, we cover return shipping costs for warranty-related returns within the first month of supply. Within three months of supply, we cover one-way shipping costs for warranty-related returns. After three months, the customer is responsible for shipping costs both ways.
🚫Exclusions:
Unauthorized modifications, repairs, or misuse of the product.
