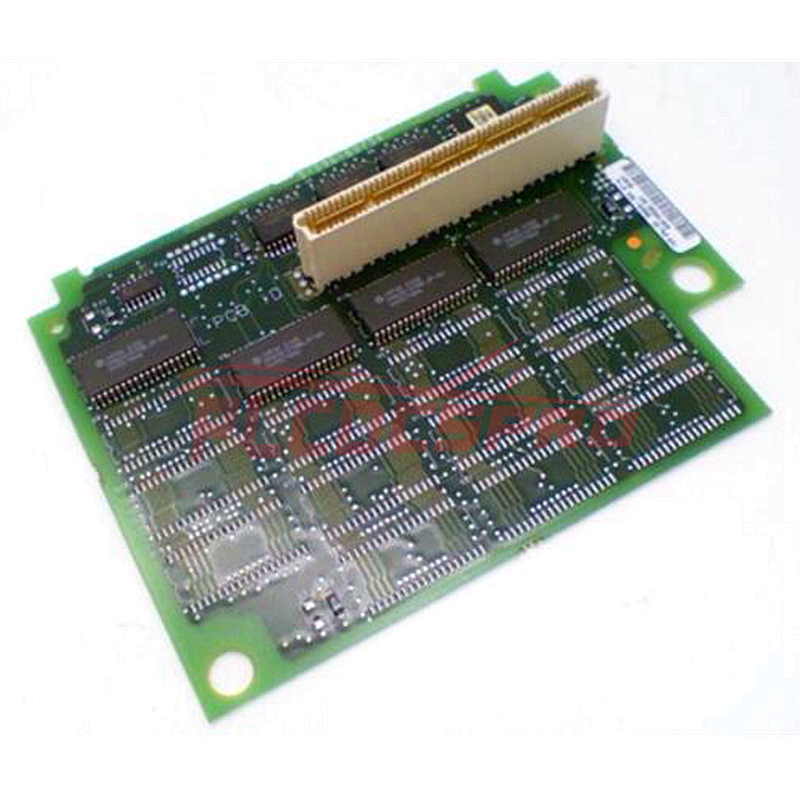

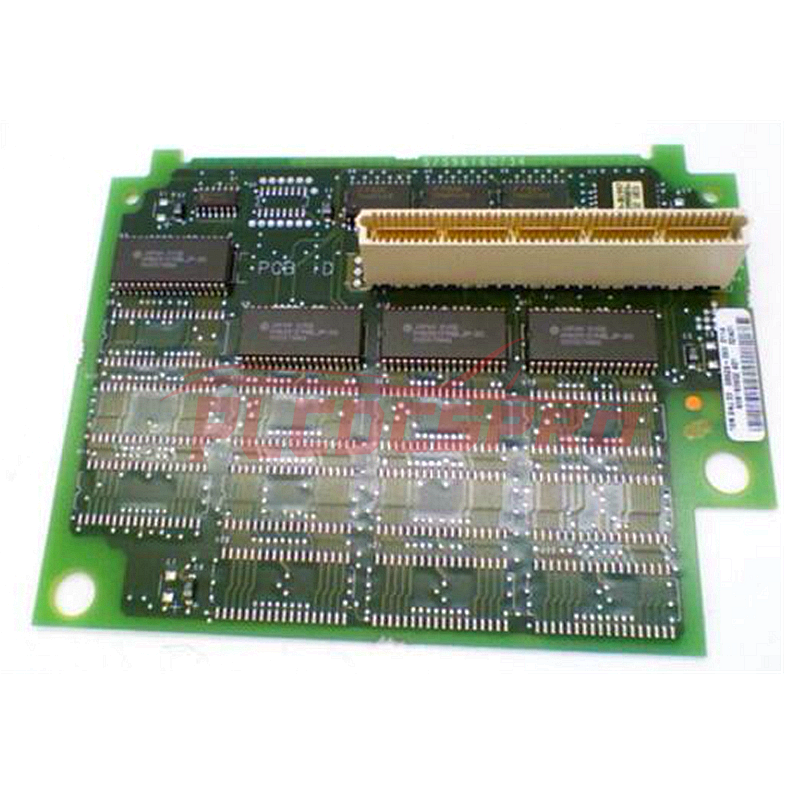

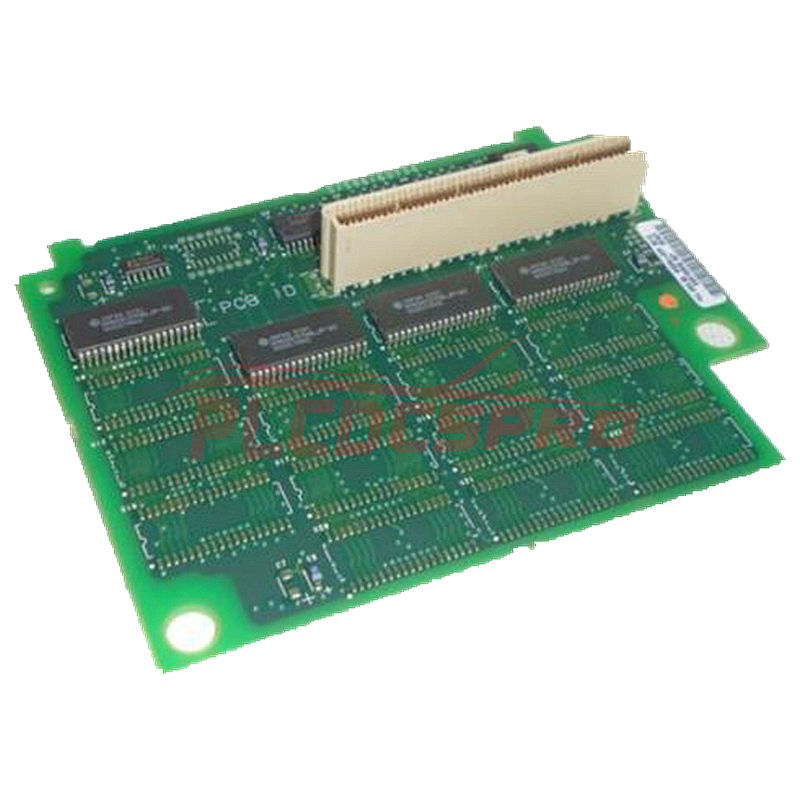

1756-M1 | Allen-Bradley 512KB Expansion Memory for Logix5550 CPUs
Sku:1756-M1
Country Of Origin: USA
Vendor: Allen Bradley
Type: Memory Expansion
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The 1756-M1 is a 512K Memory Expansion Module from Rockwell Automation's Allen-Bradley brand, specifically designed for the ControlLogix series.
Key Features
Memory Capacity: This module offers 512 Kbytes of expansion memory.
Compatibility: It installs exclusively in ControlLogix 5550 controllers, including models 1756-L1, 1756-L1M1, 1756-L1M2, and 1756-L1M3.
Installation Guidelines: Only one memory board can be installed per controller. Use a grounding wrist strap and a #2 Phillips screwdriver during installation.
Technical Specifications
Module Type: 512K Memory Expansion Module
Enclosure Type: None (open-style)
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -40 to 85°C
Relative Humidity: 5% to 95% (non-condensing)
Vibration Tolerance: 2 g from 10 to 500 Hz
Operating Shock: 30 g
Non-Operating Shock: 50 g
Electrical Characteristics
Backplane Current (5 Volts): 760 milliamps
Backplane Current (24 Volts): 2.5 milliamps
Power Dissipation: 6.2 Watts
Current Draw (5.1 Volts): 1.2 amps
Thermal Dissipation: 21.2 BTU/hour
Isolation Voltage: 50 Volts Continuous
SERCOS and Emission Specifications
SERCOS Data Rate: 4 or 8 Megabits per second
Emission Class: Group 1, Class A
ESD Immunity: 6 kV for indirect contact discharge, 8 kV for air discharge
Radiated RF Immunity
The 1756-M1 demonstrates strong radiated RF immunity:
10V/m: 200 Hz, 50% Pulse, 100% AM at 1890 MHz
10V/m: 200 Hz, 50% Pulse, 100% AM at 900 MHz
10V/m: 1 kHz sine-wave, 80% AM from 80 to 2000 MHz
