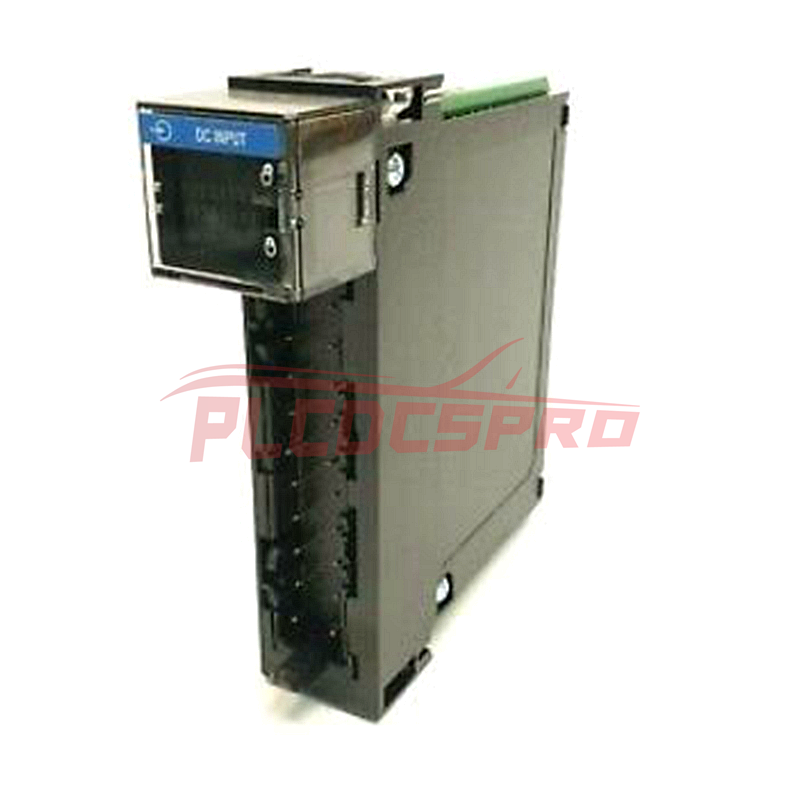

1756-IG16 | Allen Bradley Digital Input 16-P, 5V DC TTL (Low True)
Sku:1756-IG16
Country Of Origin: USA
Vendor: Allen Bradley
Type: Digital Input
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The 1756-IG16 is a Digital DC Input Module from Rockwell Automation's Allen-Bradley ControlLogix series, designed for use with TTL (Transistor-Transistor Logic) inputs.
Key Features
Module Type: Digital DC Input Module
Inputs: 16 points (9 per common)
Input Voltage: 5 Volts DC with TTL source
Operating Voltage Range: 4.5 to 5.5 Volts DC
Input Delay Time: 0.25 milliseconds plus selected filter time
Electrical Specifications
Maximum Input Current (Off-State): 4.1 milliamps
Power Dissipation (Max): 1.4 Watts at 60°C
Backplane Current:
@ 5 Volts: 110 milliamps
@ 24 Volts: 2 milliamps
Nominal Input Current: 3.7 milliamps at 5 Volts DC
Maximum Input Voltage (Off-State): 2 Volts
Operating Conditions
Input Voltage Category: TTL (Low = True)
Maximum Ripple: 50 millivolts P-P
Thermal Dissipation: 4.8 BTU/hour at 60°C
Connection Requirements
To connect the 1756-IG16 to a ControlLogix chassis, use a removable terminal block (RTB):
