Product description
Overview
The 1747-SDN is a DeviceNet communication scanner module designed for use with the SLC 500 series controllers. It facilitates communication with DeviceNet-capable devices, supporting various I/O configurations and pass-through capabilities.
Key Specifications
Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Part Number/Catalog No.: 1747-SDN
Series: SLC 500
Module Type: DeviceNet Scanner Module
Module Width: Single Slot
Compatible Controllers: SLC 5/02 or later
Compatible Processors: SLC 5/02, 5/03, 5/04, 5/05
Communication
Communication Port: One (1) DeviceNet
Data Transfer Speed: 125 Kbps
Indicators:
Mod/Net Status: Red/Green
I/O Status: Red/Green
Pass-Through Supported: Yes
Power and Current
Backplane Current (5V): 500 mA
Backplane Current (24V): 90 mA
Environmental Specifications
Operating Temperature: 0 to 55 °C (32 to 131 °F)
Storage Temperature: -40 to 85 °C (-40 to 185 °F)
Vibration: Tested 5 g @ 10-500 Hz per IEC 68-2-6
Operating Shock: 30 g peak acceleration, 11 (+1) ms pulse width
Physical Characteristics
Weight: 1 lb (0.45 kg)
Chassis Module Slots: 30
Mounting Options: DIN Rail; Panel Mounting
Linear Plug: 1787-PLUG10R
Features
Supports up to 63 nodes at 125 Kbps baud rate.
Operates in slave mode, handling Polled, Strobe, Change-of-State, and Cyclic I/O configurations.
Acts as a bridge in pass-through configuration, allowing connection to a separate DeviceNet network.

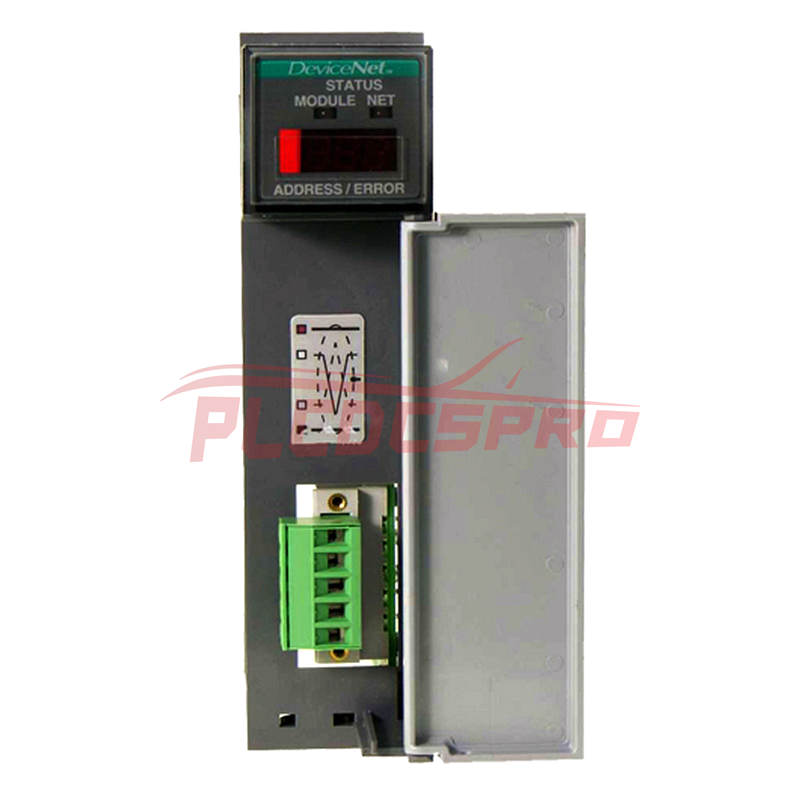

Front panel includes LED status indicators for module and network status.
LCD display for module address and error indication.
Provides 30V circuit isolation tested at 500V AC for 60 seconds between DeviceNet and backplane.
