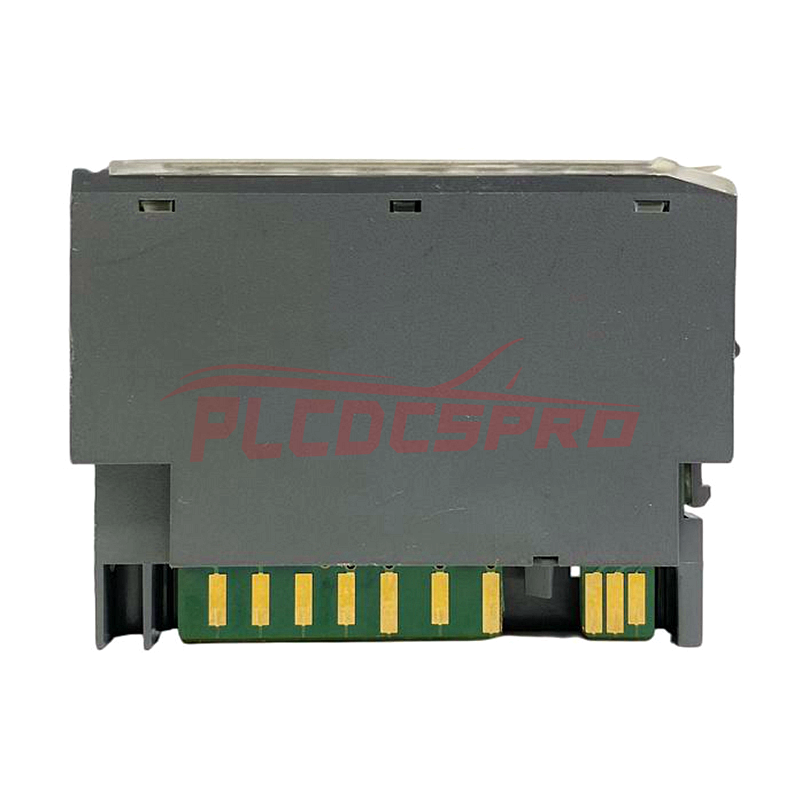

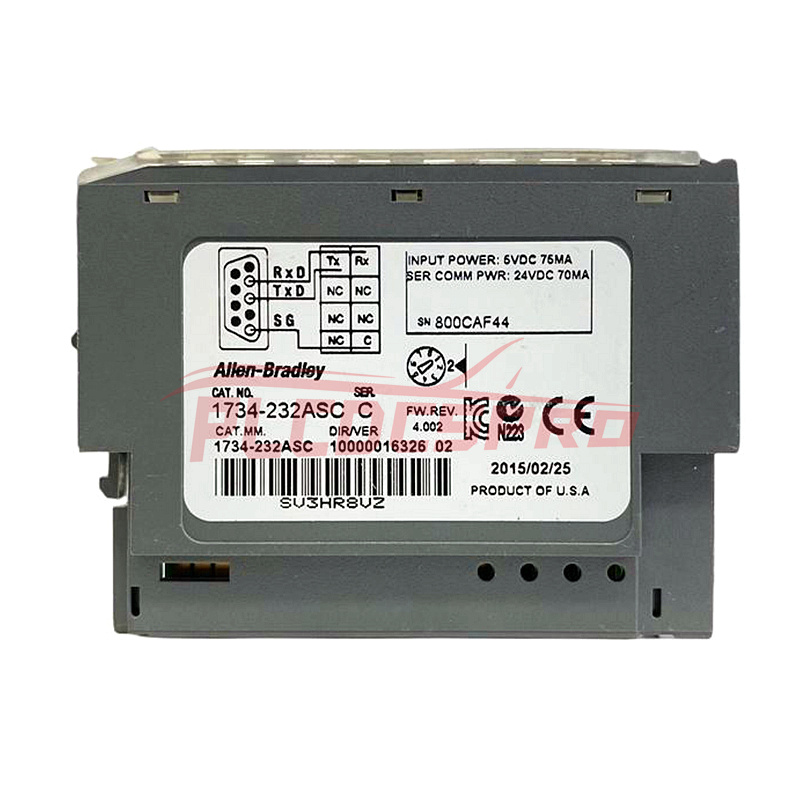

1734-232ASC | Allen Bradley Point I/O RS-232 ASCII Interface Module
Sku:1734-232ASC
Country Of Origin: USA
Vendor: Allen Bradley
Type: Communication Interface
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The 1734-232ASC is a POINT I/O ASCII communication module designed for interfacing with ASCII devices, such as barcode readers, in industrial applications. It is particularly useful in automated sorting and quality assurance systems.
Key Specifications
Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Part Number: 1734-232ASC
Series: POINT I/O
Module Type: ASCII Communication Module
Product Family: 1734 POINT I/O
Electrical Specifications
Supply Voltage: 24 VDC nominal
External DC Voltage Range: 10-28.8 VDC
Supply Current: 15 mA @ 24 VDC
POINTBus Current Draw: 75 mA max @ 5 VDC
Power Dissipation: 0.75 W maximum @ 28.8 VDC
Thermal Dissipation: 2.5 BTU/hr maximum @ 28.8 VDC
Communication Specifications
Supported Protocol: ASCII
Number of Application Ports: 1 Full-Duplex Port
Communication Speeds: 9600, 1200, 2400, 4800, 19.2k, and 38.4k bps
Serial Character Framing:
7N2, 7E1, 7O1
8N1, 8N2, 8E1, 8O1
7E2, 7O2
Performance Specifications
Maximum Receive Character Count: 128 characters
Receive Record Start Mode Settings: No, exclude, include start delimiter
Receive Start Delimiter: ASCII character
Receive Record End Mode Settings: No, exclude, include end delimiter
Receive End Delimiter: ASCII character

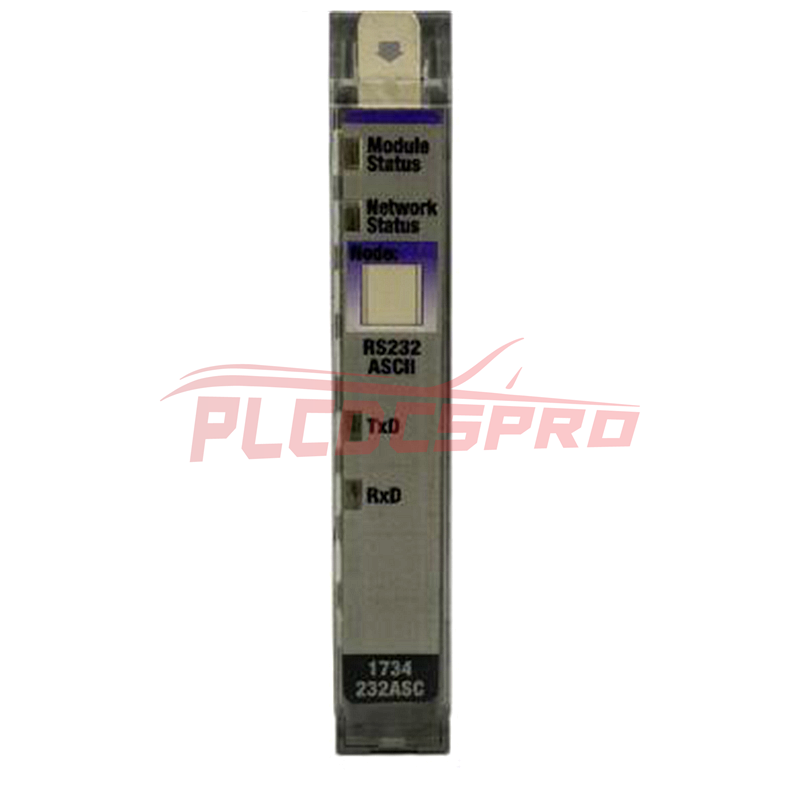

Indicators
Module Status Indicator: 1 Green/Red (logic side)
Network Status Indicator: 1 Green/Red (logic side)
TXD Status Indicator: 1 Green (logic side)
RXD Status Indicator: 1 Green (logic side)
Physical Specifications
Dimensions: 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in)
Weight: Approx. 0.0325 kg (1.15 oz)
Enclosure Type Rating: None (open-style)
Keyswitch Position: 2
Module Location: Compatible with 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS wiring base assembly
Environmental Specifications
Operating Temperature Range: -20 to 55 °C (-4 to 131 °F)
Storage Temperature Range: -40 to 85 °C (-40 to 185 °F)
Relative Humidity: 5% to 95% (non-condensing)
Features and Benefits
Installation Flexibility: Compact design for limited panel space; DIN rail mountable; vertical or horizontal mounting options.
Advanced Diagnostics: Comprehensive diagnostics and configurable features for easy application running.
Auto Device Replacement (ADR): Allows adding I/O modules and network interfaces without system changes.
Removal and Insertion Under Power (RIUP): Enables replacements without powering down the machine.
Communication Compatibility: Supports DeviceNet interfaces, EtherNet/IP, and PROFIBUS DP adapters, with DeviceLogix technology for seamless integration.
Short-Circuit Protection: Output point status indication for protection against short circuits.
