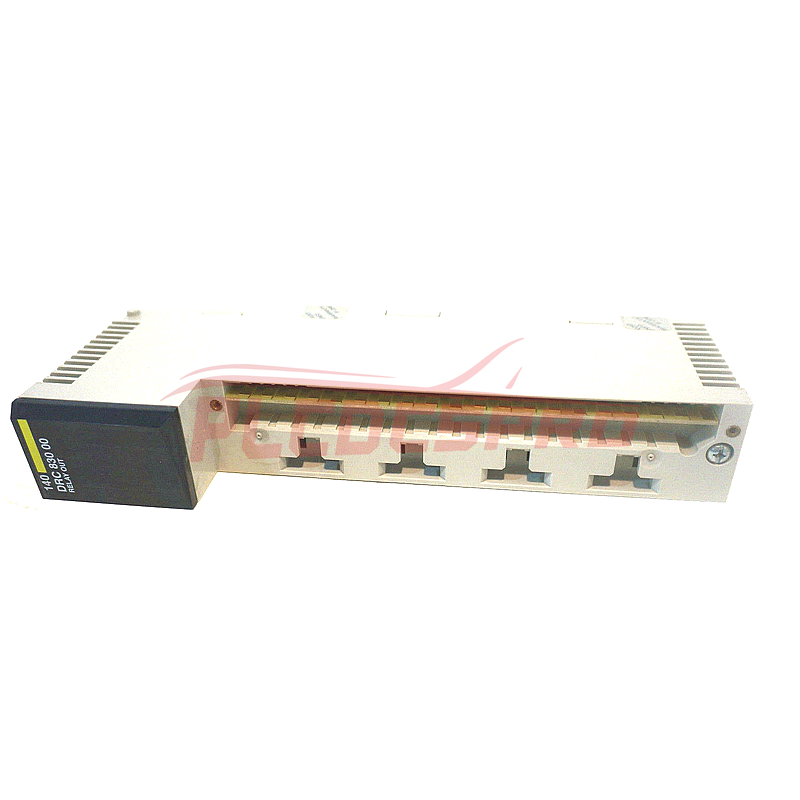

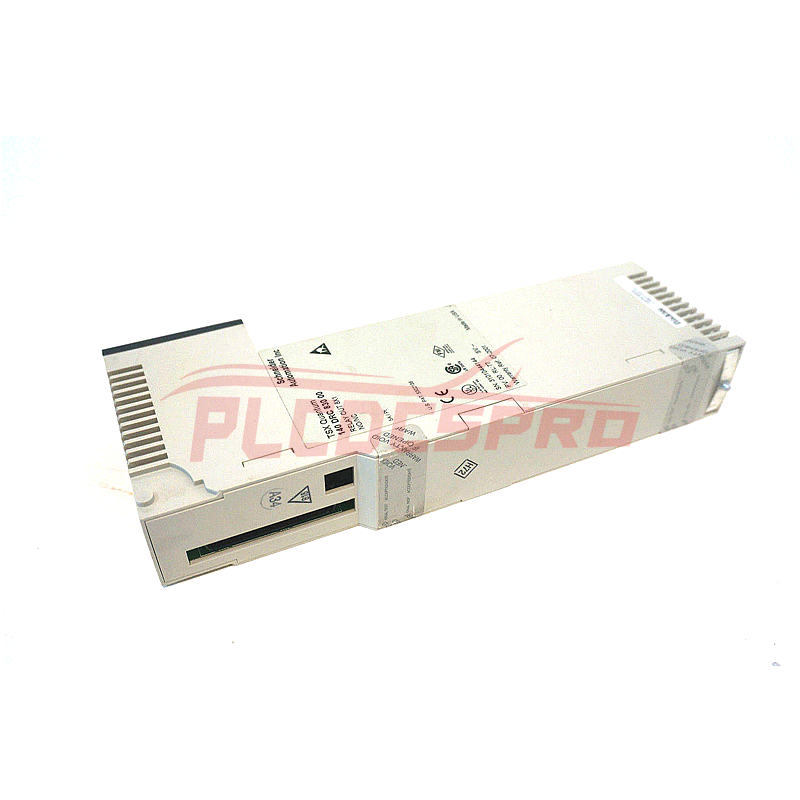

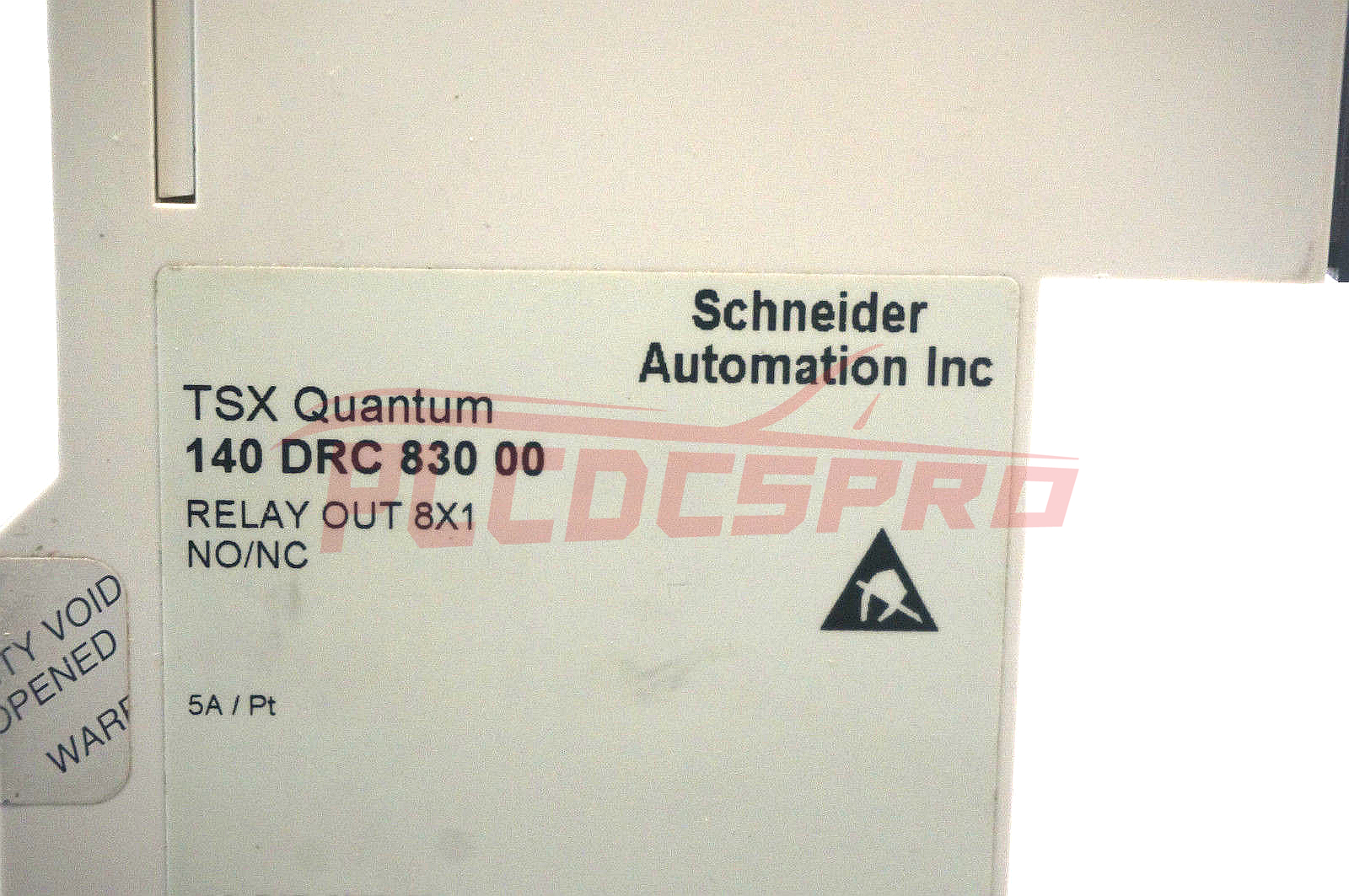

140DRC83000 | Schneider Electric Relay Discrete Output Module

Product Information

• Part Number: 140DRC83000
• Manufacturer: Schneider Electric
• Type: I/O Modules
• Model #: 140-DRC-830-00
• Warranty: 2 Years
• Module Format: Standard
• Product or Component Type: Relay discrete output module
• Discrete Output Number: 8
• Contacts Type and Composition: 1 NO/NC
• Contact Form: Form C
• Discrete Output Voltage:
  • 20...250 V AC
  • 30...150 V DC
  • 5...30 V DC
• Addressing Requirement: 0.5 output word
• Maximum Load Current:
  • 100 mA 30...50 V DC L/R = 10 ms
  • 2 A 250/30 V AC/DC tungsten 1/4 hp cos phi = 0.4
  • 3 A 250/30 V AC/DC
  • 300 mA 30...50 V DC resistive
  • 5 A 250/30 V AC/DC resistive at 60 °C
• Surge Current: <= 20 A for 10 ms capacitive
• Switching Frequency:
  • 30 Hz resistive
  • F = 0.5/I²L inductive
• Switching Capacity in VA: 1250 VA resistive
• Response Time on Input Opening:
  • <= 10 ms at state 0 to state 1
  • <= 20 ms at state 1 to state 0
• Mechanical Durability: 10,000,000 cycles
• Electrical Durability: 100,000 cycles:
  • 100 mA 30...150 V DC L/R = 10 ms
  • 100,000 cycles 30...150 V DC interposing relay
  • 100,000 cycles 300 mA 30...150 V DC resistive
  • 100,000 cycles 5 A 30 V DC resistive
  • 200,000 cycles 5 A 250 V AC resistive
  • 50,000 cycles 500 mA 30...150 V DC resistive
• Output Overvoltage Protection: Internal by varistor, 275 V
• Isolation Between Channels: 1780 Vrms AC for 1 minute, 2500 V DC
• Isolation Between Channels and Bus: 1780 Vrms AC for 1 minute, 2500 V DC for 1 minute
• Power Dissipation: 2.75 W + (0.5 x the number of points on)
• Marking: CE
• Local Signalling:
  • 1 LED green bus communication is present (Active)
  • 1 LED red external fault detected (F)
  • 8 LEDs green input status
• Bus Current Requirement: 560 mA

Overview

Part Number 140DRC83000: Power and Versatility in Control

Schneider Electric presents the 140DRC83000, a robust and versatile I/O module designed to meet the demanding needs of industrial control systems. With its reliable performance and comprehensive features, this module is a testament to Schneider Electric's commitment to excellence in automation technology.

Model # 140-DRC-830-00

This module boasts a standard format, ensuring seamless integration into existing control setups while providing flexibility for future expansions. Its compact design belies its powerful capabilities, making it suitable for various industry applications.

Relay Discrete Output Module

As a relay discrete output module, the 140DRC83000 offers eight discrete output channels, each featuring 1 NO/NC contact composition in a Form C contact form. This configuration enables precise control and monitoring of connected devices, enhancing operational efficiency and safety.

Voltage Flexibility

This module is equipped to handle varying voltage requirements. It supports discrete output voltages ranging from 20 to 250 V AC, 30 to 150 V DC, and 5 to 30 V DC. Such versatility ensures compatibility with diverse equipment and systems, facilitating seamless integration and operation.

Addressing and Load Management

Efficient addressing requirements, with just 0.5 output word, streamline setup and configuration processes, reducing installation time and complexity. Moreover, the module boasts impressive load management capabilities, with a maximum load current of 100 mA to 5 A across different voltage ranges, catering to various devices and machinery.

Reliability and Durability

Designed for longevity and reliability, the 140DRC83000 exhibits exceptional mechanical and electrical durability. It is capable of enduring rigorous industrial environments. With mechanical durability rated at 10 million cycles and electrical durability at 100,000 cycles, this module ensures consistent performance over extended periods.

Advanced Protection and Isolation

Advanced features such as surge current protection, overvoltage protection, and robust isolation between channels and bus safeguard the module and connected equipment against potential damage or malfunction, enhancing system resilience and longevity.

Efficient Communication and Monitoring

Integrated LEDs provide convenient local signaling, indicating bus communication status, fault detection, and individual input statuses. This enables quick diagnostics and troubleshooting for enhanced operational efficiency.
