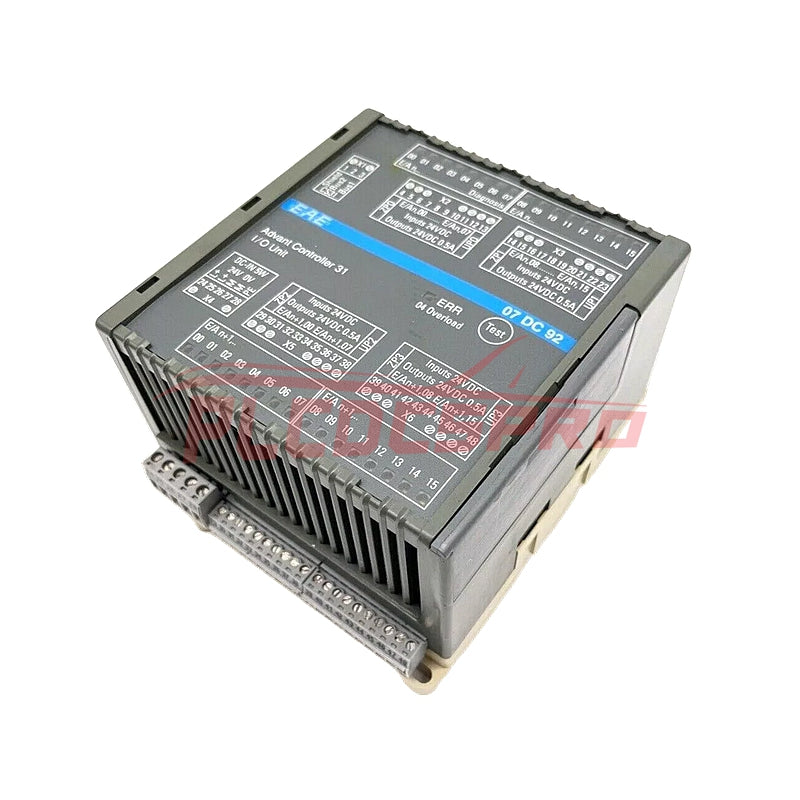

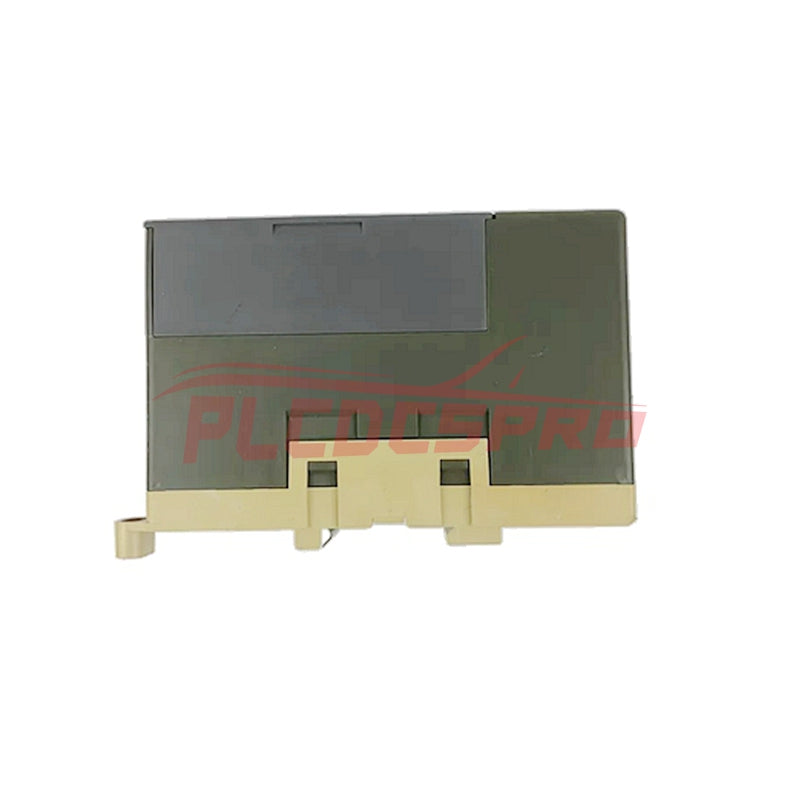

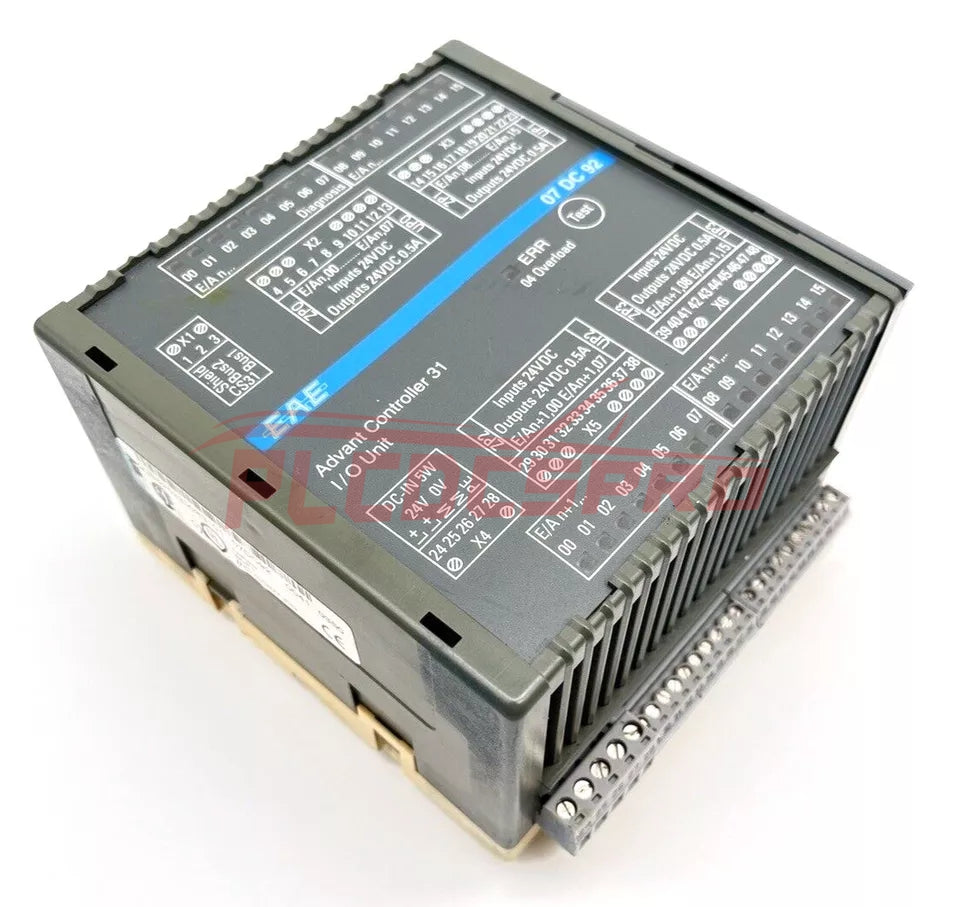

07 DC 92 | 07DC92 | ABB | Digital Input/Output Module
Sku:07 DC 92
Country Of Origin: Sweden
Vendor: ABB
Type: I/O Module
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The ABB 07 DC 92 is a Digital Input/Output Module designed for reliable operation in various industrial applications. With a robust temperature range and versatile configurations, it provides essential functionality for digital I/O requirements.
Technical Specifications
General Information
Model: 07 DC 92
Manufacturer: ABB
Rated Supply Voltage: 24 V DC
Permissible Temperature Range: 0...55 °C
Max. Current Consumption (without load): 0.15 A
Max. Rated Load for Supply Terminals: 4.0 A
Power and Dissipation
Max. Power Dissipation (outputs without load): 5 W
Max. Power Dissipation (outputs under load): 10 W
Protection Against Reversed Polarity: Yes
Conductor Cross Section
Power Supply: Max. 2.5 mm²
CS31 System Bus: Max. 2.5 mm²
Signal Terminals: Max. 1.5 mm²
Supply for I/O Groups: Max. 1.5 mm²
Inputs/Outputs Configuration
Number of Configurable Inputs/Outputs: 32
Electrical Isolation: CS31 system bus from the rest of the unit; group from group
I/O Channel Technical Data
Digital Inputs
Number of Channels: 32
Input Delay: Typ. 7 ms
Reference Potential for Inputs: ZP0, ZP1, ZP2, ZP3
Signalization: One yellow LED per channel
Input Signal Voltage: 24 V DC
Input Current per Channel:
Input Voltage = +24 V: Typ. 7.0 mA
Input Voltage = +5 V: > 0.2 mA
Input Voltage = +13 V: > 2.0 mA
Input Voltage = +30 V: < 9.0 mA
Digital Outputs
Number of Channels: 32 transistor outputs
Nominal Output Current: 500 mA at L+ = 24 V
Max. Total Current for Each Group: 4 A
Leakage Current at 0 Signal: < 0.5 mA
Switching Frequency for Inductive Load: Max. 0.5 Hz
Switching Frequency for Lamp Load: Max. 11 Hz at max. 5 W
Connection and Mechanical Data
Connection to CS31 System Bus
Interface Standard: EIA RS-485
Galvanic Separation: From supply voltage, inputs, and outputs
Conductor Cross Section for 3-pole Connector: Max. 2.5 mm²
