07 DC 91 | 07DC91 | Digital Input/Output Module | ABB
Sku:07 DC 91
Country Of Origin: Sweden
Vendor: ABB
Type: I/O Module
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview

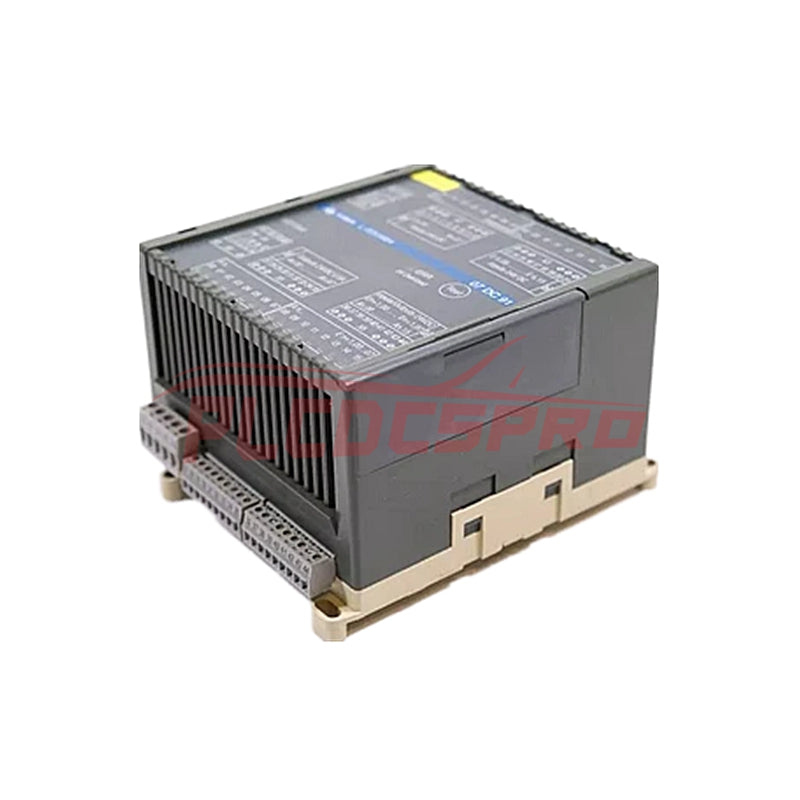

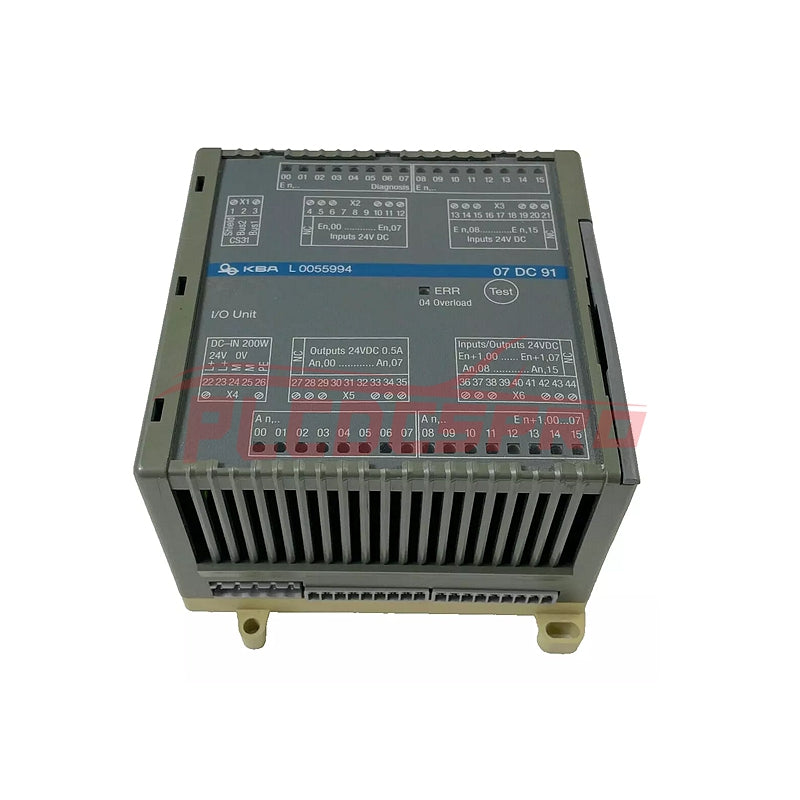

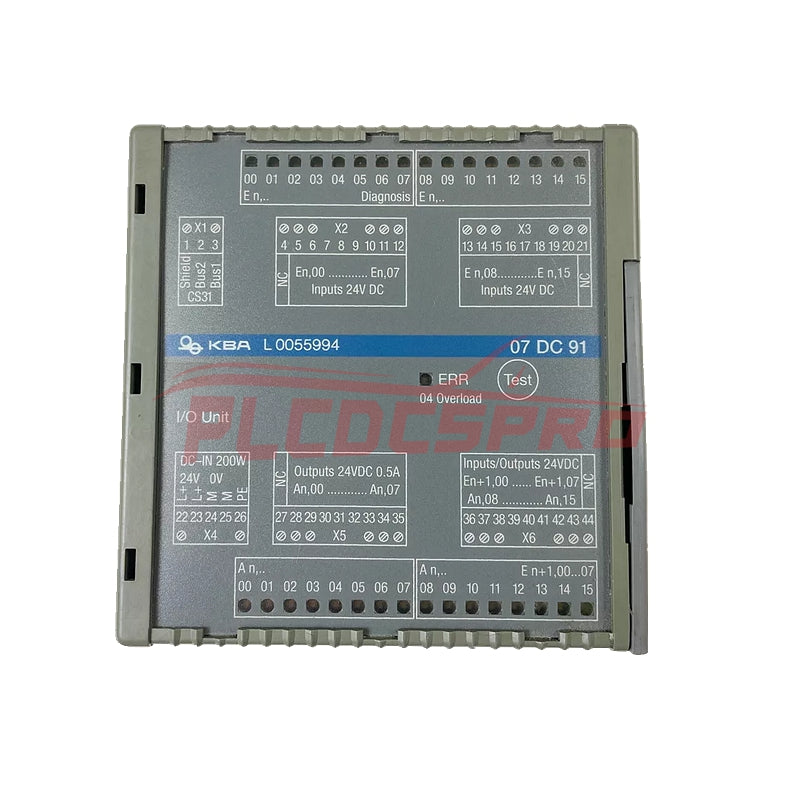

07 DC 91 is a Digital Input/Output Module from ABB designed for efficient integration into automation systems. It operates within a permissible temperature range of 0 to 55 °C, making it suitable for various industrial environments. This module features 16 binary inputs and 8 binary transistor outputs, allowing for robust communication and control in automation applications.
Features
Temperature Range: 0 to 55 °C
Supply Voltage: 24 V DC
Power Consumption: Max. 0.15 A without load
Inputs and Outputs:
16 binary inputs
8 binary transistor outputs
8 configurable inputs/outputs
Interface: 1 CS31 system bus interface
Diagnostics: 33 LEDs for operation and error messages
Technical Specifications
General Specifications
Rated Supply Voltage: 24 V DC
Rated Signal Voltage: 24 V DC
Max. Current Consumption (without load): 0.15 A
Max. Rated Load for Supply Terminals: 4.0 A
Max. Power Dissipation (outputs without load): 5 W
Max. Power Dissipation (outputs under load): 10 W
Protection Against Reversed Polarity: Yes
Conductor Cross Section
Power Input: Max. 2.5 mm²
CS31 System Bus: Max. 2.5 mm²
Signal Terminals: Max. 1.5 mm²
Digital Inputs
Number of Channels: 16
Input Delay: Typ. 7 ms
Input Signal Voltage: 24 V DC
Input Current per Channel:
+24 V: Typ. 7.0 mA
+5 V: > 1.0 mA
+13 V: > 2.0 mA
+30 V: < 9.0 mA
Signalization: One green LED per channel
Digital Outputs
Number of Channels: 8
Nominal Output Current: 500 mA at L+ = 24 V
Max Output Current: 4 A total per group
Leakage Current at 0 Signal: < 0.5 mA
Signalization: One yellow LED for each channel
Configurable Inputs and Outputs
Number of Channels: 8
Input Signal Voltage: 24 V DC
Input Current per Channel: Refer to digital inputs
Dimensions & Weight
Mounting: To DIN rail according to DIN EN 50022-35
