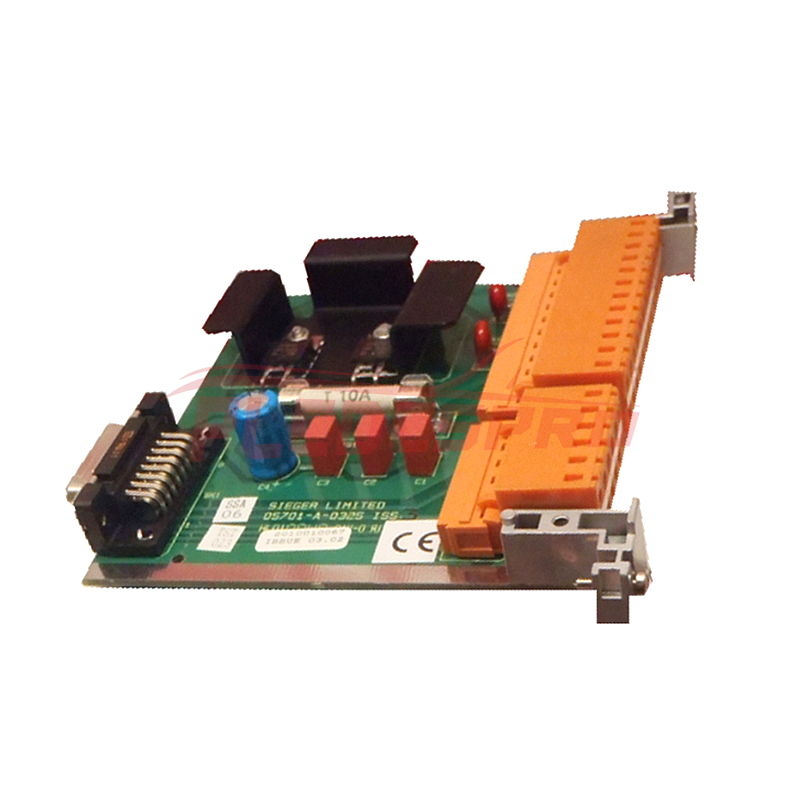

The Honeywell 05701-A-0325 DC Input Card is a crucial component designed to provide power distribution within a sub-rack system from an external nominal 24V DC power supply. It ensures efficient power management and protection for various cards connected through the Engineering Card and backplane.
Key Features
Power Distribution: Distributes DC power from an external 24V DC source to the sub-rack cards via the Engineering Card and backplane.
Fuse Protection: Includes a fuse for overcurrent protection, ensuring safety and reliability.
Terminal Block (TB1): Features a two-part terminal block for easy removal of the card without disconnecting wires.
Power Management: Recommends using the Quad Relay Interface Card for systems with more than eight 5704 Catalytic Cards to manage backplane current effectively.
Backup Power: Supports optional connection of a standby battery for backup power, enhancing system reliability.
Isolation: Uses diodes to isolate PSU and AUX connections, preventing interference between circuits.
Protection: Provides RFI filtering and reverse polarity protection to safeguard against electrical faults.
Technical Specifications
Power Input: External nominal 24V DC
Power Output: Distributed to sub-rack cards via Engineering Card and backplane
